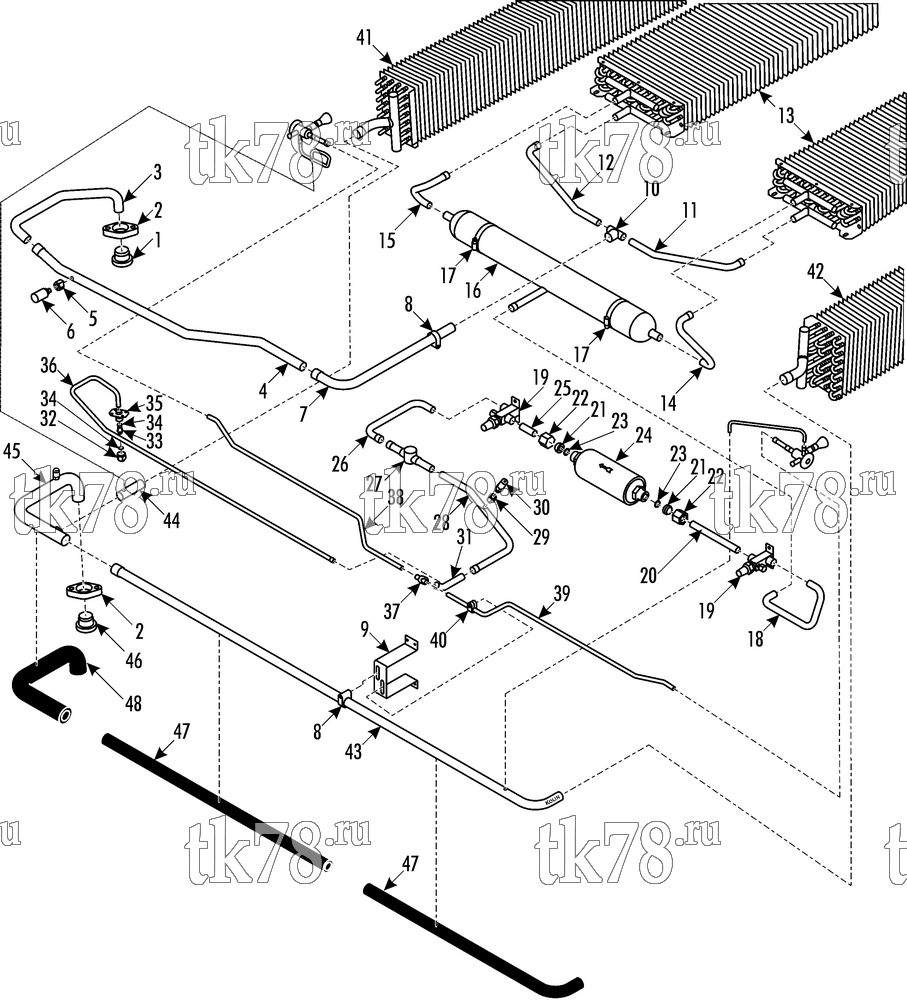

Установкa Thermo King ATHENIA S805 Iveco схема TUBE COOLING – 237E5
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-9369 | ADAPTER - inlet | 1 | |
| 2 | 55-9186 | FLANGE | 2 | |
| 55-5427 | SCREW - flange | 4 | ||
| 3 | 61-4780 | TUBE - to condenser | 1 | |
| 4 | 61-4782 | TUBE - to condenser | 1 | |
| 5 | 66-4553 | FITTING - saddle | 1 | |
| 6 | 41-3831 | SWITCH - hpco | 1 | |
| 7 | 61-3323 | TUBE - to condenser | 1 | |
| 8 | 55-7013 | CLAMP - tube | 2 | |
| 55-7027 | SCREW - clamp | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7373 | NUT - captive | 1 | ||
| 55-6997 | NUT - captive | 1 | ||
| 9 | 92-5673 | HOLDER-TUBE | 1 | |
| 55-5130 | RIVET - holder | A/R | ||
| 10 | 55-9229 | TEE (5/8 x 5/8 x 7/8) | 1 | |
| 11 | 61-3038 | TUBE | 1 | |
| 12 | 61-3039 | TUBE | 1 | |
| 13 | NSS | CONDENSER - standard (see 199C9) | 1 | |
| 14 | 61-3040 | TUBE - to tank | 1 | |
| 15 | 61-3041 | TUBE - to tank | 1 | |
| 16 | 67-2026 | TANK - receiver | 1 | |
| 17 | 55-2688 | CLAMP - tank | 2 | |
| 18 | 61-3554 | TUBE - to filter | 1 | |
| 19 | 66-2104 | VALVE - shut-off | 2 | |
| 55-6994 | SCREW - valve | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 51-290 | NUT - captive | 2 | ||
| 55-6997 | NUT - captive | 2 | ||
| 20 | 61-3555 | TUBE - to filter | 1 | |
| 21 | 55-6356 | SHOULDER | 2 | |
| 22 | 55-7675 | NUT - shoulder | 2 | |
| 23 | 33-672 | O-RING | 2 | |
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 24 | 66-9352 | FILTER - drier | 1 | |
| 66-9352 OEM | Фильтр-осушитель | 6 350 ₽ |
|
|
| 25 | 66-9979 | ASSY - Tube & nut | 1 | |
| 66-9913 | TUBE - to indicator | 1 | ||
| 55-7675 | NUT - shoulder | 1 | ||
| 26 | 61-3556 | TUBE - to indicator | 1 | |
| 27 | 66-9856 | INDICATOR - liquid (sight glass) | 1 | |
| 28 | 61-3557 | TUBE - to evaporator | 1 | |
| 29 | 99-3060 | FITTING - saddle | 1 | |
| 30 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 31 | 61-3558 | TUBE | 1 | |
| 32 | 92-121 | NUT | 1 | |
| 33 | 92-120 | INSERT - plug | 1 | |
| 34 | 33-1461 | O-RING | 2 | |
| 35 | 92-6609 | FITTING - assembly | 1 | |
| 55-5130 | RIVET - fitting | A/R | ||
| 36 | 61-4783 | TUBE - to evaporator | 1 | |
| 37 | 55-7142 | TEE (3/8 X 3/8 X 5/8) | 1 | |
| 38 | 61-3568 | TUBE - to evaporator | 1 | |
| 39 | 61-3567 | TUBE - to evaporator | 1 | |
| 40 | 55-6388 | CLAMP- tube | 1 | |
| 55-8464 | SCREW - clamp | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 55-6997 | NUT - captive | 1 | ||
| 41 | 67-2446 | COIL - evaporator/heater #1 (see 237D3) | 1 | |
| 67-2449 | COIL - evaporator #1 (see 237D2) | 1 | ||
| 42 | 67-2447 | COIL - evaporator/heater #2 (see 237D3) | 1 | |
| 67-2448 | COIL - evaporator #2 (see 237D2) | 1 | ||
| 43 | 61-4777 | TUBE - to compressor | 1 | |
| 44 | 61-4778 | TUBE - to compressor | 1 | |
| 45 | 61-4776 | TUBE - to compressor | 1 | |
| 61-2059 | VALVE - rework | 1 | ||
| 46 | 51-374 | ADAPTER (1 1/8")" | 1 | |
| 47 | 91-3542 | TUBE - rubber | A/R | |
| 48 | 92-2015 | TUBE - rubber | A/R |
