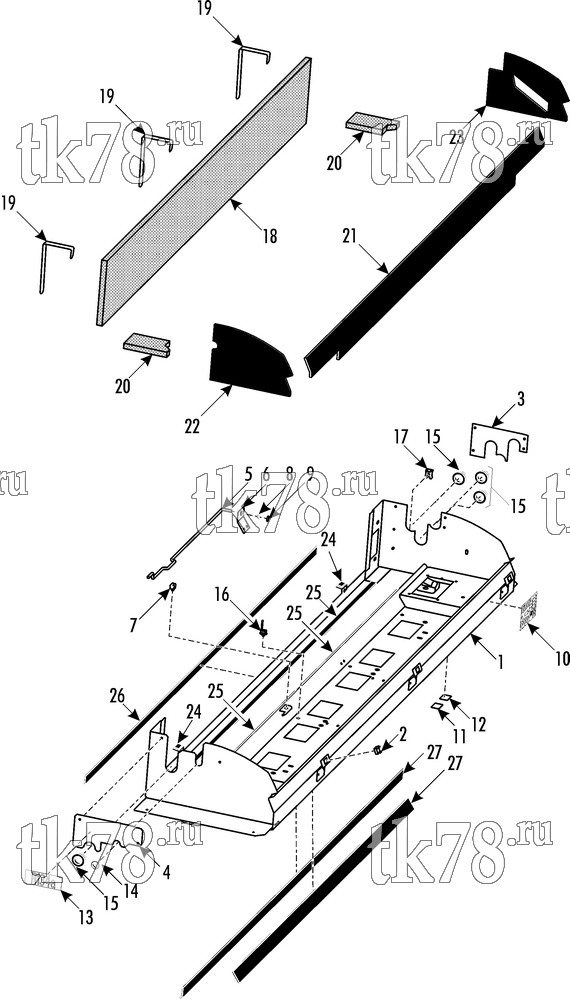

Установкa Thermo King ATHENIA S805 Iveco схема EVAPORATOR BASE 2 – 237C9
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8300 | BASE - weldment | 1 | |
| 55-6994 | SCREW - base | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 55-7373 | NUT - captive, evaporator base to air intake (M6) | 4 | ||
| 55-8403 | NUT - captive, evaporator base to bus roof (M8) | 6 | ||
| 2 | 55-9194 | NUT - captive | 3 | |
| 3 | 92-7775 | PLATE - covering | 1 | |
| 92-7776 | PLATE - covering (only for unit w/o heater) | 1 | ||
| 4 | 92-7772 | PLATE - covering | 1 | |
| 55-5130 | RIVET - plates | A/R | ||
| 5 | 92-6376 | ROD - cover | 1 | |
| 6 | 92-5048 | BRACKET - rod | 1 | |
| 55-5130 | RIVET - bracket | A/R | ||
| 7 | 51-1669 | CLIP - plastic | 1 | |
| 8 | 83-258 | GROMMET (0.250 id) | 1 | |
| 9 | 51-809 | LOCKWASHER | 1 | |
| 10 | 92-4029 | NAMEPLATE - fuse | 1 | |
| 11 | 91-7550 | NAMEPLATE - liquid out | 1 | |
| 12 | 91-7703 | NAMEPLATE - liquid in | 1 | |
| 13 | 91-5459 | NAMEPLATE - R134a | 1 | |
| 14 | 33-428 | GROMMET (0.500 id) | 1 | |
| 15 | 33-452 | GROMMET (0.875 id) | 4 | |
| 16 | 51-1631 | STRAP - cable | 6 | |
| 17 | 99-3281 | MOUNT - bandwrap | 1 | |
| 55-5130 | RIVET - mount | A/R | ||
| 18 | 92-5663 | FILTER - evaporator | 1 | |
| 19 | 92-5664 | CLIP - filter | 3 | |
| 20 | 92-7792 | FILTER - evaporator | 2 | |
| 21 | 92-6377 | INSULATION | 1 | |
| 22 | 92-7782 | INSULATION | 1 | |
| 23 | 92-7783 | INSULATION | 1 | |
| 24 | 33-3540 | STRIP - neoprene | A/R | |
| 25 | 99-2495 | STRIP - neoprene | A/R | |
| 26 | 99-6968 | STRIP - neoprene (50 ft cut to length) | A/R | |
| 27 | 33-2420 | STRIP - neoprene | A/R |
