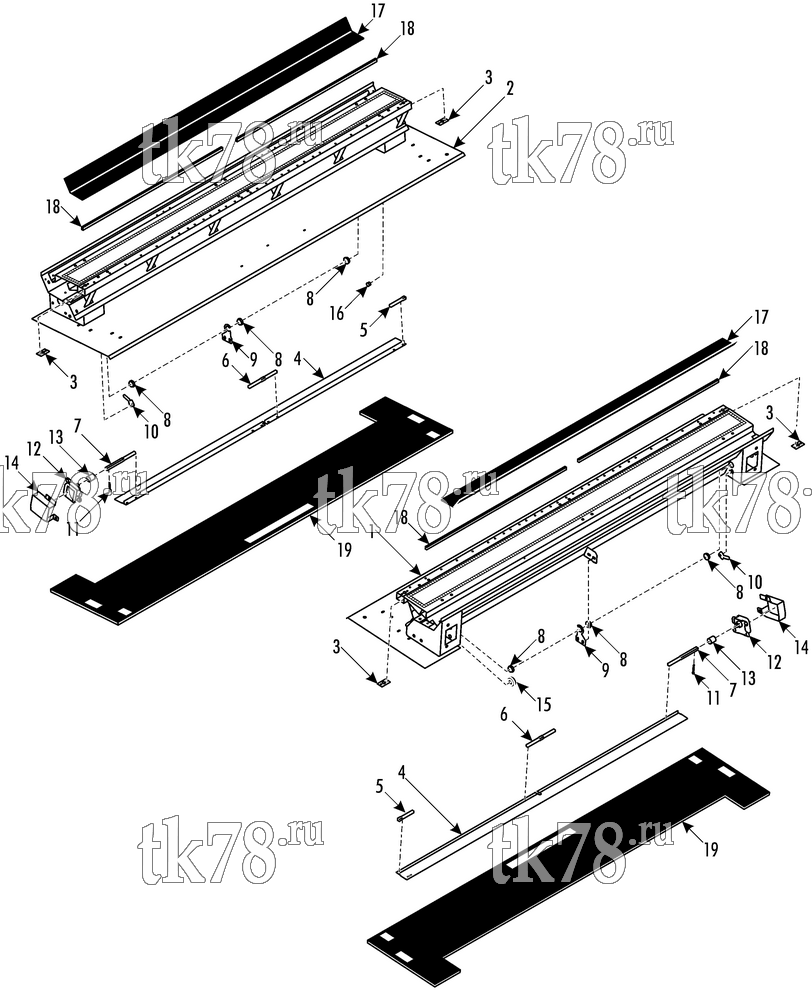

Установкa Thermo King ATHENIA S805 Iveco схема AIR INTAKE – 237C0
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8299 | BASE - weldment | 1 | |
| 2 | 98-8298 | BASE - weldment | 1 | |
| 55-8375 | NUT - captive, cover hinge (M5) | 12 | ||
| 55-7373 | NUT - captive, air intake to evaporator base (M6) | 8 | ||
| 55-8403 | NUT - captive, air intake to bus roof (M8) | 12 | ||
| 3 | 92-4030 | BRACKET - lifting eye | 4 | |
| 55-5130 | RIVET - bracket | A/R | ||
| 4 | 98-7484 | DAMPER | 2 | |
| 55-7340 | SCREW - damper | 16 | ||
| 55-7171 | LOCKWASHER | 16 | ||
| 55-7089 | FLATWASHER | 16 | ||
| 5 | 92-4031 | AXIS - damper | 2 | |
| 6 | 92-4032 | AXIS - damper, middle | 2 | |
| 7 | 92-5667 | AXIS - damper, shorter | 2 | |
| 8 | 91-9142 | BEARING | 6 | |
| 9 | 92-4034 | HOLDER - bearing | 2 | |
| 10 | 51-1931 | STOPPER | 2 | |
| 55-7172 | SCREW - holder & stopper | 4 | ||
| 55-7075 | FLATWASHER | 10 | ||
| 55-7042 | NUT - holder | 4 | ||
| 55-9837 | NUT - captive, stopper | 2 | ||
| 11 | 55-5601 | PIN - cotter | 2 | |
| 12 | 41-2755 | SERVOMOTOR | 2 | |
| 55-9349 | SCREW - servomotor | 6 | ||
| 55-7369 | LOCKWASHER | 6 | ||
| 55-7697 | FLATWASHER | 6 | ||
| 51-1824 | NUT - captive, servomotor | 6 | ||
| 13 | 92-685 | COUPLING - damper | 2 | |
| 14 | 92-7777 | COVER - servomotor | 2 | |
| 55-6994 | SCREW - cover | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 51-1670 | NUT - captive | 4 | ||
| 15 | 33-1055 | GROMMET (0.375 id) | 1 | |
| 16 | 55-9574 | PLUG (white) | 1 | |
| 17 | 92-5671 | INSULATION | 2 | |
| 18 | 92-5669 | INSULATION | 4 | |
| 19 | 92-7935 | INSULATION | 2 |
