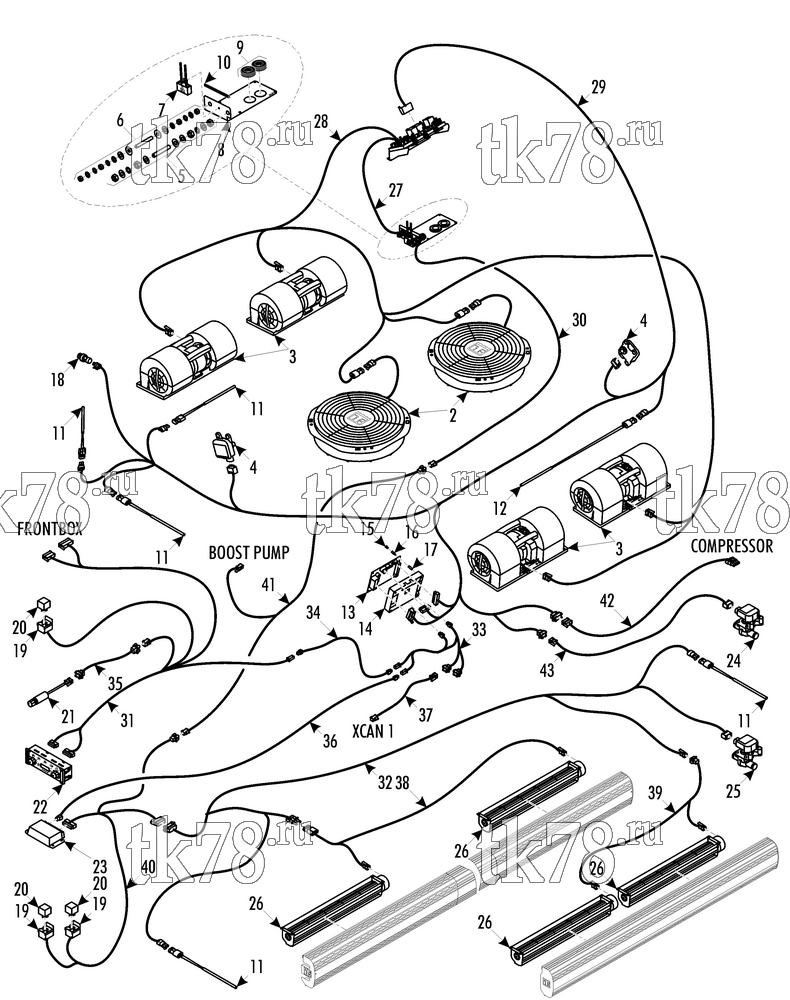

Установкa Thermo King ATHENIA S500 SB-200 BERKHOF схема ELECTRICAL COMPONENTS – 245E3
Обновление от: 3/24/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | CONTROLLER (see 245E4) | 1 | |
| 2 | 78-1414 | FAN (see 203F5) | 2 | |
| 3 | 78-1679 | BLOWER (see 245D4) | 4 | |
| 4 | 41-3255 | SERVOMOTOR - damper (see 218E5 & 245D7) | 2 | |
| 5 | 55-9191 | STUD (M10) | 1 | |
| 55-3672 | LOCKWASHER | 1 | ||
| 55-448 | FLATWASHER | 3 | ||
| 55-3066 | LOCKWASHER | 2 | ||
| 55-9189 | NUT | 4 | ||
| 6 | 55-9367 | STUD (M8) | 1 | |
| 55-8693 | WASHER (nylon) | 1 | ||
| 55-8631 | WASHER (nylon, w/shoulder) | 1 | ||
| 55-448 | FLATWASHER | 2 | ||
| 55-8955 | FLATWASHER | 4 | ||
| 55-3238 | LOCKWASHER | 4 | ||
| 305-1653 | NUT | 4 | ||
| 7 | 41-6098 | SUPRESSOR - voltage | 1 | |
| 55-7749 | NUT | 1 | ||
| 55-9057 | LOCKWASHER | 1 | ||
| 55-7830 | FLATWASHER | 1 | ||
| 51-888 | STUD - self clinching | 1 | ||
| 8 | 41-9606 | PLATE - electric connection | 1 | |
| 55-5130 | RIVET - plate | A/R | ||
| 9 | 33-452 | GROMMET (0.875 id) | 2 | |
| 10 | 92-3279 | RUBBER - profile | A/R | |
| 11 | 41-4157 | SENSOR - temperature | 5 | |
| 12 | 41-4335 | SENSOR - temperature | 1 | |
| 13 | 41-8140 | MODULE - CAN | 1 | |
| 14 | 92-7576 | COVER - module | 1 | |
| 15 | 51-1848 | STUD - self-clinching | 4 | |
| 16 | 51-1849 | SPACER | 4 | |
| 17 | 51-1850 | SPACER | 4 | |
| 55-8410 | FLATWASHER | 4 | ||
| 55-9057 | LOCKWASHER | 4 | ||
| 55-9195 | SCREW - module cover | 4 | ||
| 18 | 41-5781 | TRANSDUCER - pressure | 1 | |
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 19 | 44-5537 | SOCKET - relay | 3 | |
| 20 | 41-5657 | RELAY | 3 | |
| 21 | 41-8952 | POTENTIOMETER | 1 | |
| 22 | 45-2129 | FrontAIRE II (see 215A1 ) | 1 | |
| 23 | 41-8142 | MODULE - CAN (floor) | 1 | |
| 24 | 41-6592 | VALVE - water (rooftop unit) | 1 | |
| 25 | 41-7665 | VALVE - water (floor heating) | 1 | |
| 26 | 78-1399 | BLOWER - floor heating (see 216B6 & 216B7) | 4 | |
| 27 | 41-7761 | HARNESS - supply | 1 | |
| 28 | 41-9607 | HARNESS - controller (for connectors see 245E5) | 1 | |
| 29 | 41-9608 | HARNESS - controller (for connectors see 245E5) | 1 | |
| 30 | 41-9609 | HARNESS - supply (floor) (for connectors see 245E5) | 1 | |
| 41-4965 | HOLDER - fuse | 1 | ||
| 44-9524 | FUSE - 3 amp | 1 | ||
|
10-44-9524 | Предохранитель 3 ампер 10 шт | 1 860 ₽ |
|
| 31 | 41-9610 | HARNESS - driver panel (for connectors see 245E5 ) | 1 | |
| 32 | 41-9611 | HARNESS - floor heating (for connectors see 245E5) | 1 | |
| 33 | 41-8624 | HARNESS - CAN interface (for connectors see 245E5) | 1 | |
| 34 | 41-8634 | HARNESS - CAN (9m) (for connectors see 245E5) | 1 | |
| 35 | 41-9613 | HARNESS - potentiometer (for connectors see 245E5) | 1 | |
| 36 | 41-9624 | HARNESS - CAN (5m) (for connectors see 245E5) | 1 | |
| 37 | 41-9625 | HARNESS - CAN (JPT, 5m) (for connectors see 245E5) | 1 | |
| 38 | 41-5760 | HARNESS - convector (for connectors see 245E5) | 1 | |
| 39 | 41-7669 | HARNESS - convector (for connectors see 245E5) | 1 | |
| 40 | 41-9617 | HARNESS - floor module (for connectors see 245E5) | 1 | |
| 41 | 41-9626 | HARNESS - supply CAN (floor) (for connectors see 245E5) | 1 | |
| 42 | 41-7712 | HARNESS - compressor (for connectors see 245E5) | 1 | |
| 43 | 41-9619 | HARNESS - water valve (for connectors see 245E5) | 1 |
