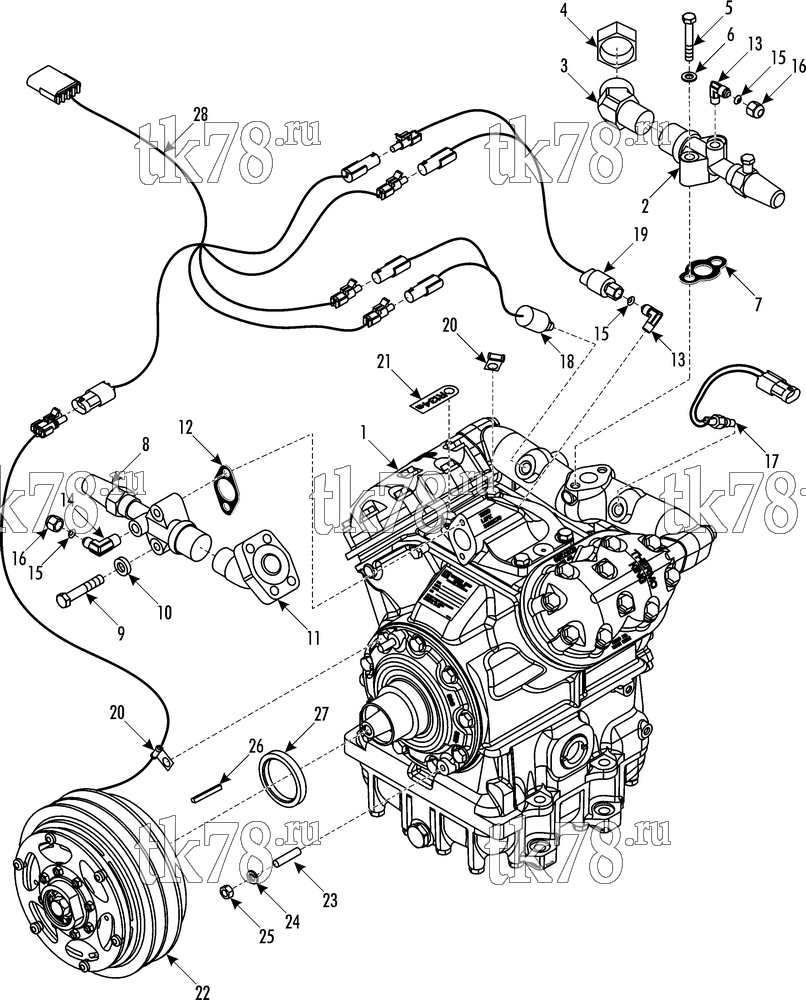

Установкa Thermo King ATHENIA MKII S700 схема COMPRESSOR GROUP X430 (KIT 701135) – 237B6
Обновление от: 3/11/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-917 | COMPRESSOR - X430 (see 228E5) | 1 | |
| 2 | 66-2140 | VALVE - discharge | 1 | |
| 66-2296 | CAP - service valve (plastic, incl gasket) | 1 | ||
|
10-66-2296 | Крышка сервисного клапана, пластик, X426/430/640 | 1 800 ₽ |
|
| P-17-10812-01 | Крышка сервисного клапана, пластик, 05K/05G/06D | 1 800 ₽ |
|
|
| 33-3007 | GASKET - cap | 1 | ||
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 3 | 55-5886 | ADAPTER - hose #16 | 1 | |
| 4 | 51-1858 | CAP - adapter | 1 | |
| 5 | 55-201 | SCREW - discharge valve | 2 | |
| 6 | 55-895 | FLATWASHER | 2 | |
| 7 | 33-2805 | GASKET - discharge valve | 1 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 8 | 66-3576 | VALVE - suction | 1 | |
| 66-2296 | CAP - service valve (plastic, incl gasket) | 1 | ||
| P-17-10812-01 | Крышка сервисного клапана, пластик, 05K/05G/06D | 1 800 ₽ |
|
|
|
|
10-66-2296 | Крышка сервисного клапана, пластик, X426/430/640 | 1 800 ₽ |
|
| 33-3007 | GASKET - cap | 1 | ||
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 9 | 55-6776 | SCREW - suction valve | 2 | |
| 10 | 55-6804 | WASHER - sealing | 2 | |
| 11 | 61-4843 | FITTING | 1 | |
| 12 | 33-2541 | GASKET - suction valve | 1 | |
| 13 | 55-308 | ELBOW | 2 | |
| 14 | 55-466 | ELBOW | 1 | |
| 15 | 33-768 | GASKET - flare | 3 | |
| 16 | 56-1983 | CAP - flare | 2 | |
| 17 | 41-3345 | SENSOR - temperature | 1 | |
| 18 | 41-4146 | SWITCH - hpco | 1 | |
| 19 | 41-4147 | SWITCH - lpco | 1 | |
| 20 | 55-5261 | CLAMP | 2 | |
| 21 | 92-4114 | NAMEPLATE - R134a | 1 | |
| 22 | NSS | CLUTCH (TK High Torque Clutch, see 222H3) | 1 | |
| 23 | 55-3451 | STUD - clutch to compressor | 3 | |
| 24 | 56-790 | LOCKWASHER | 3 | |
| 25 | 55-789 | NUT | 3 | |
| 26 | 55-9088 | KEY - shaft | 1 | |
| 27 | 77-1491 | SPACER - clutch | 1 | |
| 28 | 41-6795 | HARNESS - compressor (for connectors see 115D14) | 1 |
