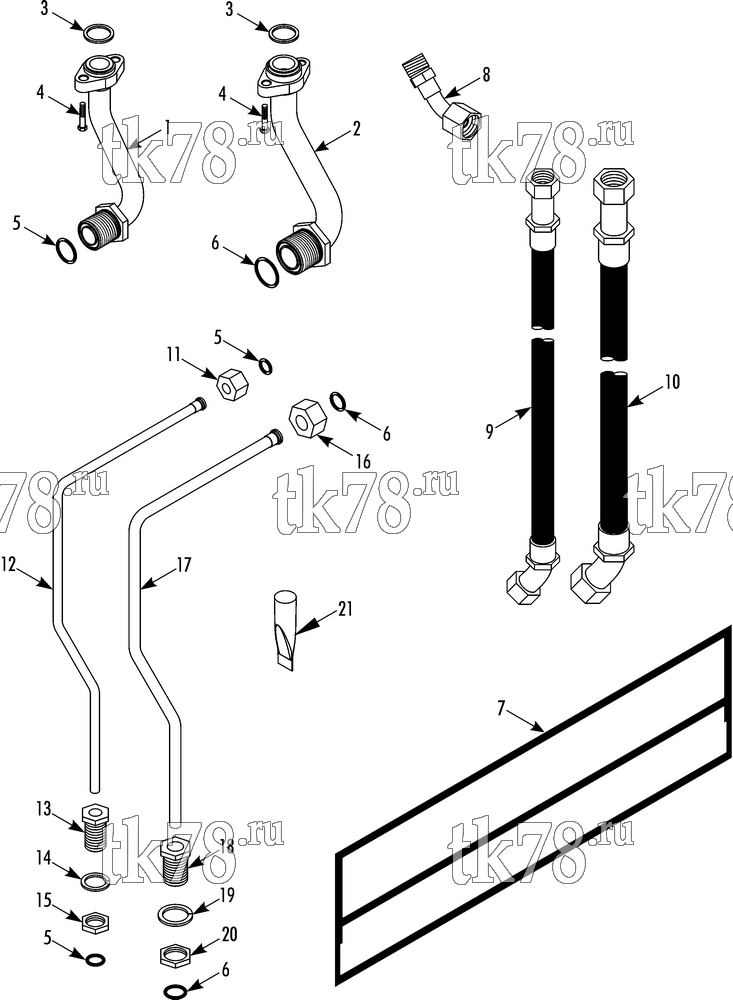

Установкa Thermo King ATHENIA 960-M29 схема INSTALLATION COMPONENTS – 260C7
Обновление от: 5/13/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-5555 | TUBE - discharge assembly | 1 | |
| 55-9371 | FLANGE (2 bolt, threaded) | 1 | ||
| 55-9184 | ADAPTER (1-1/8 tube) | 1 | ||
| 55-7537 | ADAPTER - bulkhead (#20) | 1 | ||
| 2 | 61-5554 | TUBE - suction assembly | 1 | |
| 51-2063 | FLANGE (2 bolt, non threaded) | 1 | ||
| 51-2064 | ADAPTER (1-3/8 tube) | 1 | ||
| 51-1292 | ADAPTER - bulkhead (#24) | 1 | ||
| 3 | 33-3191 | GASKET - flat | 2 | |
| 4 | 55-9822 | SCREW - flange | 8 | |
| 5 | 33-1777 | O-RING (1-3/16 id) | 3 | |
| 6 | 33-920 | O-RING (1-1/2 id) | 3 | |
| 7 | 33-4627 | GASKET - unit sealing | 2 | |
| 8 | 61-5553 | FITTING - 45 deg (#8 o-ring seal to #8 tube-O) | 1 | |
| 9 | 66-9466 | HOSE - suction (#20) | 1 | |
| 10 | 61-2374 | HOSE - discharge (# 24) | 1 | |
| 11 | 55-5935 | NUT - shoulder (#20) | 1 | |
| 12 | 61-5889 | TUBE - discharge | 1 | |
| 55-5939 | SLEEVE - adapter (#20) | 1 | ||
| 13 | 55-7832 | ADAPTER - bulkhead (#20) | 1 | |
| 14 | 55-5742 | LOCKWASHER (1.77 id) | 1 | |
| 15 | 55-5739 | NUT - bulkhead (#20) | 1 | |
| 16 | 55-9023 | NUT - shoulder (#24) | 1 | |
| 17 | 61-5890 | TUBE - suction | 1 | |
| 55-7051 | SLEEVE - adapter (#24) | 1 | ||
| 18 | 55-7381 | ADAPTER - bulkhead (#24) | 1 | |
| 19 | 55-5999 | LOCKWASHER (2.01 id) | 1 | |
| 20 | 55-5996 | NUT - bulkhead (#24) | 1 | |
| 21 | 66-1273 | VALVE - check (drain) | 4 |
