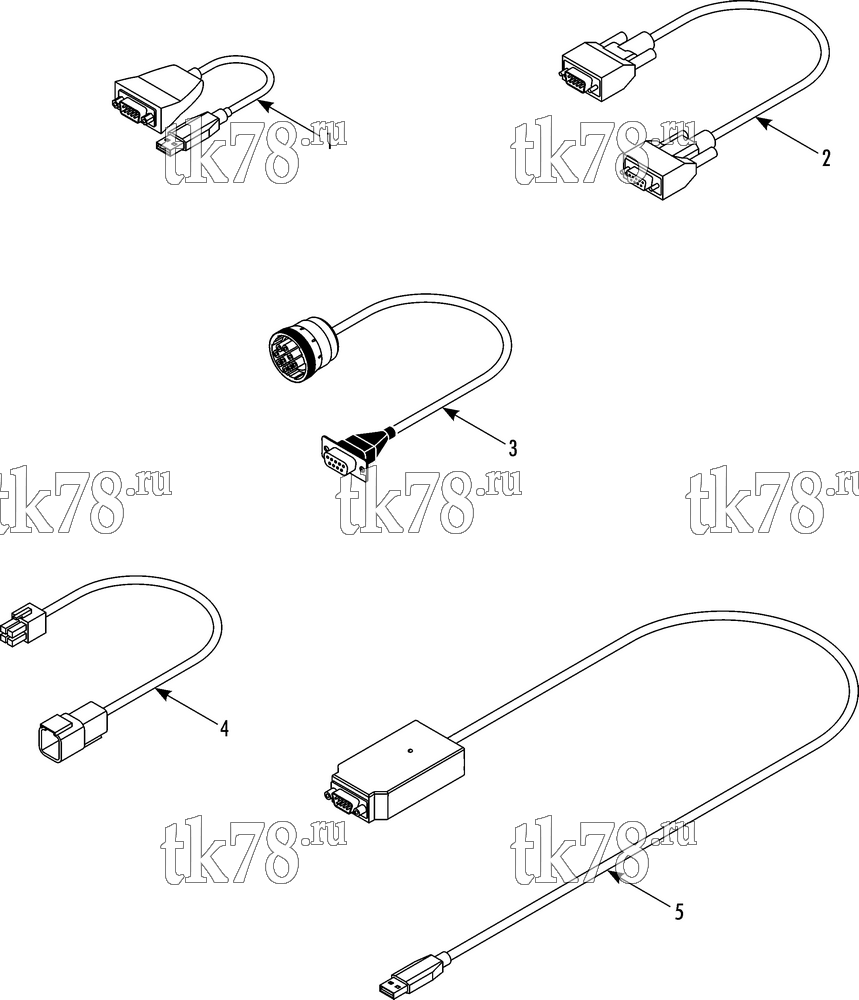

Установкa Thermo King ATHENIA 960-M29 схема DIAGNOSTIC HARNESSES – 260C6
Обновление от: 5/1/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 42-575 | CABLE - USB to serial | 1 | |
| 2 | 42-383 | CABLE - download | 1 | |
| 3 | 42-576 | HARNESS - diagnostic, IntelligAIRE III | 1 | |
| 4 | 42-574 | HARNESS - display | 1 | |
| 41-654 | CONNECTOR (4-pin) | 1 | ||
| 41-1807 | SOCKET (18-24 ga) | 4 | ||
| 41-4283 | CONNECTOR (6-pin) | 1 | ||
| 41-4899 | WEDGE (6-pin) | 1 | ||
| 41-9602 | SOCKET (20 ga) | 5 | ||
| 41-8979 | PIN - sealing | 1 | ||
| 5 | 204-1917 | HARNESS - USB to CAN interface | 1 |
