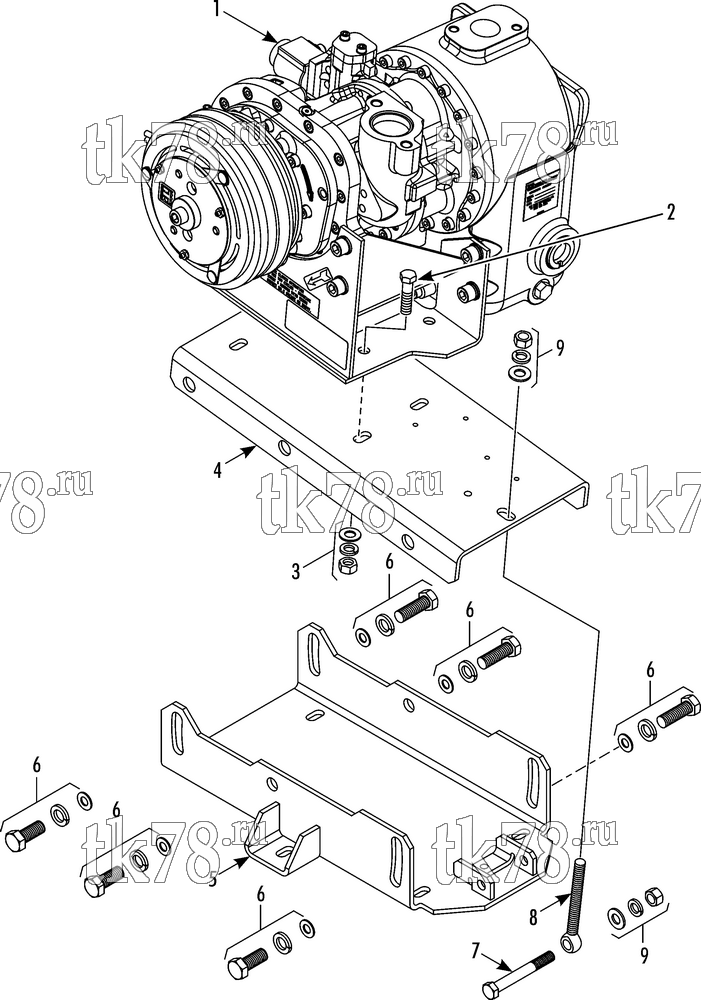

Установкa Thermo King ATHENIA 1000-M30 схема COMPRESSOR MOUNTING GROUP – 260D5
Обновление от: 5/22/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-970 | COMPRESSOR - QS391B | 1 | |
| 2 | 55-4796 | SCREW - compressor base | 4 | |
| 3 | 55-287 | NUT | 4 | |
| 55-2038 | FLATWASHER | 4 | ||
| 55-365 | LOCKWASHER | 4 | ||
| 4 | 92-9946 | BASE - upper | 1 | |
| 5 | 92-9918 | BASE - lower | 1 | |
| 6 | 51-2279 | SCREW - base | 6 | |
| 55-4767 | FLATWASHER | 6 | ||
| 55-451 | LOCKWASHER | 6 | ||
| 7 | 55-4796 | SCREW - eye bolt | 1 | |
| 8 | 92-6932 | BOLT - eye | 1 | |
| 9 | 55-287 | NUT | 2 | |
| 55-2038 | FLATWASHER | 3 | ||
| 55-365 | LOCKWASHER | 2 |
