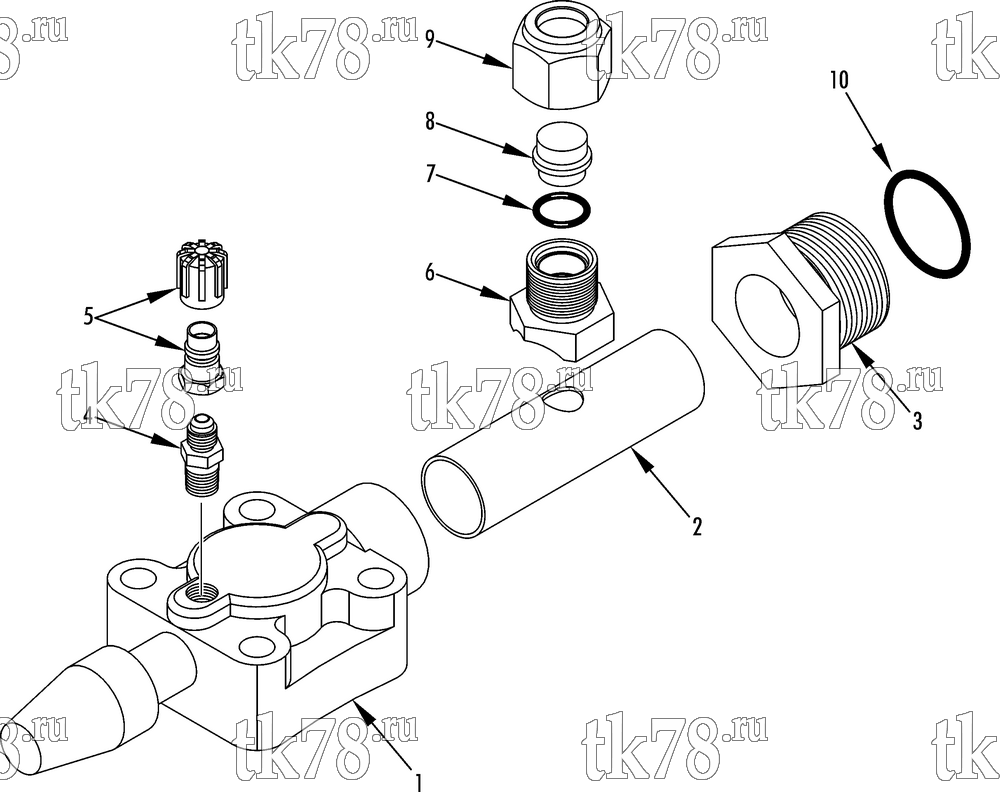

Установкa Thermo King ATHENIA 1000-M30 схема VALVE ASSEMBLY - SUCTION – 260D3
Обновление от: 5/22/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 61-6136 | VALVE - suction | 1 | ||
| 1 | 61-3514 | VALVE - suction | 1 | |
| 2 | NSS | TUBE - valve | 1 | |
| 3 | 55-6570 | ADAPTER - bulkhead (#24, o-ring seal) | 1 | |
| 4 | 55-1685 | COUPLING | 1 | |
| 5 | 66-7180 | FITTING - low side | 1 | |
| 66-7183 | CAP - fitting | 1 | ||
| 6 | 51-1195 | FITTING - saddle | 1 | |
| 7 | 33-2095 | O-RING (11/16 id) | 1 | |
|
30-33-2095 | Уплотнитель | 530 ₽ |
|
| 8 | 55-9436 | ADAPTER (#12) | 1 | |
| 9 | 55-2785 | NUT - flare | 1 | |
| 10 | 33-920 | O-RING (1-3/16 id) | 1 |
