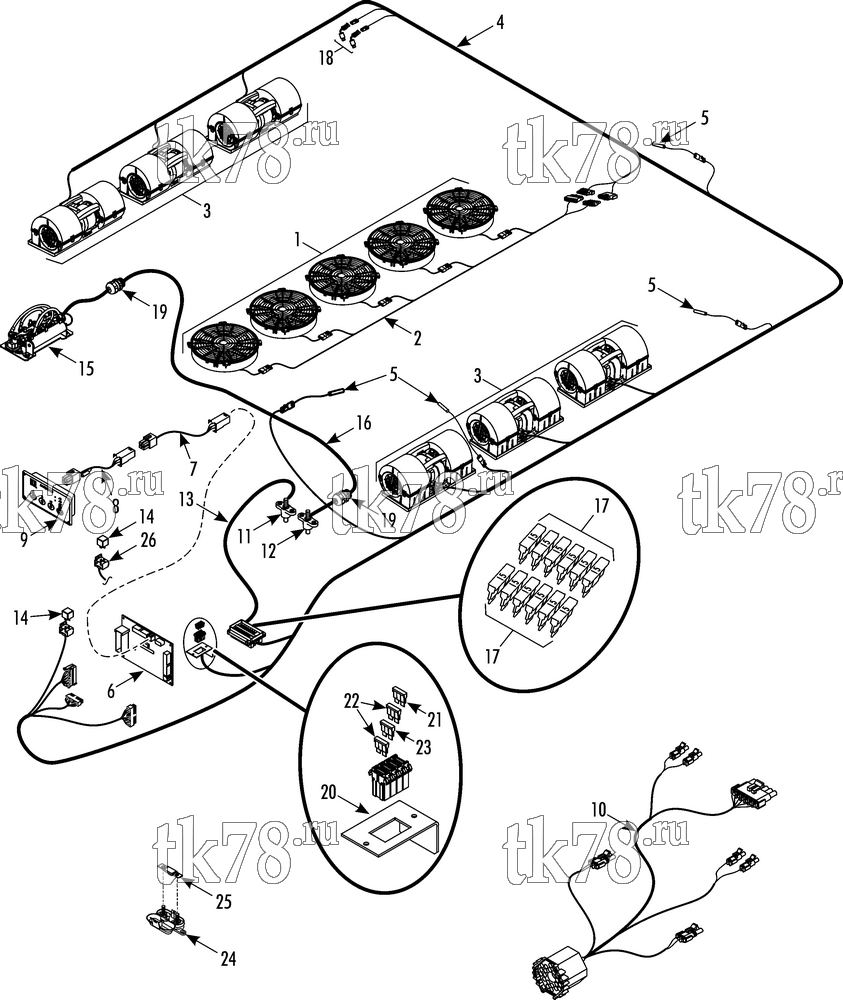

Установкa Thermo King ATHENIA 1000-M21 схема ELECTRICAL COMPONENTS – 264E0
Обновление от: 12/12/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1344 | FAN - condenser(24V, see 251B8) | 5 | |
| 2 | 41-9786 | HARNESS - condenser fans (see 251B7) | 1 | |
| 3 | 78-1297 | BLOWER - evaporator (24V) | 6 | |
| 51-259 | HOLDER - blower | 12 | ||
| 55-3121 | SCREW - holder | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 4 | 42-387 | HARNESS - main IntelligAIRE III (see 258E3) | 1 | |
| 5 | 41-4157 | SENSOR - temperature | 4 | |
| 44-5835 | CONNECTOR - shroud (2-pin, see 115D14 for connectors) | 4 | ||
| 6 | 41-9353 | MODULE - main, IntelligAIRE III (see 258C0) | 1 | |
| 7 | NSS | HARNESS - display, IntelligAIRE III (see 244F2) | 1 | |
| 8 | 41-9432 | HARNESS - resistor, IntelligAIRE III (see 244F2) | 1 | |
| 9 | 45-2339 | MODULE - display, IntelligAIRE III (see 244F2) | 1 | |
| 10 | 42-890 | HARNESS - adapter (see 264F1) | 1 | |
| 11 | 55-9550 | STUD - block (red) | 1 | |
| 41-5670 | CAP - insulator (red) | 1 | ||
| 55-9700 | SCREW - stud block mounting (#10) | 2 | ||
| 55-2001 | FLATWASHER (#10) | 2 | ||
| 55-4560 | NUT (# 10) | 2 | ||
| 55-671 | NUT - stud (3/8) | 2 | ||
| 55-3066 | LOCKWASHER (3/8) | 2 | ||
| 55-448 | FLATWASHER (3/8) | 2 | ||
| 12 | 55-9551 | STUD - block (black) | 1 | |
| 41-9402 | CAP - insulator (black) | 1 | ||
| 55-9700 | SCREW - stud block mounting (#10) | 2 | ||
| 55-2001 | FLATWASHER (#10) | 2 | ||
| 55-4560 | NUT (#10) | 2 | ||
| 55-671 | NUT - stud (3/8) | 2 | ||
| 55-3066 | LOCKWASHER (3/8) | 2 | ||
| 55-448 | FLATWASHER (3/8) | 2 | ||
| 13 | 41-9585 | HARNESS - power | 1 | |
| 41-9477 | TERMINAL - lug (3/8, 1 awg) | 1 | ||
| 41-9789 | TERMINAL - lug (1/4, 1 awg) | 1 | ||
| 14 | 41-896 | RELAY | 2 | |
| 15 | NSS | PANEL - resistor and contactor (see 251C3) | 1 | |
| 16 | 41-9788 | HARNESS - ground | 1 | |
| 41-9477 | TERMINAL - lug (3/8, 1 awg) | 1 | ||
| 41-8267 | TERMINAL - lug (5/16, 1 awg) | 1 | ||
| 17 | 44-9344 | FUSE (15 amp) | 12 | |
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 18 | 41-5781 | TRANSDUCER - pressure | 2 | |
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 19 | 41-4817 | CONNECTOR - liquid tite | 2 | |
| 20 | 92-8924 | BRACKET - fuse | 1 | |
| 21 | 44-9524 | FUSE (3 amp) | 1 | |
|
10-44-9524 | Предохранитель 3 ампер 10 шт | 1 860 ₽ |
|
| 22 | 41-1292 | FUSE (5 amp) | 2 | |
|
10-41-1292 | Предохранитель 5 ампер 10 шт | 1 860 ₽ |
|
| 23 | 44-9758 | FUSE (10 amp) | 1 | |
|
10-44-9758 | Предохранитель 10 ампер 10 шт | 1 860 ₽ |
|
| 24 | 41-7008 | HOLDER - fuse | 1 | |
| 30-41-7008 | Гнездо предохранителя | 1 820 ₽ |
|
|
| 25 | 41-8486 | FUSE (150 amp) | 1 | |
| 26 | 41-9804 | HARNESS - excitation, relay base | 1 |
