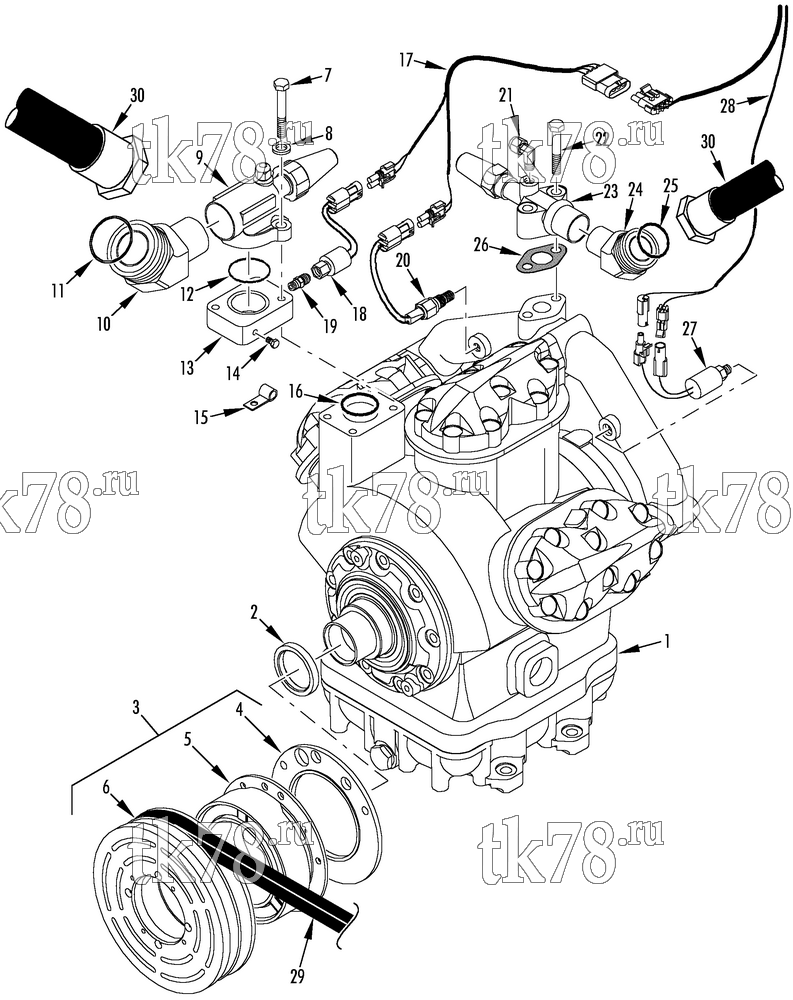

Установкa Thermo King AT8-Houston схема COMPRESSOR GROUP (5D39446G02, KIT 715350) – 135E11
Обновление от: 11/11/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-503 | COMPRESSOR - X640 (see 109D11) | 1 | |
| 2 | 33-2120 | SEAL - oil | 1 | |
| 10-33-2120 | Сальник крышки компрессора X426/430/640 | 1 690 ₽ |
|
|
| PP-33-2120 | Сальник крышки компрессора X426/430/640 | 480 ₽ |
|
|
| 3 | NSS | CLUTCH - assembly | 1 | |
| 107-280 | KIT - clutch drive repair (see 153E2) | 1 | ||
| 107-150 | KIT - clutch drive repair (see 153E7, before 10/98) | 1 | ||
| 4 | 77-1083 | PLATE | 1 | |
| 5 | 45-271 | FIELD - clutch (24VDC, w/fingrip leads) | 1 | |
| 45-1389 | FIELD - clutch (24VDC, w/1-pin weather pack connector) | 1 | ||
| 6 | 77-2148 | PULLEY (2-5V groove, 9.0 in od) | 1 | |
| 7 | 55-183 | SCREW - valve (3/8-16) | 2 | |
| 10-55-183 | Болт масляного насоса компрессора 3/8-16 x 1/4 lg | 550 ₽ |
|
|
| 8 | 55-896 | FLATWASHER (3/8) | 2 | |
| 9 | 61-1928 | VALVE - suction | 1 | |
| 66-5318 | VALVE | 1 | ||
| 66-5318 OEM | Всасывающий клапан X426/430/640 | 42 100 ₽ |
|
|
|
10-66-5318 | Всасывающий клапан X426/430/640 | 28 770 ₽ |
|
| 66-2296 | CAP - service valve (plastic, incl gasket) | 1 | ||
|
10-66-2296 | Крышка сервисного клапана, пластик, X426/430/640 | 1 800 ₽ |
|
| P-17-10812-01 | Крышка сервисного клапана, пластик, 05K/05G/06D | 1 800 ₽ |
|
|
| 33-3007 | GASKET - cap | 1 | ||
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 10 | 55-7050 | ADAPTER - suction (#24) | 1 | |
| 11 | 33-920 | O-RING - adapter (#24) | 1 | |
| 12 | 33-230 | O-RING - valve (1.875 id) | 1 | |
|
10-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 380 ₽ |
|
| PP-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 220 ₽ |
|
|
| 13 | 22-762 | ADAPTER - suction valve | 1 | |
| 55-433 | PLUG - pipe | 1 | ||
| 14 | 55-3024 | SCREW | 1 | |
| 15 | 55-5261 | CLAMP - harness | 1 | |
| 16 | 33-920 | O-RING - adapter | 1 | |
| 17 | 41-1236 | HARNESS - compressor (for connectors see 115D14) | 1 | |
| 18 | 44-8734 | SWITCH - lpco (for connectors see 115D14) | 1 | |
| 44-4258 | SWITCH - only | 1 | ||
| 19 | 11-2886 | VALVE - pressure | 1 | |
| 20 | 41-4523 | SWITCH - hpco | 1 | |
|
41-4523 OEM | Выключатель высокого давления, SLX/SLXe | 15 650 ₽ |
|
| 10-41-4523 | Выключатель высокого давления, SLX/SLXe | 12 390 ₽ |
|
|
| 21 | 55-308 | ELBOW - discharge valve | 1 | |
| 55-1983 | CAP - elbow | 1 | ||
| 33-768 | GASKET - cap | 1 | ||
| 22 | 55-3674 | SCREW - discharge valve | 2 | |
| 23 | 61-876 | VALVE - discharge | 1 | |
| 66-2140 | VALVE | 1 | ||
| 66-3015 | CAP - valve (brass, incl gasket) | 1 | ||
|
10-66-3015 | Крышка сервисного клапана, латунь, X426/430/640 | 3 000 ₽ |
|
| P-17-10806-10 | Крышка сервисного клапана, латунь, 05K/05G/06D | 3 000 ₽ |
|
|
| 33-350 | GASKET - brass cap | 1 | ||
| 24 | 55-5887 | ADAPTER - discharge (#20) | 1 | |
| 25 | 33-1777 | O-RING - adapter (#20) | 1 | |
| 26 | 33-2805 | GASKET - discharge valve | 1 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 27 | 41-3345 | SENSOR - high temperature (for connectors see 115D14) | 1 | |
| 44-7814 | SENSOR - only | 1 | ||
| 28 | 41-2179 | HARNESS - compressor | 1 | |
| 29 | N/A | BELT - compressor (not supplied by Thermo King) | 1 | |
| 30 | N/A | VIBRASORBER & TUBES (not supplied by Thermo King) | 1 |
