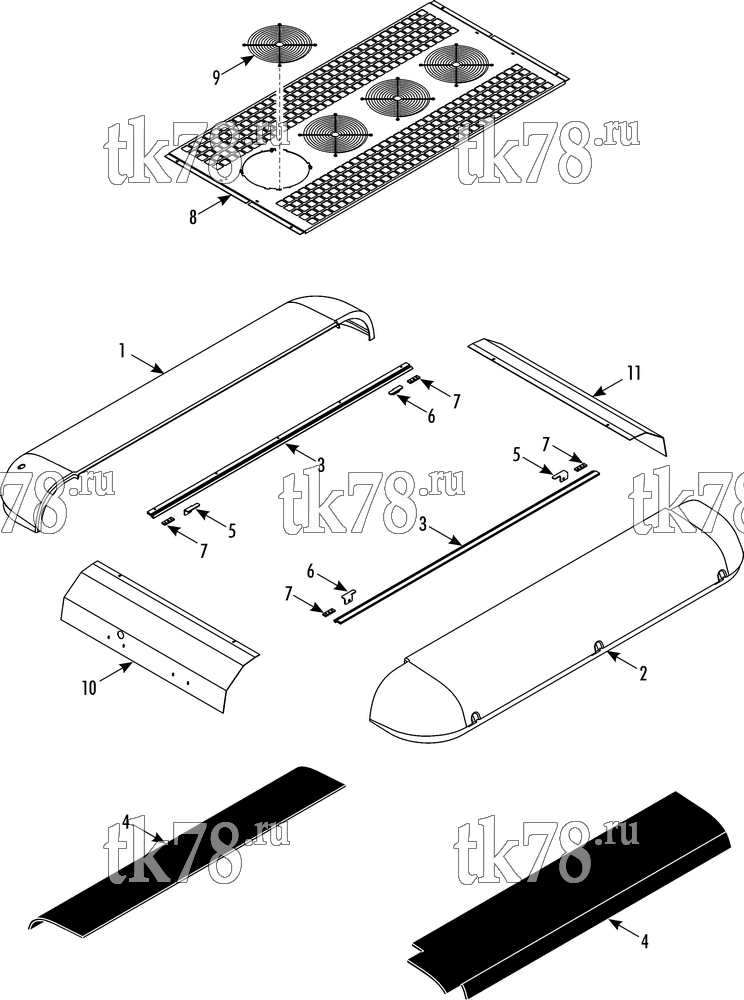

Установкa Thermo King AT20-M4 схема COVERS – 271A7
Обновление от: 9/4/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8910 | COVER - assembly, curbside | 1 | |
| 2 | 98-8909 | COVER - assembly, roadside | 1 | |
| 51-2096 | SCREW - cover | 6 | ||
| 51-1927 | SPRING - fastener | 6 | ||
| 55-7112 | WASHER - special | 6 | ||
| 3 | 92-9564 | EXTRUSION - hinge | 2 | |
| 51-2039 | RIVET - hinge (1/4) | 10 | ||
| 4 | 33-4879 | INSULATION - cover | 2 | |
| 5 | 92-9021 | BRACKET - cover | 2 | |
| 6 | 92-9022 | BRACKET - cover | 2 | |
| 7 | 92-8435 | PLATE - lifting | 4 | |
| 55-5972 | SCREW - plate | 8 | ||
| 8 | 98-8911 | PANEL - condenser fans (see 271A8) | 1 | |
| 9 | 98-5425 | GUARD - fan (see 271A8) | 4 | |
| 10 | 98-8517 | PANEL - spoiler w/sightglass hole (radius 10.5 m) | 1 | |
| 11 | 98-8792 | PANEL - spoiler (radius 10.5 m) | 1 | |
| 55-2957 | SCREW - spoiler | 12 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 55-2086 | FLATWASHER | 12 |
