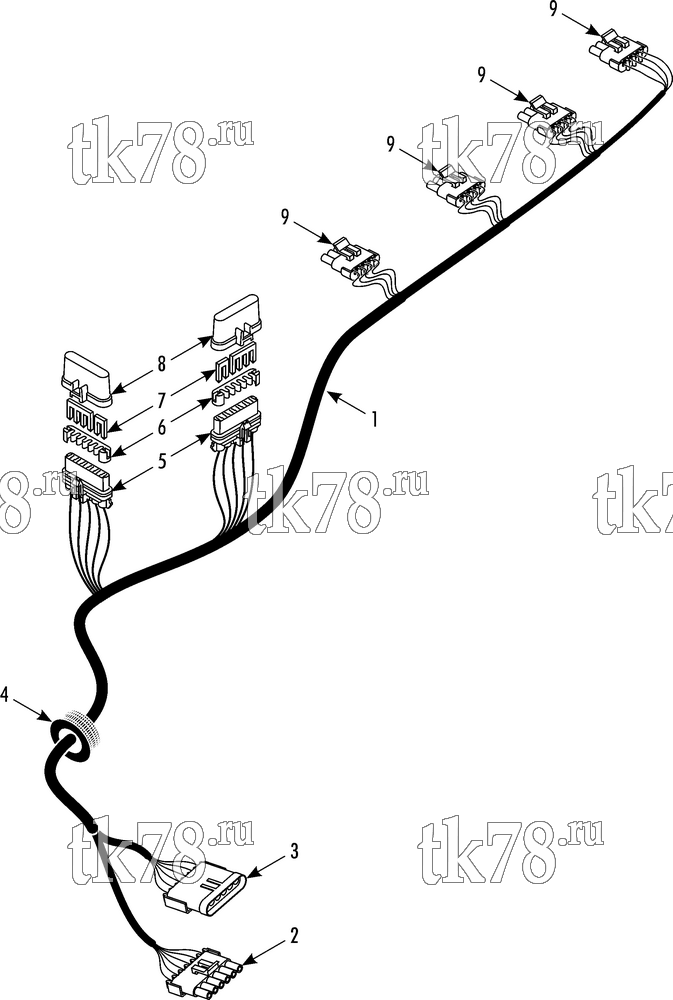

Установкa Thermo King AT20-M4 схема HARNESS CONDENSER FANS – 258C9
Обновление от: 1/20/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 42-382 | HARNESS - condenser fans | 1 | |
| 2 | 44-7872 | CONNECTOR - tower (6-pin) | 1 | |
| 44-5839 | TERMINAL - female (16-14 ga) | 6 | ||
| 44-6324 | SEAL - cable (blue) | 6 | ||
| 3 | 44-8294 | CONNECTOR - shroud (6-pin) | 1 | |
| 44-6324 | SEAL - cable (blue) | 6 | ||
| 44-5836 | TERMINAL - male (16-14 ga) | 6 | ||
| 4 | 33-452 | GROMMET (.875 id) | 1 | |
| 5 | 41-1789 | CONNECTOR (6-pin) | 2 | |
| 41-4229 | TERMINAL - female (16 ga) | 12 | ||
| 44-8681 | SEAL - cable (red) | 12 | ||
| 6 | 41-1790 | LOCK - secondary | 2 | |
| 7 | 41-1788 | BUSBAR | 2 | |
| 8 | 41-1787 | COVER | 2 | |
| 9 | 44-7881 | CONNECTOR - tower (4-pin) | 4 | |
| 44-5839 | TERMINAL - female (16-14 ga) | 8 | ||
| 44-5884 | TERMINAL - female (20-18 ga) | 8 | ||
| 44-6324 | SEAL - cable (blue) | 8 | ||
| 44-8681 | SEAL - cable (red) | 8 |
