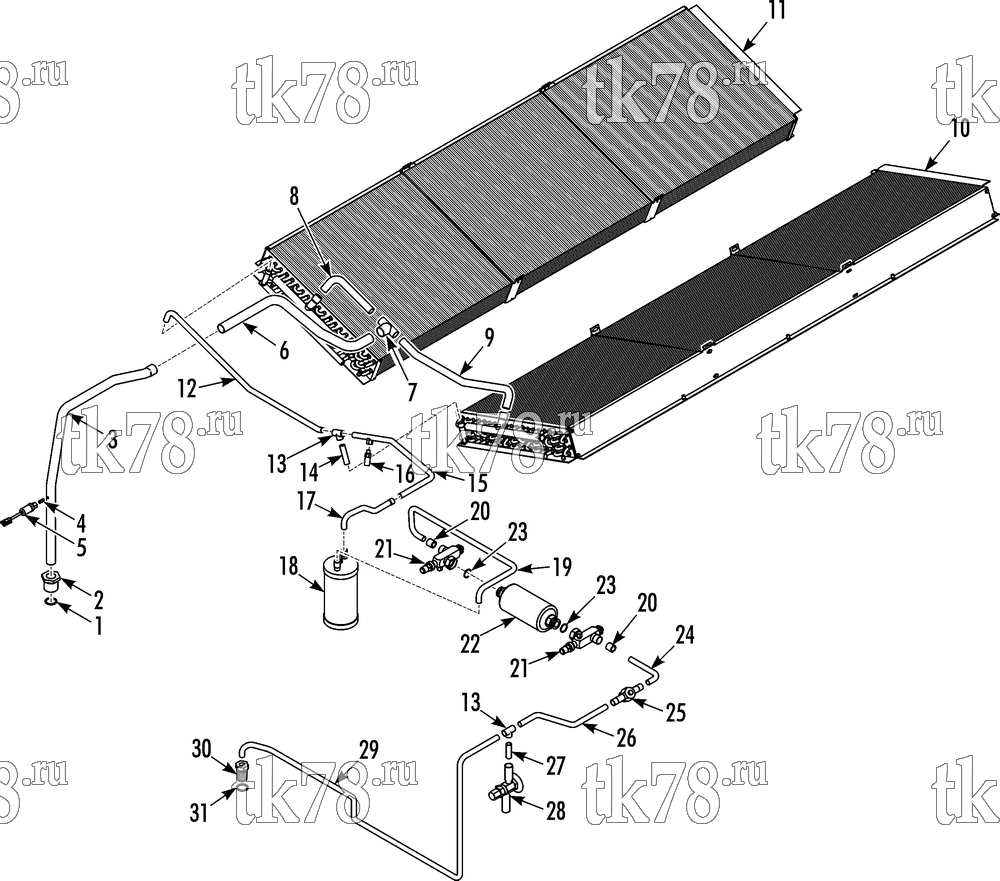

Установкa Thermo King AT16-M4 схема REFRIGERATION - CONDENSER (RLFHP1) – 269C5
Обновление от: 4/15/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-1777 | O-RING (1-3/16 id) | 1 | |
| 2 | 55-7537 | ADAPTER - bulkhead (#20) | 1 | |
| 55-5742 | LOCKWASHER - bulkhead (1.77 id) | 1 | ||
| 55-9231 | NUT - bulkhead (1-11/16) | 1 | ||
| 3 | 61-5119 | TUBE - discharge | 1 | |
| 4 | 66-9842 | VALVE | 2 | |
| 5 | 41-9043 | TRANSDUCER - discharge | 1 | |
| 6 | 61-5702 | TUBE - discharge to tee | 1 | |
| 7 | 55-6508 | TEE (7/8 x 7/8 x 1-1/8) | 1 | |
| 8 | 61-5701 | TUBE - tee to coil | 1 | |
| 9 | 61-5700 | TUBE - discharge, tee to condenser (roadside) | 1 | |
| 10 | 67-2673 | COIL - condenser (roadside) | 1 | |
| 11 | 67-2672 | COIL - condenser (curbside) | 1 | |
| 55-5639 | SCREW | 12 | ||
| 55-8711 | INSERT | 16 | ||
| 12 | 61-5703 | TUBE - condenser to tee (liquid) | 1 | |
| 13 | 55-904 | TEE (5/8 x 5/8 x 5/8) | 2 | |
| 14 | 66-9445 | TUBE | 1 | |
| 15 | 61-5705 | TUBE - joint to tee (liquid) | 1 | |
| 99-3060 | FITTING - saddle | 1 | ||
| 16 | 61-5066 | VALVE - relief | 1 | |
| 17 | 61-5465 | TUBE - liquid to receiver tank | 1 | |
| 18 | 67-2500 | TANK - receiver (see 244A9) | 1 | |
| 19 | 61-5466 | TUBE - liquid, receiver tank to bushing | 1 | |
| 20 | 55-5293 | BUSHING | 2 | |
| 21 | 66-5946 | VALVE - shutoff | 2 | |
| 22 | 306-221 | DEHYDRATOR | 1 | |
| 23 | 33-4239 | GASKET - teflon | 2 | |
| 24 | 61-5126 | TUBE - bushing to indicator (liquid) | 1 | |
| 25 | 66-2648 | INDICATOR - liquid (sight glass) | 1 | |
| 66-9273 | INDICATOR - dry eye | 1 | ||
| 26 | 61-5451 | TUBE - indicator to tee | 1 | |
| 27 | 66-6459 | TUBE - tee to valve | 1 | |
| 28 | 61-5185 | VALVE , expansion R134a | 1 | |
| 61-5129 | VALVE , expansion R407c | 1 | ||
| 29 | 61-5704 | TUBE - tee to fitting | 1 | |
| 30 | 55-9699 | ADAPTER - bulkhead (#12) | 1 | |
| 31 | 33-1162 | O-RING (3/4 id) | 1 | |
|
10-33-1162 | Уплотнитель, Sentry, SB-I, SUPER-II | 140 ₽ |
|
