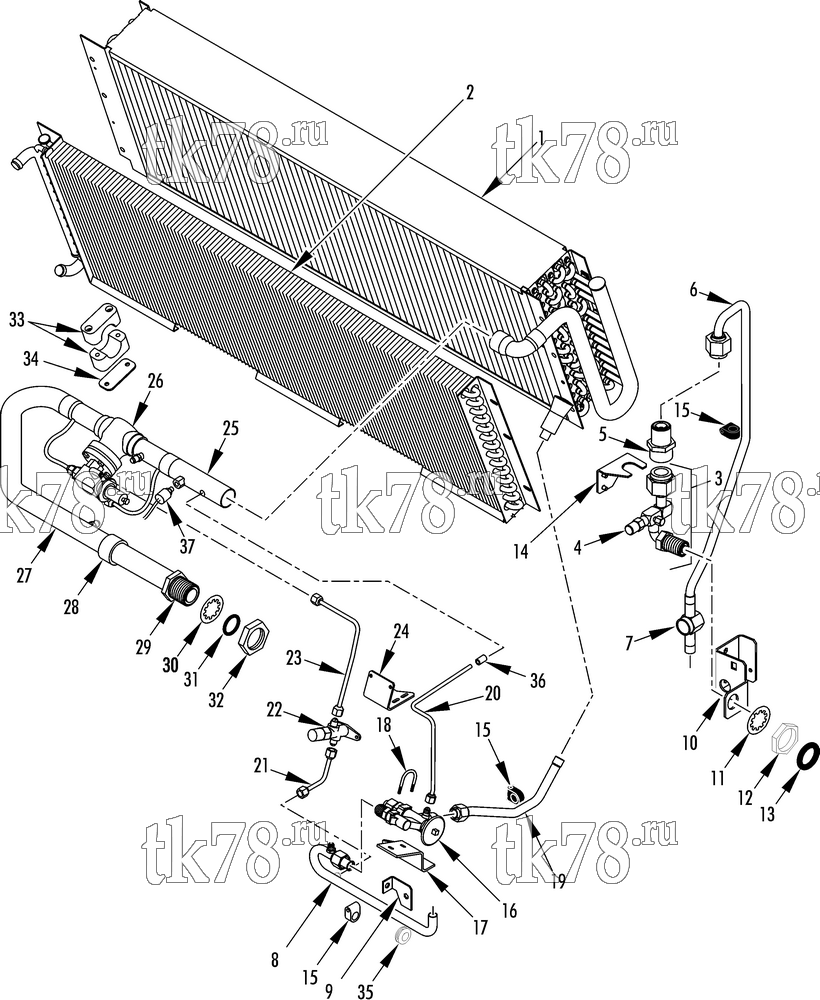

Установкa Thermo King AT15-M12 схема REFRIGERATION - EVAPORATOR (T11E) – 235G9
Обновление от: 8/9/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1496 | COIL - evaporator (lacquer coating, see 235E2) | 1 | |
| 67-1495 | COIL - evaporator (see 235E2) | 1 | ||
| 2 | 67-1312 | COIL - heater (lacquer coating, see 235E2) | 1 | |
| 67-1194 | COIL - heater (see 235E2) | 1 | ||
| 3 | 61-4374 | VALVE & TUBE - liquid | 1 | |
| 55-3214 | ELBOW | 1 | ||
| 55-9699 | ADAPTER - bulkhead (#12) | 1 | ||
| 55-5939 | SLEEVE - adapter | 1 | ||
| 55-5935 | NUT - shoulder | 1 | ||
| 4 | 306-661 | VALVE - shutoff | 1 | |
| 306-115 | CAP - valve | 1 | ||
| 5 | 61-4375 | FILTER - strainer | 1 | |
| 61-4899 | ADAPTER - bulkhead | 1 | ||
| 66-7790 | SCREEN | 1 | ||
| 61-4900 | SPACER - strainer | 1 | ||
| 33-1777 | O-RING (#16) | 1 | ||
| 33-1785 | O-RING (#12) | 1 | ||
| 55-5741 | LOCKWASHER (1.52 id) | 1 | ||
| 55-7111 | NUT - bulkhead adapter | 1 | ||
| 6 | 61-4376 | TUBE - strainer to sight glass | 1 | |
| 55-5938 | SLEEVE - adapter | 1 | ||
| 55-5293 | BUSHING | 1 | ||
| 55-5936 | NUT - shoulder | 1 | ||
| 7 | 66-2648 | INDICATOR - liquid | 1 | |
| 66-9273 | INDICATOR - dry eye | 1 | ||
| 8 | 61-4556 | TUBE - sight glass to expansion valve | 1 | |
| 66-874 | FITTING (1/4 flare) | 1 | ||
| 66-4139 | FITTING - saddle | 1 | ||
| 55-4737 | NUT | 1 | ||
| 9 | 92-1771 | BRACKET - support | 1 | |
| 10 | 92-7258 | BRACKET - support, valve | 1 | |
| 55-2977 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 11 | 55-7199 | LOCKWASHER (1.21 id) | 1 | |
| 12 | 55-6812 | NUT - bulkhead adapter | 1 | |
| 13 | 33-1162 | O-RING (3/4 id x 1/8 w) | 1 | |
|
10-33-1162 | Уплотнитель, Sentry, SB-I, SUPER-II | 140 ₽ |
|
| 14 | 92-7266 | BRACKET - filter | 1 | |
| 55-2957 | SCREW | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 15 | 91-758 | CLAMP - tube | 3 | |
| 55-2957 | SCREW - bracket | 3 | ||
| 55-3675 | SCREW - clamp | 3 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 16 | 66-6847 | VALVE - expansion (R134a) | 1 | |
| 66-5952 | VALVE - expansion (R22 & R407c) | 1 | ||
| 92-2016 | INSULATION - thermo bulb | A/R | ||
| 17 | 91-5560 | BRACKET - expansion valve | 1 | |
| 55-2977 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 18 | 55-5211 | U-BOLT - expansion valve | 1 | |
| 91-3084 | SPACER - expansion valve | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 19 | 66-7321 | TUBE - expansion valve to distributor | 1 | |
| 20 | 66-7324 | TUBE - equalizer | 1 | |
| 21 | 61-4557 | TUBE - bypass valve to liquid line | 1 | |
| 22 | 66-992 | VALVE - shutoff | 1 | |
| 55-2991 | SCREW | 2 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 55-4560 | NUT | 2 | ||
| 23 | 61-4558 | TUBE - epr to bypass valve | 1 | |
| 24 | 92-7348 | BRACKET - bypass valve | 1 | |
| 25 | 61-907 | TUBE - coil to valve | 1 | |
| 26 | 66-8122 | VALVE - epr (R134a, see 129C13) | 1 | |
| 66-5136 | VALVE - epr (R22 & R407c, see 129C13) | 1 | ||
| 66-5752 | FITTING - tube | 1 | ||
| 27 | 61-4559 | TUBE - epr to bulkhead | 1 | |
| 66-874 | FITTING (1/4 flare) | 1 | ||
| 28 | 92-2016 | TUBE - sponge (1.375 id x 1.850 od 2.5 in lg) | A/R | |
| 29 | 55-7073 | ADAPTER - bulkhead (#20) | 1 | |
| 30 | 55-5741 | LOCKWASHER (1.52 id) | 1 | |
| 31 | 33-1777 | O-RING - (1-3/16) | 1 | |
| 32 | 55-5739 | NUT (#20) | 1 | |
| 33 | 55-6020 | CLAMP - suction tube | 2 | |
| 55-6851 | SCREW | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 34 | 92-2707 | PLATE - clamp | 1 | |
| 35 | 33-287 | GROMMET (5/8 id) | 1 | |
| 36 | 55-6544 | CLAMP - tube | 2 | |
| 55-5698 | SCREW | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 1 | ||
| 37 | 41-4147 | SWITCH - lpco (R22, complete) | 1 | |
| 41-4209 | SWITCH - lpco (R407c, complete) | 1 | ||
| 41-5183 | SWITCH - only | 1 |
