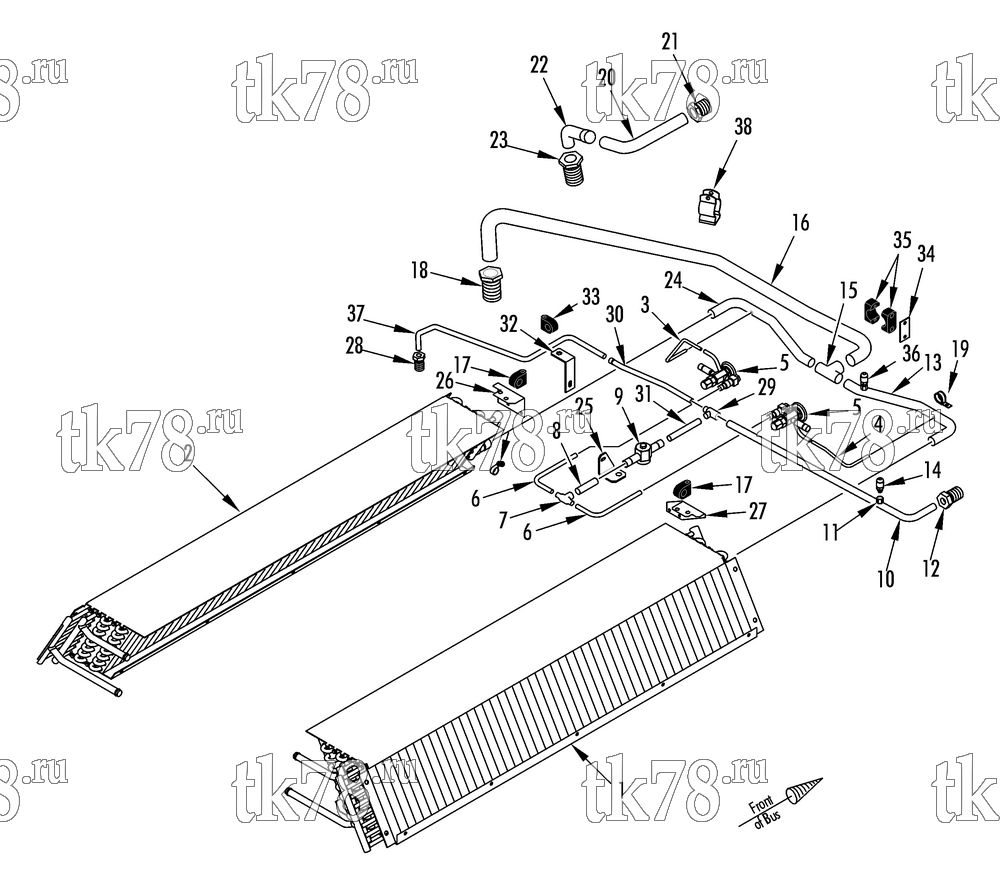

Установкa Thermo King AT13-M5 схема REFRIGERATION - EVAPORATOR (007355 & 008182) – 223B2
Обновление от: 1/11/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1897 | COIL - evaporator (roadside) | 1 | |
| 2 | 67-1898 | COIL - evaporator (curbside) | 1 | |
| 91-8127 | STRIP - sealing | A/R | ||
| 55-3843 | SCREW - coil | 20 | ||
| 55-2001 | FLATWASHER | 20 | ||
| 55-2964 | LOCKWASHER | 20 | ||
| 55-8752 | INSERT - threaded | 20 | ||
| 33-3706 | STRIP - sealing | A/R | ||
| 91-7754 | EXTRUSION - rubber | A/R | ||
| 3 | 61-1310 | TUBE - equalizer (curbside) | 1 | |
| 4 | 61-1311 | TUBE - equalizer (roadside) | 1 | |
| 5 | 61-1312 | VALVE - expansion (R134a) | 2 | |
| 61-1819 | VALVE - expansion (R22) | 2 | ||
| 61-811 | SCREEN - inlet | 1 | ||
| 6 | 61-1308 | TUBE - tee to valve | 2 | |
| 7 | 55-7142 | TEE | 1 | |
| 8 | 61-3907 | TUBE - indicator to tee | 1 | |
| 9 | 66-2648 | INDICATOR - liquid | 1 | |
| 66-9273 | INDICATOR - dry eye | 1 | ||
| 10 | 61-1912 | TUBE - adapter to tee | 1 | |
| 11 | 66-4553 | FITTING - saddle | 1 | |
| 12 | 66-5247 | ADAPTER - bulkhead (#16) | 1 | |
| 55-7111 | NUT - adapter | 1 | ||
| 55-7199 | LOCKWASHER | 1 | ||
| 33-1162 | GASKET - o-ring (3/4 id) | 1 | ||
|
10-33-1162 | Уплотнитель, Sentry, SB-I, SUPER-II | 140 ₽ |
|
| 13 | 61-1897 | TUBE - coil to tee | 1 | |
| 66-9842 | VALVE - schrader | 1 | ||
| 14 | 44-6965 | SWITCH - hpco (for connectors see 115D14, R134a) | 1 | |
| 41-307 | SWITCH - only (R134a) | 1 | ||
| 44-5833 | SWITCH - hpco (for connector see 115D14, R22) | 1 | ||
| 44-5834 | SWITCH - only (R22) | 1 | ||
| 15 | 55-6508 | TEE | 1 | |
| 16 | 61-4085 | TUBE - tee to epr valve | 1 | |
| 55-3307 | BUSHING - tube | 1 | ||
| 17 | 55-7013 | CLAMP - tube | 2 | |
| 55-4953 | NUT | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 18 | 55-7832 | ADAPTER - bulkhead (#20, ORS) | 2 | |
| 55-5742 | LOCKWASHER (1.75 id) | 2 | ||
| 55-9231 | NUT - bulkhead | 2 | ||
| 33-1777 | GASKET - o-ring (1-3/16 id) | 2 | ||
| 19 | 55-4552 | CLAMP (1.00 dia) | 2 | |
| 20 | 61-4086 | TUBE - discharge | 1 | |
| 21 | 55-7537 | ADAPTER - bulkhead (#20) | 1 | |
| 55-5742 | LOCKWASHER (1.75) | 1 | ||
| 55-9231 | NUT - bulkhead | 1 | ||
| 33-1777 | GASKET - o-ring (1-3/16 id) | 1 | ||
| 22 | 61-1915 | TUBE - discharge | 1 | |
| 23 | 55-7832 | ADAPTER - bulkhead (#20 ORS) | 1 | |
| 24 | 61-1898 | TUBE - coil to tee | 1 | |
| 25 | 92-1345 | BRACKET - sight glass | 1 | |
| 55-1587 | SCREW - bracket | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 26 | 92-1741 | BRACKET - expansion valve (roadside) | 1 | |
| 91-372 | CLAMP | 1 | ||
| 55-3462 | SCREW - clamp | 1 | ||
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-8711 | INSERT | 1 | ||
| 27 | 92-1742 | BRACKET - expansion valve (curbside) | 1 | |
| 55-2977 | SCREW - bracket | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-6526 | INSERT - threaded | 4 | ||
| 28 | 55-9699 | ADAPTER - bulkhead (#12) | 1 | |
| 55-5741 | LOCKWASHER (1.52 id) | 1 | ||
| 55-7111 | NUT - bulkhead | 1 | ||
| 33-1162 | GASKET - o-ring (3/4 id) | 1 | ||
|
|
10-33-1162 | Уплотнитель, Sentry, SB-I, SUPER-II | 140 ₽ |
|
| 29 | 306-1850 | TEE (7/8 x 5/8 x 5/8) | 1 | |
| 30 | 61-1911 | TUBE - tee to tube | 1 | |
| 31 | 61-1910 | TUBE - tee to indicator | 1 | |
| 32 | 92-2768 | BRACKET - liquid tube | 1 | |
| 33 | 91-758 | CLAMP - tube (.625 id) | 1 | |
| 55-3575 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 34 | 92-3265 | SUPPORT - clamp | 1 | |
| 35 | 91-5143 | CLAMP - tube (1-1/8) | 2 | |
| 91-6158 | PLATE - clamp | 1 | ||
| 55-4811 | SCREW - clamp | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-8711 | INSERT | 2 | ||
| 36 | 11-2886 | VALVE - pressure (see 119G12) | 1 | |
| 37 | 61-1916 | TUBE - bulkhead to swage | 1 | |
| 38 | 55-4488 | HANGER | 1 |
