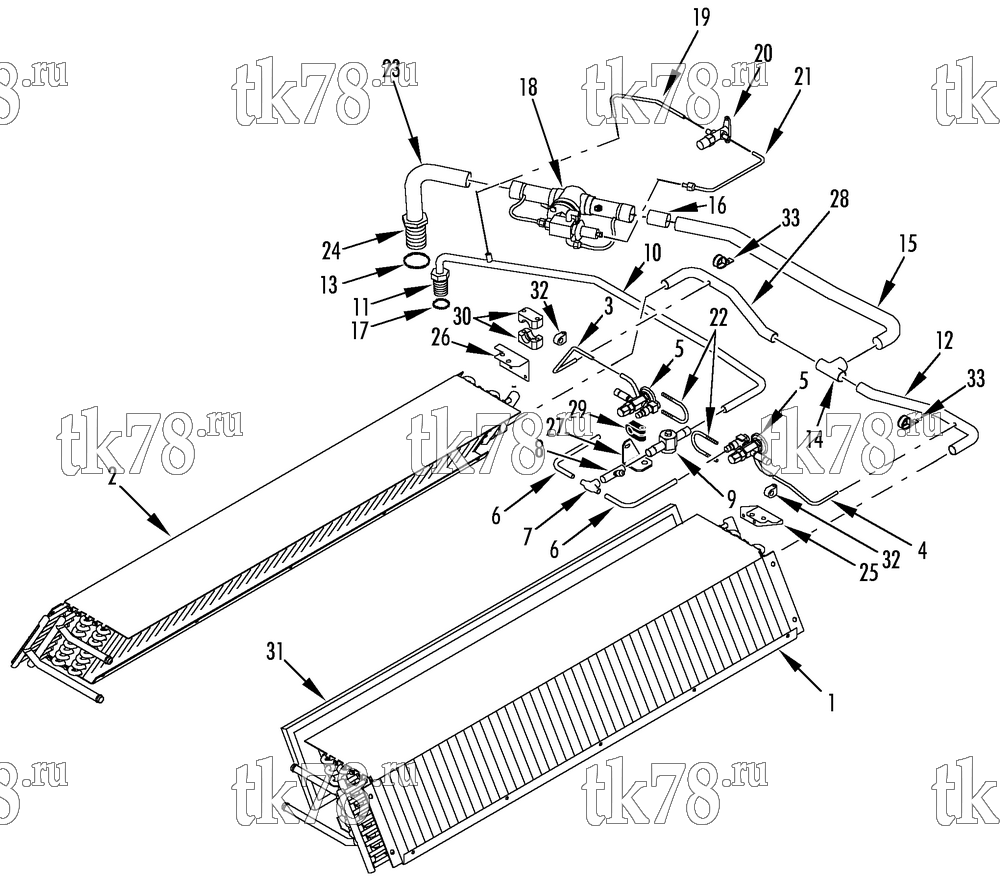

Установкa Thermo King AT13-M4 схема REFRIGERATION - EVAPORATOR (MASTER 099840 & 007354) – 192C1
Обновление от: 1/8/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1897 | COIL - evaporator/heater (roadside) | 1 | |
| 2 | 67-1898 | COIL - evaporator/heater (curbside) | 1 | |
| 91-8127 | STRIP - sealing | A/R | ||
| 55-3843 | SCREW - coil | 20 | ||
| 55-2001 | FLATWASHER | 20 | ||
| 55-2964 | LOCKWASHER | 20 | ||
| 55-8752 | INSERT - threaded | 20 | ||
| 3 | 61-1310 | TUBE - equalizer (curbside) | 1 | |
| 4 | 61-1311 | TUBE - equalizer (roadside) | 1 | |
| 5 | 61-1312 | VALVE - expansion | 2 | |
| 61-811 | SCREEN - inlet | 1 | ||
| 66-4213 | ELEMENT - power | 1 | ||
| 6 | 61-1308 | TUBE - tee to valve | 2 | |
| 7 | 55-7142 | TEE | 1 | |
| 8 | 66-9861 | TUBE - indicator to tee (M24A) | 1 | |
| 66-7546 | TUBE - indicator to tee (M24B) | 1 | ||
| 61-3958 | TUBE - indicator to tee (M41A) | 1 | ||
| 66-9842 | VALVE (Schrader) | 1 | ||
| 55-1983 | CAP - valve | 1 | ||
| 9 | 66-2648 | INDICATOR - liquid | 1 | |
| 66-9273 | INDICATOR - dry eye | 1 | ||
| 10 | 66-8798 | TUBE - adapter to indicator | 1 | |
| 66-5752 | FITTING - header | 1 | ||
| 11 | 55-9699 | ADAPTER - bulkhead (#12) | 1 | |
| 55-7199 | LOCKWASHER | 1 | ||
| 55-6812 | NUT - adapter | 1 | ||
| 12 | 61-1897 | TUBE - coil to tee (M24A) | 1 | |
| 61-1913 | TUBE - coil to tee (M24B) | 1 | ||
| 66-9842 | VALVE (Schrader) | 1 | ||
| 13 | 33-1777 | O-RING (1-3/16 id) | 1 | |
| 14 | 55-6508 | TEE | 1 | |
| 15 | 61-1899 | TUBE - tee to epr valve | 1 | |
| 16 | 55-3307 | BUSHING | 1 | |
| 17 | 33-1162 | O-RING (3/4 id) | 1 | |
|
10-33-1162 | Уплотнитель, Sentry, SB-I, SUPER-II | 140 ₽ |
|
| 18 | 66-8122 | VALVE - epr (see 129C13) | 1 | |
| 66-7181 | FITTING - refrigerant | 1 | ||
| 66-7182 | CAP - fitting | 1 | ||
| 55-4488 | HANGER - valve | 1 | ||
| 55-3462 | SCREW - hanger | 1 | ||
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-2086 | FLATWASHER | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 19 | 66-8797 | TUBE - bypass | 1 | |
| 20 | 66-4102 | VALVE - shutoff | 1 | |
| 55-2991 | SCREW - shutoff valve | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-7062 | INSERT - threaded | 2 | ||
| 21 | 66-7903 | TUBE - bypass | 1 | |
| 22 | 55-5211 | U-BOLT - expansion valve | 2 | |
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 4 | ||
| 23 | 66-7910 | TUBE - epr to adapter | 1 | |
| 24 | 55-8373 | ADAPTER - bulkhead (#20) | 1 | |
| 55-9231 | NUT - bulkhead | 1 | ||
| 55-5742 | LOCKWASHER (1.75 id) | 1 | ||
| 25 | 92-1741 | BRACKET - expansion valve (roadside) | 1 | |
| 26 | 92-1742 | BRACKET - expansion valve (curbside) | 1 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-6526 | INSERT - threaded | 1 | ||
| 27 | 92-1345 | ANGLE - liquid indicator | 1 | |
| 55-1587 | SCREW - angle | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 28 | 61-1898 | TUBE - coil to tee | 1 | |
| 29 | 91-372 | CLAMP - tube | 1 | |
| 55-3462 | SCREW - clamp | 1 | ||
|
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 1 | ||
| 30 | 91-5143 | CLAMP - tube | 4 | |
| 51-6158 | PLATE - clamp | 2 | ||
| 92-3265 | SPACER - plate | 2 | ||
| 31 | 91-6747 | FILTER - air | 2 | |
| 32 | 55-7143 | CLAMP - expansion valve | 2 | |
| 55-3675 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 33 | 55-4552 | CLAMP (1.00 dia) | 2 |
