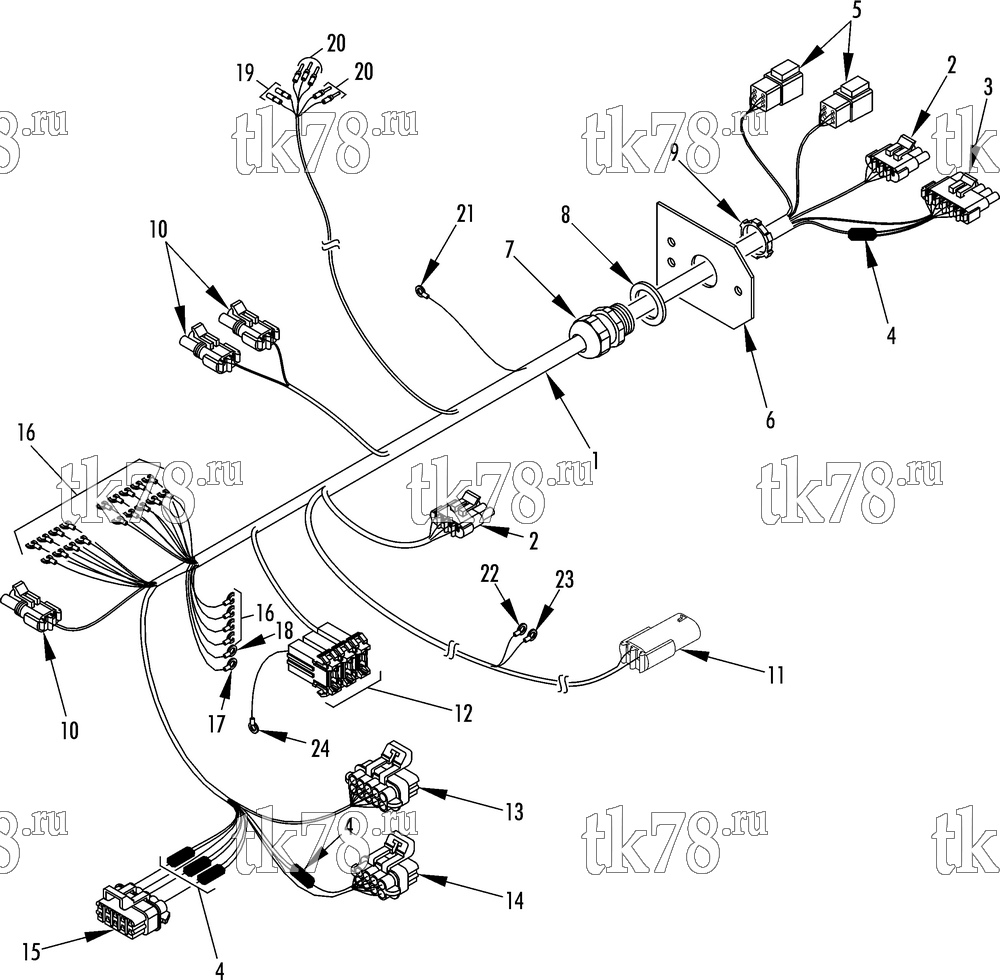

Установкa Thermo King AT13-M12 схема HARNESS SECONDARY UNIT CONTROL – 220E9
Обновление от: 2/9/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-2196 | HARNESS - secondary unit control | 1 | |
| 2 | 44-7881 | CONNECTOR - tower (4-pin) | 2 | |
| 44-5884 | TERMINAL - female (18-20 ga) | 8 | ||
| 44-8681 | SEAL - cable (red, 18-20 ga) | 8 | ||
| 3 | 44-7872 | CONNECTOR - tower (6-pin) | 1 | |
| 44-5884 | TERMINAL - female (18-20 ga) | 6 | ||
| 44-8681 | SEAL - cable (red, 18-20 ga) | 6 | ||
| 4 | 41-7681 | TUBING - heat shrink (1-1/2 in lg) | 5 | |
| 5 | 41-4281 | CONNECTOR (6-pin) | 2 | |
| 41-4282 | WEDGE - connector | 2 | ||
| 6 | 92-6109 | PLATE - harness | 1 | |
| 7 | 41-4817 | CONNECTOR - liquid tite | 1 | |
| 8 | 41-5359 | WASHER - sealing | 1 | |
| 9 | 55-2635 | NUT - lock | 1 | |
| 10 | 44-5838 | CONNECTOR - tower (2-pin) | 3 | |
| 44-5884 | TERMINAL - female (18-20 ga) | 6 | ||
| 44-8681 | SEAL - cable (red, 18-20 ga) | 6 | ||
| 11 | 44-5835 | CONNECTOR - 2 way (see 115D14) | 1 | |
| 44-5883 | TERMINAL - male (18-20 ga) | 2 | ||
| 44-8681 | SEAL - cable (red, 18-20 ga) | 2 | ||
| 12 | 41-2973 | FUSEHOLDER | 3 | |
| 13 | 41-4198 | CONNECTOR (10-pin, gray) | 1 | |
| 41-5054 | LOCK - secondary | 1 | ||
| 14 | 41-4199 | CONNECTOR (8-pin) | 1 | |
| 41-5055 | LOCK - secondary | 1 | ||
| 15 | 41-4197 | CONNECTOR (10-pin, black) | 1 | |
| 41-5054 | LOCK - secondary | 1 | ||
| 16 | 41-280 | TERMINAL - fork (16-22 ga, #6 red) | 24 | |
| 17 | 44-7245 | TERMINAL - ring (16-22 ga, #10 red) | 1 | |
| 18 | 44-2791 | TERMINAL - ring (blue #10, 14-16 ga) | 1 | |
| 19 | 44-5884 | TERMINAL - female (18-20 ga) | 2 | |
| 44-8681 | SEAL - cable (red, 18-20 ga) | 2 | ||
| 20 | 44-5883 | TERMINAL - male (18-20 ga) | 5 | |
| 44-8681 | SEAL - cable (red, 18-20 ga) | 5 | ||
| 21 | 44-2786 | TERMINAL - ring (14-16 ga, 3/8 blue) | 1 | |
| 22 | 41-281 | TERMINAL - ring (16-22 ga, #6 red) | 1 | |
| 23 | 651-295 | TERMINAL - ring (blue #6) | 1 | |
| 24 | 44-2789 | TERMINAL - ring (blue 1/4, 14-16 ga) | 1 |
