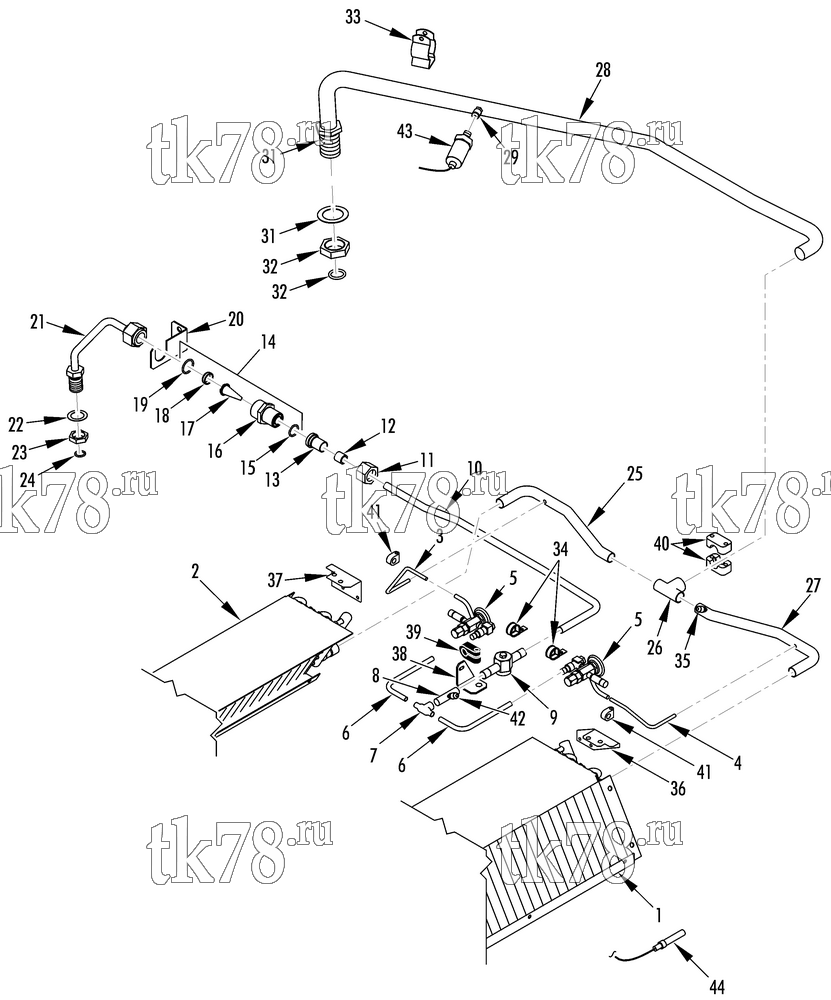

Установкa Thermo King AT13-M11 схема REFRIGERATION - EVAPORATOR (MASTER) – 240E4
Обновление от: 1/13/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1897 | COIL - evaporator/heater (roadside) | 1 | |
| 2 | 67-1898 | COIL - evaporator/heater (curbside) | 1 | |
| 91-8127 | STRIP - sealing | A/R | ||
| 55-3843 | SCREW - coil | 20 | ||
| 55-2001 | FLATWASHER | 20 | ||
| 55-2964 | LOCKWASHER | 20 | ||
| 55-8752 | INSERT - threaded | 20 | ||
| 3 | 61-1310 | TUBE - equalizer (curbside) | 1 | |
| 4 | 61-1311 | TUBE - equalizer (roadside) | 1 | |
| 5 | 61-1819 | VALVE - expansion | 2 | |
| 61-811 | SCREEN - inlet | 1 | ||
| 66-4213 | ELEMENT - power | 1 | ||
| 6 | 61-1308 | TUBE - tee to valve | 2 | |
| 7 | 55-7142 | TEE | 1 | |
| 8 | 61-3958 | TUBE - indicator to tee | 1 | |
| 66-9842 | VALVE (Schrader) | 1 | ||
| 55-1983 | CAP - valve | 1 | ||
| 9 | 66-2648 | INDICATOR - liquid | 1 | |
| 66-9273 | INDICATOR - dry eye | 1 | ||
| 10 | 61-4898 | TUBE - adapter to indicator | 1 | |
| 11 | 55-5936 | NUT - shoulder | 1 | |
| 12 | 55-5293 | BUSHING | 1 | |
| 13 | 55-5938 | SLEEVE | 1 | |
| 14 | 61-4375 | STRAINER | 1 | |
| 15 | 33-1785 | O-RING (15/16 id) | 1 | |
| 16 | 61-4899 | ADAPTER | 1 | |
| 17 | 66-7790 | SCREEN | 1 | |
| 18 | 61-4900 | SPACER | 1 | |
| 19 | 33-1777 | O-RING (1-3/16 id) | 2 | |
| 20 | 92-7314 | BRACKET - strainer | 1 | |
| 55-2957 | SCREW | 2 | ||
| 55-4414 | WASHER | 2 | ||
| 55-5970 | WASHER - sealing | 2 | ||
| 55-4953 | NUT - lock | 2 | ||
| 21 | 61-4818 | TUBE - liquid line to strainer | 1 | |
| 55-5935 | NUT - tube | 1 | ||
| 55-9699 | ADAPTER - tube | 1 | ||
| 22 | 55-7199 | LOCKWASHER (1.21 id) | 1 | |
| 23 | 55-6812 | NUT - adapter | 1 | |
| 24 | 33-1162 | O-RING (3/4 id) | 1 | |
|
10-33-1162 | Уплотнитель, Sentry, SB-I, SUPER-II | 140 ₽ |
|
| 25 | 61-1898 | TUBE - coil to tee | 1 | |
| 26 | 55-6508 | TEE | 1 | |
| 27 | 61-1897 | TUBE - coil to tee | 1 | |
| 28 | 61-4085 | TUBE - suction to tee | 1 | |
| 29 | 11-2886 | VALVE (see 119G12) | 1 | |
| 30 | 55-7832 | ADAPTER - bulkhead (#20) | 1 | |
| 31 | 55-5742 | LOCKWASHER (1.75 id) | 1 | |
| 32 | 55-9231 | NUT - bulkhead | 1 | |
| 33 | 55-4488 | HANGER | 1 | |
| 55-2957 | SCREW - hanger mounting | 1 | ||
| 55-1800 | LOCKWASHER - hanger mounting | 1 | ||
| 55-2086 | FLATWASHER - hanger mounting | 1 | ||
| 55-6526 | INSERT - hanger mounting | 1 | ||
| 55-2977 | SCREW | 1 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT - lock | 1 | ||
| 34 | 55-4552 | CLAMP - expansion valve | 2 | |
| 55-1587 | SCREW | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-8711 | INSERT - threaded | 2 | ||
| 35 | 66-9842 | VALVE | 1 | |
| 36 | 92-1741 | BRACKET - expansion valve (roadside) | 1 | |
| 37 | 92-1742 | BRACKET - expansion valve (curbside) | 1 | |
| 55-2957 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-8711 | INSERT - threaded | 1 | ||
| 38 | 92-1345 | ANGLE - liquid indicator | 1 | |
| 55-2957 | SCREW - angle | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 39 | 91-372 | CLAMP - tube | 1 | |
| 55-3462 | SCREW - clamp | 1 | ||
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-2086 | FLATWASHER | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 40 | 91-5143 | CLAMP - tube | 4 | |
| 91-6158 | PLATE - clamp | 2 | ||
| 92-3265 | SPACER - plate | 2 | ||
| 55-4811 | SCREW - clamp | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT - lock | 2 | ||
| 41 | 55-7143 | CLAMP - expansion valve | 2 | |
| 55-3675 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 42 | 91-5143 | VALVE - pressure (see 119G12) | 1 | |
| 43 | 41-4147 | SWITCH - lpco | 1 | |
| 41-5183 | SWITCH (only) | 1 | ||
| 44-7330 | CONNECTOR - shroud (1-pin, see 115D14 for connectors) | 1 | ||
| 44-7327 | CONNECTOR - tower (1-pin, see 115D14 for connectors) | 1 | ||
| 41-8962 | HARNESS - lpco (see 115D14 for connectors) | 1 | ||
| 44 | 41-7706 | SENSOR - temperature | 1 |
