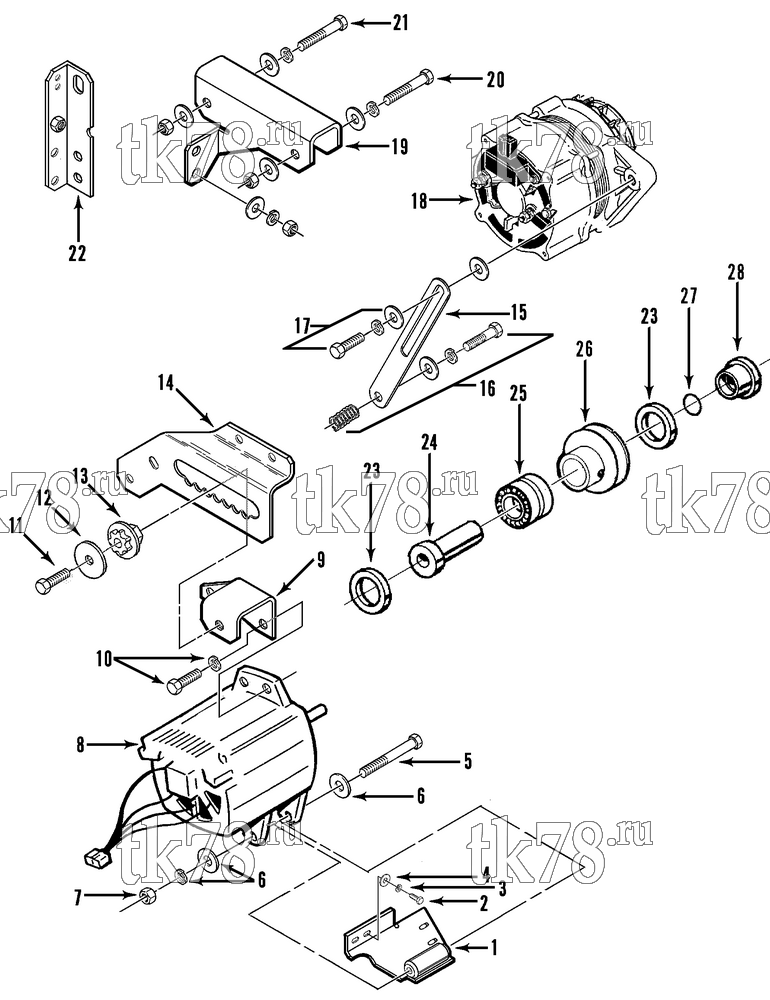

Установкa Thermo King AT12 схема ALTERNATOR MOUNTING GROUP – 143F9
Обновление от: 11/28/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-7362 | BRACKET - alternator | 1 | |
| 2 | 55-7412 | SCREW - bracket (M10) | 2 | |
| 3 | 55-7347 | LOCKWASHER | 2 | |
| 4 | 55-7357 | FLATWASHER | 2 | |
| 55-3048 | SCREW - bracket (3/8) | 2 | ||
| 55-2641 | FLATWASHER | 2 | ||
| 5 | 55-5702 | SCREW - alternator | 1 | |
| 6 | 55-2173 | FLATWASHER | 2 | |
| 7 | 55-4952 | NUT | 1 | |
| 8 | 44-3020 | ALTERNATOR (24V/24V, see 73F8) | 1 | |
| 41-3021 | ALTERNATOR (24V/12V, see 67D13) | 1 | ||
| US-41-3021 | Генератор 150 А | 141 810 ₽ |
|
|
| 10-41-3021 | Генератор 24В, 150А | 92 860 ₽ |
|
|
| 9 | 91-7363 | BRACKET - alternator | 1 | |
| 10 | 55-7564 | SCREW - bracket | 2 | |
| 55-2159 | LOCKWASHER | 2 | ||
| 55-2641 | FLATWASHER | 2 | ||
| 11 | 55-3486 | SCREW - sprocket | 1 | |
| 55-2159 | LOCKWASHER | 1 | ||
| 12 | 55-2641 | FLATWASHER | 1 | |
| 13 | 11-8775 | SPROCKET - pulley | 1 | |
| 14 | 91-7364 | BRACKET - alternator | 1 | |
| 55-6574 | SCREW - bracket (M8) | 1 | ||
| 55-8637 | SCREW - bracket (M8) | 1 | ||
| 55-2159 | LOCKWASHER | 2 | ||
| 55-7085 | FLATWASHER | 2 | ||
| 55-7825 | NUT | 2 | ||
| 15 | 91-7368 | BRACKET - alternator adjusting | 1 | |
| 16 | 55-4545 | SCREW - alternator | 1 | |
| 17 | 55-5758 | SCREW - adjust | 1 | |
| 18 | 45-2254 | ALTERNATOR (37 amp, see 208F4) | 1 | |
|
10-41-6780 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
|
10-45-2589 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
| 41-8461 | ALTERNATOR (37 amp, Standard Life Plus) | 1 | ||
|
|
10-41-6780 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
|
|
10-45-2589 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
| 845-2254 | ALTERNATOR (37 amp, remanufactured) | 1 | ||
| 19 | 91-7366 | BRACKET - support | 1 | |
| 20 | 55-8751 | SCREW - bracket | 1 | |
| 21 | 55-6987 | SCREW - bracket | 1 | |
| 22 | 91-7365 | BRACKET - alternator | 1 | |
| 55-5022 | SCREW - bracket | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-371 | FLATWASHER | 2 | ||
| 23 | 33-1924 | SEAL | 2 | |
|
10-33-1924 | Сальник ролика натяжителя | 1 550 ₽ |
|
| 24 | 77-1762 | SPINDLE - idler | 1 | |
| 25 | 77-2389 | BEARING | 1 | |
| 77-2389 OEM | Подшипник | 4 430 ₽ |
|
|
| 10-77-2389 | Подшипник промежуточного вала SMX / SL | 2 140 ₽ |
|
|
| 26 | 77-2370 | PULLEY - idler | 1 | |
| 27 | 33-1162 | O-RING | 1 | |
|
10-33-1162 | Уплотнитель, Sentry, SB-I, SUPER-II | 140 ₽ |
|
| 28 | 33-1163 | RING - seal | 1 |
