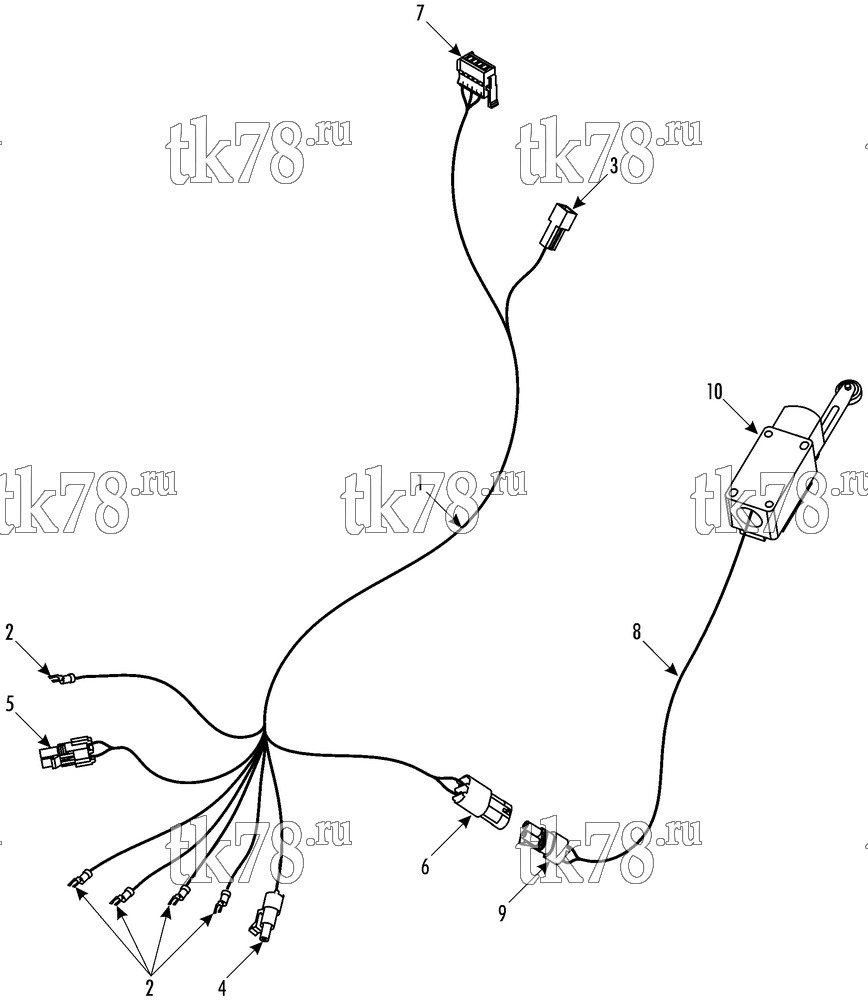

Установкa Thermo King AP-II X 1012 схема HARNESS KIT - UNIT - PP - DOOR SWITCH (718653) – 168H9
Обновление от: 6/18/02
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-4708 | HARNESS - unit to power pack | 1 | |
| 2 | 41-438 | TERMINAL - forked | 5 | |
| 3 | 44-6264 | CONNECTOR (1-pin, male) | 1 | |
| 4 | 44-7327 | CONNECTOR - tower (1-pin) | 1 | |
| 5 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 6 | 44-5835 | CONNECTOR - shroud (2-pin, male) | 1 | |
| 7 | 41-3855 | TERMINAL - connector (10-pin, female) | 1 | |
| 8 | 41-4709 | HARNESS - power pack to door switch | 1 | |
| 9 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 10 | 41-4575 | SWITCH - door | 1 |
