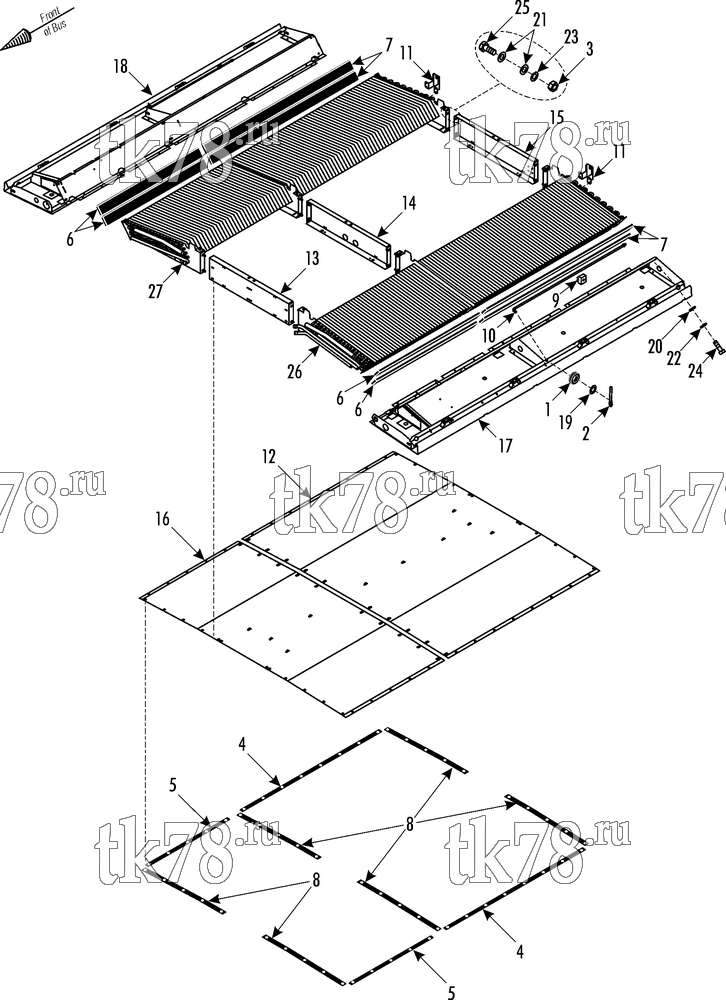

Установкa Thermo King AP-II X 1012 схема CONDENSER FRAME & INSULATION – 168G6
Обновление от: 2/27/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-314 | GROMMET - rod | 2 | |
| 2 | 55-3458 | PIN - cotter | 2 | |
| 3 | 55-7825 | NUT | 12 | |
| 4 | 92-2007 | STRIP - condenser (bottom, back side) | 2 | |
| 5 | 92-2008 | STRIP - condenser (bottom, front side) | 2 | |
| 6 | 91-9883 | STRIP - condenser (side, front) | 4 | |
| 7 | 92-2009 | STRIP - condenser (side, back) | 4 | |
| 8 | 91-9880 | STRIP - condenser (bottom, middle) | 6 | |
| 9 | 91-7386 | CLAMP - rod | 2 | |
| 55-7368 | WASHER | 2 | ||
| 55-5047 | RIVET - clamp | 2 | ||
| 10 | 92-1163 | ROD - cover | 2 | |
| 11 | 91-9881 | HOLDER - rod | 2 | |
| 12 | 98-6318 | PLATE - bottom | 1 | |
| 13 | 92-2010 | PANEL - front | 1 | |
| 14 | 92-2011 | PANEL - center | 1 | |
| 15 | 92-2012 | PANEL - back | 1 | |
| 16 | 98-6319 | PLATE - bottom | 1 | |
| 17 | 98-6320 | FRAME - condenser (left) | 1 | |
| 18 | 98-6321 | FRAME - condenser (right) | 1 | |
| 19 | 55-6995 | FLATWASHER | 2 | |
| 20 | 55-7075 | FLATWASHER | 12 | |
| 21 | 55-7085 | FLATWASHER | 24 | |
| 22 | 55-7170 | LOCKWASHER | 12 | |
| 23 | 55-7342 | LOCKWASHER | 12 | |
| 24 | 55-6994 | SCREW - frame to coil | 12 | |
| 25 | 55-7341 | SCREW - panel to coil | 12 | |
| 26 | 67-1825 | COIL - condenser (roadside, see grid 168G0) | 1 | |
| 27 | 67-1833 | COIL - condenser (curbside, see grid 168G0) | 1 |
