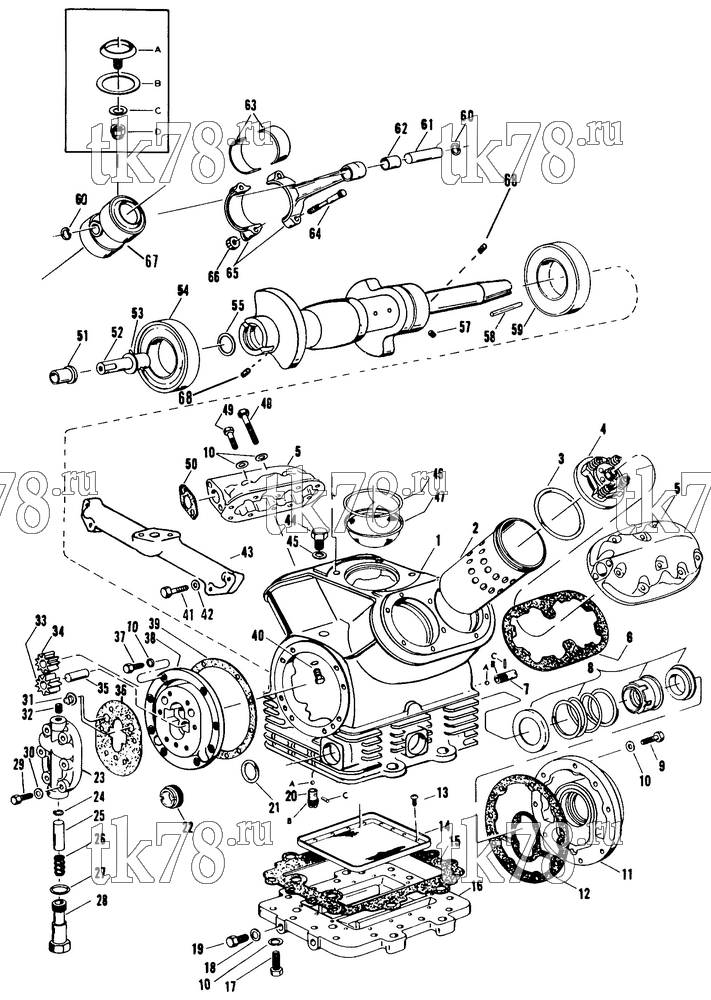

Установкa Thermo King AM2 схема COMPRESSOR (SHALLOW SUMP) – 25G5
Обновление от: 5/2/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| N/A | COMPRESSOR - X426 | 1 | ||
| 1 | 23-114 | BODY - compressor | 1 | |
| 2 | 22-297 | SLEEVE - cylinder | 4 | |
|
10-22-297 | Цилиндр компрессора X214/X426 | 5 180 ₽ |
|
| 3 | 33-408 | O-RING | 4 | |
|
10-33-408 | Прокладка клапана, X214/418/426/430 | 360 ₽ |
|
| 4 | 22-990 | PLATE - valve | 4 | |
|
22-990 OEM | Клапан нагнетания, X214/418/426/430/426P/430P | 9 010 ₽ |
|
|
10-22-990 | Клапан нагнетания, X214/418/426/430/426P/430P | 5 100 ₽ |
|
| 5 | 22-788 | HEAD - cylinder | 2 | |
|
10-22-788 | Головка компрессора | 14 780 ₽ |
|
| 6 | 33-2552 | GASKET - compressor cylinder head | 2 | |
|
10-33-2552 | Прокладка головки компрессора X214/418/426/430 | 680 ₽ |
|
| 7 | 22-568 | VALVE - check | 2 | |
|
10-22-568 | Обратный клапан, X426/430/640 | 800 ₽ |
|
| 8 | 22-778 | SEAL - crankshaft | 1 | |
| 22-778 OEM | Сальник коленвала, X418/X426/X430 | 14 860 ₽ |
|
|
|
10-22-778 | Сальник коленвала, X418/X426/X430 | 11 920 ₽ |
|
|
PP-22-778 | Сальник коленвала, X418/X426/X430 | 2 720 ₽ |
|
| 9 | 55-2381 | SCREW | 6 | |
| 10 | 55-896 | FLATWASHER | 57 | |
| 11 | 22-233 | PLATE & HUB - drive bearing | 1 | |
| 12 | 33-2513 | GASKET - drive end | 1 | |
|
10-33-2513 | Прокладка передней крышки, X418/426/430/640 | 1 450 ₽ |
|
| PP-33-2513 | Прокладка передней крышки, X418/426/430/640 | 500 ₽ |
|
|
| 13 | 55-2278 | SCREW | 16 | |
| 14 | 22-142 | SCREEN - filter | 1 | |
| 15 | 33-115 | GASKET - oil sump | 1 | |
| 16 | 22-146 | SUMP - oil | 1 | |
| 33-820 | O-RING | 1 | ||
| 17 | 55-129 | SCREW | 16 | |
| 18 | 55-386 | WASHER (copper) | 2 | |
| 19 | 55-329 | SCREW - plug | 2 | |
| 20 | 22-145 | VALVE - check | 2 | |
| 21 | 33-822 | O-RING - sight glass | 1 | |
| 10-33-822 | О-ринг смотрового окна, X214/X426/X430 | 290 ₽ |
|
|
| 22 | 22-350 | SIGHT GLASS | 2 | |
| 10-22-350 | Окно уровня масла, X214/418/426/430 | 3 730 ₽ |
|
|
| 23 | 22-721 | PLATE - oil pump cover | 1 | |
| 22-784 | REGULATOR - oil pressure | 1 | ||
|
10-22-784 | Регулятор давления масла, X214/426/430/640 | 3 440 ₽ |
|
| 24 | NSS | RING - retaining | 1 | |
| 25 | NSS | PLUNGER | 1 | |
| 26 | NSS | SPRING | 1 | |
| 27 | 33-672 | O-RING | 1 | |
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 28 | NSS | REGULATOR | 1 | |
| 29 | 55-2380 | SCREW | 6 | |
| 30 | 55-895 | FLATWASHER | 6 | |
| 31 | 22-226 | VALVE - check | 2 | |
| 32 | 55-433 | PLUG - pipe | 1 | |
| 33 | 20-127 | KIT - oil pump gear | 1 | |
| 10-20-127 | Набор шестеренок масляного насоса компрессора 426, 214 | 49 440 ₽ |
|
|
| 34 | Not Used | |||
| 35 | 55-553 | SHAFT - idler | 1 | |
| 36 | 33-737 | GASKET - oil pump cover | 1 | |
| 37 | 55-2381 | SCREW | 8 | |
| 38 | 22-227 | PLATE - pump bearing (incl 35 & 51) | 1 | |
| 39 | 33-110 | GASKET | 1 | |
|
10-33-110 | Прокладка масляного насоса компрессора X426 | 1 030 ₽ |
|
| 40 | 22-653 | VALVE - check | 2 | |
| 10-22-653 | Обратный клапан, X214/418/426/430/640 | 1 830 ₽ |
|
|
| 41 | 55-2306 | SCREW | 4 | |
| 30-55-2306 | Болт 3/8x1 5/8 | 680 ₽ |
|
|
| 42 | 55-896 | FLATWASHER | 4 | |
| 43 | 22-298 | MANIFOLD - discharge | 1 | |
| 44 | 55-6750 | PLUG | 1 | |
| 10-55-6750 | Пробка | 1 660 ₽ |
|
|
| 45 | 33-1223 | O-RING | 1 | |
| 46 | 33-1221 | O-RING | 1 | |
|
10-33-1221 | О-ринг под клапан - регулятор давления | 280 ₽ |
|
| 47 | 22-306 | SCREEN - suction | 1 | |
|
10-22-306 | Сетка всасывания, X426/430 | 2 200 ₽ |
|
|
10-22-306F | Сетка всасывания с фильтром, X426/430/426P/430P | 2 200 ₽ |
|
| 48 | 55-1993 | SCREW | 8 | |
| 30-55-1993 | Болт | 680 ₽ |
|
|
| 49 | 55-2306 | SCREW | 12 | |
| 30-55-2306 | Болт 3/8x1 5/8 | 680 ₽ |
|
|
| 50 | 33-2805 | GASKET | 2 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 51 | 22-155 | BUSHING - oil pump | 1 | |
| 52 | 22-305 | SHAFT - oil pump | 1 | |
| 53 | 55-490 | PIN - dowel | 1 | |
| 54 | 77-169 | BEARING - ball | 1 | |
|
10-77-169 | Подшипник компрессора, X430/430P | 2 060 ₽ |
|
| 55 | 33-239 | O-RING | 1 | |
| 33-239 OEM | О-ринг крышки масляного насоса компрессора X214/426/430 | 60 ₽ |
|
|
| 56 | 22-374 | CRANKSHAFT | 1 | |
| 57 | 22-123 | PLUG - oil metering | 1 | |
| 58 | 55-787 | KEY - woodruff | 1 | |
| 59 | 77-167 | BEARING - ball | 1 | |
|
10-77-167 | Подшипник коленвала компрессора (со стороны привода) | 4 400 ₽ |
|
| PP-77-167 | Подшипник коленвала компрессора X426/430 | 2 670 ₽ |
|
|
| 60 | 55-2122 | RING - retaining | 8 | |
| 61 | NSS | PIN - piston | 4 | |
| 62 | 11-475 | BUSHING - piston pin | 4 | |
| 63 | 22-1246 | BEARING SET - connecting rod (standard) | 4 | |
|
10-22-1246 | Вкладыш шатунный, STD, X214/418/426/430/426P/430P | 1 400 ₽ |
|
|
PP-22-1246 | Вкладыш шатунный, STD, X214/418/426/430/426P/430P | 500 ₽ |
|
| 22-1264 | BEARING SET - connecting rod (0.005) | 4 | ||
| 22-1265 | BEARING SET - connecting rod (0.010) | 4 | ||
| 10-22-1265 | Вкладыш шатунный, +0.01, X214/418/426/430 | 1 500 ₽ |
|
|
|
PP-22-1265 | Вкладыш шатунный, +0.01, X214/418/426/430 | 960 ₽ |
|
| 22-1266 | BEARING SET - connecting rod (0.020) | 4 | ||
|
10-22-1266 | Вкладыш шатунный, +0.02, X214/418/426/430 | 1 500 ₽ |
|
| 22-1267 | BEARING SET - connecting rod (0.030) | 4 | ||
| 10-22-1267 | Вкладыш шатунный, +0.03, X214/418/426/430 | 1 500 ₽ |
|
|
| 64 | 55-1682 | BOLT - connecting rod | 8 | |
| 65 | 22-639 | ROD - connecting (incl 62-64 & 66) | 4 | |
|
10-22-639 | Шатун компрессора X214/418/426/430/426P/430P | 3 920 ₽ |
|
| 66 | 51-115 | NUT (12 point) | 8 | |
| 67 | 22-849 | PISTON (incl 60 & 61) | 4 | |
|
10-22-849 | Поршень компрессора, к-т, D214/X214/X418/X426/X640 | 6 680 ₽ |
|
| 22-212 | HEAD - piston | 1 | ||
| 22-210 | REED - suction | 1 | ||
| 55-895 | FLATWASHER | 1 | ||
| 51-115 | NUT | 1 | ||
| 68 | 55-433 | PLUG - pipe (socket head) | 2 | |
| 67-404 | OIL - synthetic (1 gal) | 1 | ||
| 67-426 | OIL - petroleum | 1 | ||
| 30-244 | KIT - gasket | 1 | ||
|
10-30-244 | Набор прокладок компрессора, 426 | 5 600 ₽ |
|
| 203-346 | KIT - acid test | 1 |
