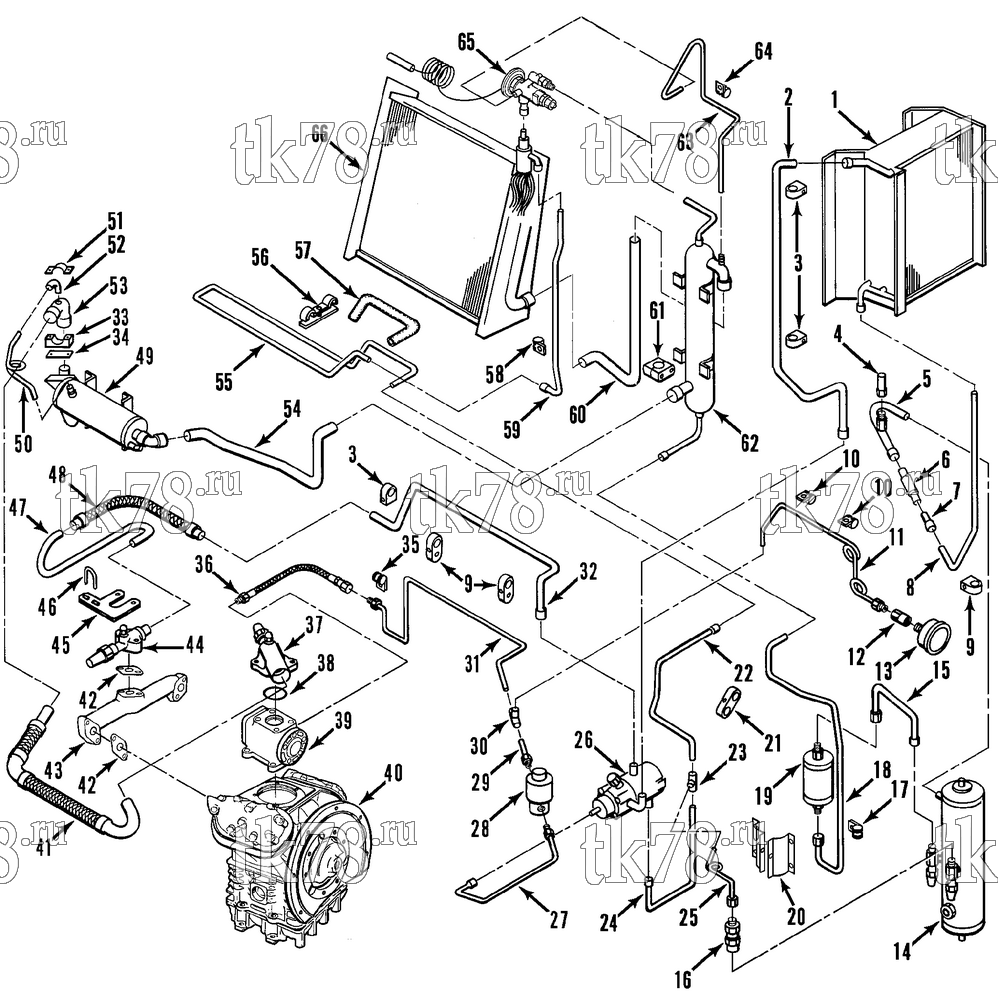

Установкa Thermo King схема REFRIGERATION COMPONENTS – 97E6
Обновление от: 5/3/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-912 | COIL - condenser (see 90F10) | 1 | |
| 91-1562 | NAMEPLATE - Pressure Vessel | 1 | ||
| 2 | 66-5325 | TUBE - 3-way to condenser | 1 | |
| 3 | 91-372 | CLAMP - tube (see 84B14) | 2 | |
| 4 | 66-7392 | VALVE - relief (high pressure) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 5 | 66-5828 | TUBE - valve to tank | 1 | |
| 99-3060 | FITTING - saddle | 1 | ||
| 6 | 66-5721 | VALVE - check | 1 | |
| 66-5721 OEM | Обратный клапан | 19 660 ₽ |
|
|
| 7 | 66-4223 | TUBE - valve | 1 | |
| 8 | 66-5498 | TUBE - coil to valve | 1 | |
| 9 | 91-373 | CLAMP - tube (see 84B14) | 1 | |
| 10 | 55-546 | CLAMP - tube | 2 | |
| 55-1230 | SCREW - clamp | 2 | ||
| 55-1511 | LOCKWASHER | 2 | ||
| 11 | 66-5331 | TUBE - tee to gauge | 1 | |
| 12 | 66-5330 | CONNECTOR - gauge | 1 | |
| 13 | 66-4907 | GAUGE - compound | 1 | |
| 91-870 | LENS - gauge | 1 | ||
| 14 | 67-1179 | TANK - receiver (see 66B4) | 1 | |
| 99-9928 | NAMEPLATE - Pressure Vessel | 1 | ||
| 15 | 66-5834 | TUBE - receiver to drier | 1 | |
| 16 | 66-5501 | VALVE - check | 1 | |
| 17 | 55-3065 | CLAMP - tube | 1 | |
| 18 | 66-5833 | TUBE - drier to exchanger | 1 | |
| 19 | 61-600 | DEHYDRATOR (see 97A14) | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 8 100 ₽ |
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 490 ₽ |
|
| 20 | 99-1617 | CLAMP - dehydrator (see 97A14) | 2 | |
| 21 | 91-445 | CLAMP - tube (see 84B14) | 1 | |
| 22 | 66-5351 | TUBE - tee to defrost | 1 | |
| 23 | 55-6434 | TEE | 1 | |
| 24 | 66-5352 | TUBE - 3-way valve to tee | 1 | |
| 25 | 66-5328 | TUBE - check valve to tee | 1 | |
| 26 | 66-8804 | VALVE - 3-way (see 86A3) | 1 | |
| 55-214 | SCREW - valve | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 27 | 66-5320 | TUBE - 3-way to solenoid | 1 | |
| 28 | 66-5316 | VALVE - pilot solenoid | 1 | |
| 41-1525 | COIL | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 55-8786 | NUT - valve | 1 | ||
| 91-1434 | SPACER - solenoid | 1 | ||
| 55-3230 | SCREW - solenoid | 2 | ||
| 55-414 | LOCKWASHER | 2 | ||
| 29 | 66-5353 | TUBE - solenoid | 1 | |
| 66-5354 | NUT - flare | 1 | ||
| 30 | 66-4346 | TEE | 1 | |
| 31 | 66-5355 | TUBE - hose to tee | 1 | |
| 55-5607 | ADAPTER - flare | 1 | ||
| 32 | 66-5380 | TUBE - vibrasorber to 3-way | 1 | |
| 33 | 55-6020 | CLAMP - tube | 1 | |
| 34 | 91-1749 | SPACER - clamp | 1 | |
| 35 | 55-2536 | CLAMP - tube | 2 | |
| 36 | 66-7472 | HOSE - throttling | 1 | |
| 66-7472 OEM | Шланг компрессора, SB-II/III / SMX | 14 470 ₽ |
|
|
| 37 | 66-5318 | VALVE - suction | 1 | |
| 66-5318 OEM | Всасывающий клапан X426/430/640 | 42 100 ₽ |
|
|
|
10-66-5318 | Всасывающий клапан X426/430/640 | 28 770 ₽ |
|
| 38 | 33-230 | O-RING - valve (1.875 id) | 1 | |
|
10-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 380 ₽ |
|
| PP-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 220 ₽ |
|
|
| 39 | 66-5935 | VALVE - throttling (30s & 50s, see 93C9) | 1 | |
| 40 | N/A | COMPRESSOR (see 72A12) | 1 | |
| 41 | 66-6024 | VIBRASORBER - suction | 1 | |
|
10-66-6024 | Вибросорбер всасывания, SB-XXX/SB-I/II/III | 25 560 ₽ |
|
| PP-66-6024 | Вибросорбер всасывания, SB-XXX/SB-I/II/III | 12 400 ₽ |
|
|
| 42 | 33-2805 | GASKET | 3 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 43 | 22-735 | MANIFOLD - discharge | 1 | |
|
10-22-735 | Коллектор компрессора X430 | 36 730 ₽ |
|
| 44 | 66-129 | VALVE - discharge | 1 | |
|
10-66-129 | Сервисный вентиль, X426/430 | 22 340 ₽ |
|
| 45 | 91-9135 | BRACKET - discharge tube | 1 | |
| 46 | 55-5920 | U-BOLT | 1 | |
| 55-5292 | NUT | 2 | ||
| 55-431 | FLATWASHER | 2 | ||
| 47 | 66-4987 | TUBE - discharge | 1 | |
| 48 | 66-5784 | VIBRASORBER - discharge | 1 | |
|
10-66-5784 | Вибросорбер нагнетания, SB/SBIII/SMX/SL/SLe | 10 400 ₽ |
|
| PP-66-5784 | Вибросорбер нагнетания, SB/SBIII/SMX/SL/SLe | 6 000 ₽ |
|
|
| 49 | 67-1195 | TANK - accumulator | 1 | |
| 50 | 66-5327 | TUBE - accumulator balance | 1 | |
| 51 | 91-1748 | CLAMP - tube | 1 | |
| 52 | 55-6436 | ELBOW (1/4) | 1 | |
| 53 | 55-6437 | ELBOW (1-3/8) | 1 | |
| 54 | 66-5321 | TUBE - exchanger to accumulator | 1 | |
| 55 | 67-2276 | TUBE - defrost | 1 | |
| 56 | 99-8091 | BRACKET - defrost tube | 1 | |
| 55-4954 | NUT | 1 | ||
| 55-2958 | FLATWASHER | 1 | ||
| 58 | 55-2240 | CLAMP - tube | 1 | |
| 59 | 66-5313 | TUBE - defrost to distributor | 1 | |
| 60 | 66-5311 | TUBE - coil to exchanger | 1 | |
| 61 | 55-6020 | CLAMP - tube | 1 | |
| 55-3462 | SCREW - clamp | 2 | ||
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-1800 | LOCKWASHER | 2 | ||
| 62 | 67-991 | HEAT EXCHANGER | 1 | |
| 91-1412 | NAMEPLATE - Pressure Vessel | 1 | ||
| 91-2689 | BRACKET - heat exchanger | 2 | ||
| 63 | 66-5856 | TUBE - equalizer | 1 | |
| 64 | 55-2536 | CLAMP | 1 | |
| 65 | 66-6764 | VALVE - expansion (R12) | 1 | |
| 66-9378 | SCREEN - inlet | 1 | ||
| 66-633 | ELEMENT - power | 1 | ||
| 99-8090 | CLAMP - valve | 2 | ||
| 55-3462 | SCREW - clamp | 4 | ||
|
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 99-8209 | NUTSTRIP | 2 | ||
| 66 | 67-1198 | COIL - evaporator | 1 | |
| 91-2687 | NAMEPLATE - pressure vessel | 1 | ||
| 66-4453 | SCREEN - filter | 1 |
