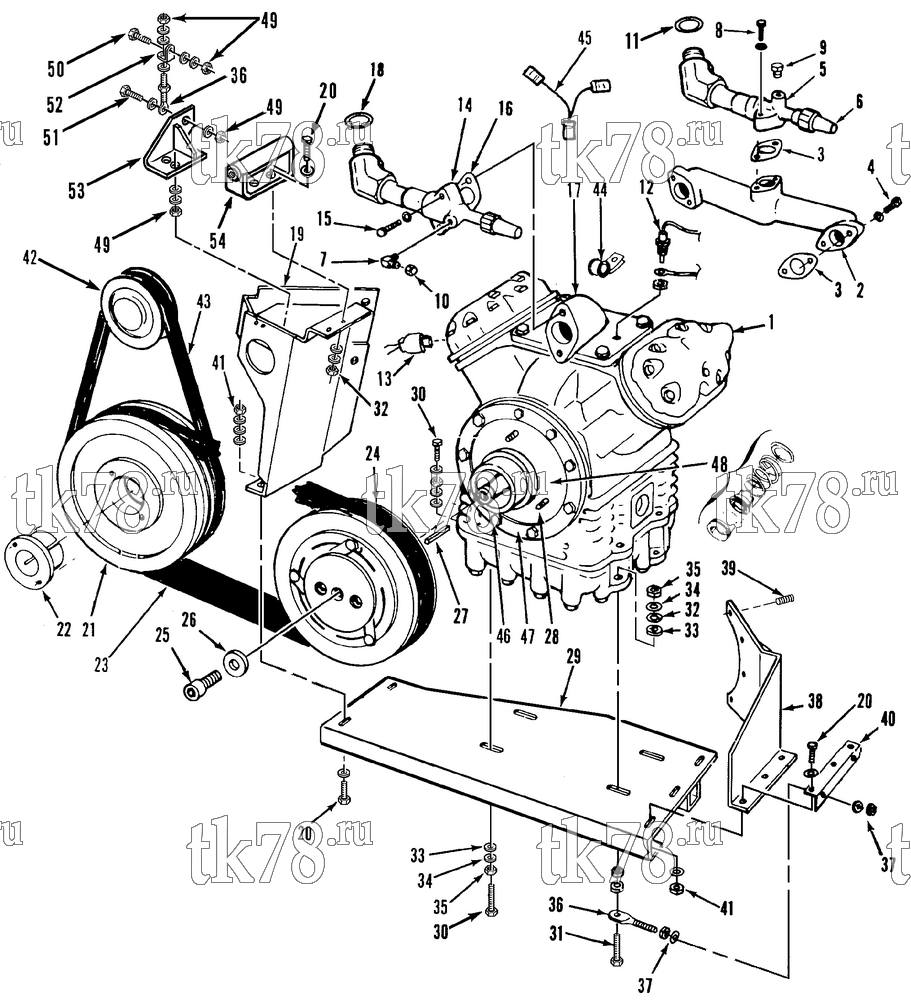

Установкa Thermo King схема COMPRESSOR GROUP - X430 (KIT 712760) – 87G11
Обновление от: 8/19/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 8102-914 | COMPRESSOR - X430 SS C5 (dry new exchange, see 231C2) | 1 | |
| 2 | 22-660 | MANIFOLD - discharge | 1 | |
|
10-22-660 | Коллектор компрессора X430 | 29 550 ₽ |
|
| 3 | 33-2805 | GASKET - manifold | 3 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 4 | 55-6822 | SCREW - manifold | 4 | |
| 55-6804 | WASHER - sealing | 2 | ||
| 5 | 66-4655 | VALVE - discharge | 1 | |
| 55-5886 | ADAPTER (#16) | 1 | ||
| 66-2140 | VALVE - discharge | 1 | ||
| 6 | 66-2296 | CAP - service valve (plastic, incl gasket) | 2 | |
| P-17-10812-01 | Крышка сервисного клапана, пластик, 05K/05G/06D | 1 800 ₽ |
|
|
|
10-66-2296 | Крышка сервисного клапана, пластик, X426/430/640 | 1 800 ₽ |
|
| 33-3007 | GASKET - cap | 2 | ||
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 7 | 55-466 | ELBOW | 1 | |
| 8 | 55-201 | SCREW - valve | 2 | |
| 55-896 | FLATWASHER | 2 | ||
| 9 | 55-433 | PLUG - pipe | 1 | |
| 10 | 55-1983 | CAP - elbow | 2 | |
| 33-768 | GASKET - flare | 2 | ||
| 11 | 33-1785 | O-RING | 1 | |
| 12 | 44-3842 | DIODE - assembly | 1 | |
| 44-3940 | DIODE - only | 1 | ||
| 13 | 44-6373 | SWITCH - hpco | 1 | |
| 44-6265 | SWITCH - only (450 psi) | 2 | ||
| 14 | 66-4701 | VALVE - suction | 1 | |
| 66-3576 | VALVE - suction | 1 | ||
| 55-5887 | ADAPTER (#20) | 1 | ||
| 15 | 55-3674 | SCREW - valve | 2 | |
| 55-895 | FLATWASHER | 2 | ||
| 16 | 33-2541 | GASKET - suction valve | 1 | |
| 17 | 66-1896 | ADAPTER - suction valve | 1 | |
| 18 | 33-1777 | O-RING | 1 | |
| 19 | 99-9095 | BRACKET - compressor support | 1 | |
| 20 | 55-2063 | SCREW - bracket | 6 | |
| 55-399 | WASHER - special | 9 | ||
| 21 | 77-1863 | PULLEY - pto | 1 | |
| 22 | 77-1629 | BUSHING - pulley | 1 | |
| 55-5188 | SCREW - bushing | 2 | ||
| 23 | 78-744 | BELT - compressor (2-5V) | 1 | |
| 24 | 107-192 | KIT - clutch drive repair (see 116B7) | 1 | |
| 77-1672 | PULLEY (2-5V grooves, 7.75 in od) | 1 | ||
| 45-1225 | FIELD (24VDC) | 1 | ||
| 25 | 55-5283 | SCREW - clutch | 1 | |
| 26 | 77-2498 | SPACER | 1 | |
|
10-77-2498 | Шайба муфты сцепления | 990 ₽ |
|
| 27 | 55-9088 | KEY - clutch (1-1/2 lg) | 1 | |
| 28 | 55-3451 | STUD - clutch | 3 | |
| 55-789 | NUT - clutch | 3 | ||
| 55-790 | LOCKWASHER | 3 | ||
| 29 | 98-2452 | PLATE - compressor base | 1 | |
| 30 | 55-5278 | SCREW - compressor (2-1/4 lg) | 2 | |
| 31 | 55-5208 | SCREW - compressor (2-1/2 lg) | 2 | |
| 32 | 55-5186 | WASHER - special | 10 | |
| 33 | 55-399 | WASHER - special | 4 | |
| 34 | 55-2200 | LOCKWASHER | 4 | |
| 35 | 55-3122 | NUT | 4 | |
| 36 | 92-6932 | BOLT - eye (adjustment) | 2 | |
| 37 | 55-2173 | FLATWASHER | 4 | |
| 55-4952 | NUT | 4 | ||
| 38 | 99-7149 | BRACKET - compressor support | 1 | |
| 39 | 55-5937 | STUD - bracket | 4 | |
| 40 | 99-7147 | BRACKET - adjustment | 1 | |
| 41 | 55-3122 | NUT | 6 | |
| 55-2200 | LOCKWASHER | 6 | ||
| 42 | 77-1654 | PULLEY - alternator | 1 | |
| 43 | 78-756 | BELT - alternator (2-3V) | 1 | |
| 44 | 55-5261 | CLAMP | 3 | |
| 45 | 44-7056 | HARNESS | 1 | |
| 46 | 55-2381 | SCREW - plate | 9 | |
| 55-896 | FLATWASHER | 9 | ||
| 47 | 22-754 | PLATE - drive bearing | 1 | |
| 33-2513 | GASKET - plate | 1 | ||
|
10-33-2513 | Прокладка передней крышки, X418/426/430/640 | 1 450 ₽ |
|
| PP-33-2513 | Прокладка передней крышки, X418/426/430/640 | 500 ₽ |
|
|
| 48 | 22-778 | SEAL - crankshaft | 1 | |
|
22-778 OEM | Сальник коленвала, X418/X426/X430 | 14 860 ₽ |
|
|
US-22-778 | Сальник коленвала, X418/X426/X430 | 11 920 ₽ |
|
|
PP-22-778 | Сальник коленвала, X418/X426/X430 | 2 950 ₽ |
|
| 49 | 55-2166 | NUT | 7 | |
| 55-2159 | LOCKWASHER | 4 | ||
| 50 | 55-3486 | SCREW - alternator | 1 | |
| 51 | 55-2976 | SCREW - bracket/alternator | 1 | |
| 55-2173 | FLATWASHER | 4 | ||
| 52 | 91-1032 | BRACKET - alternator adjusting | 1 | |
| 53 | 91-1250 | BRACKET - alternator | 1 | |
| 54 | 91-1254 | BRACKET - alternator | 1 |
