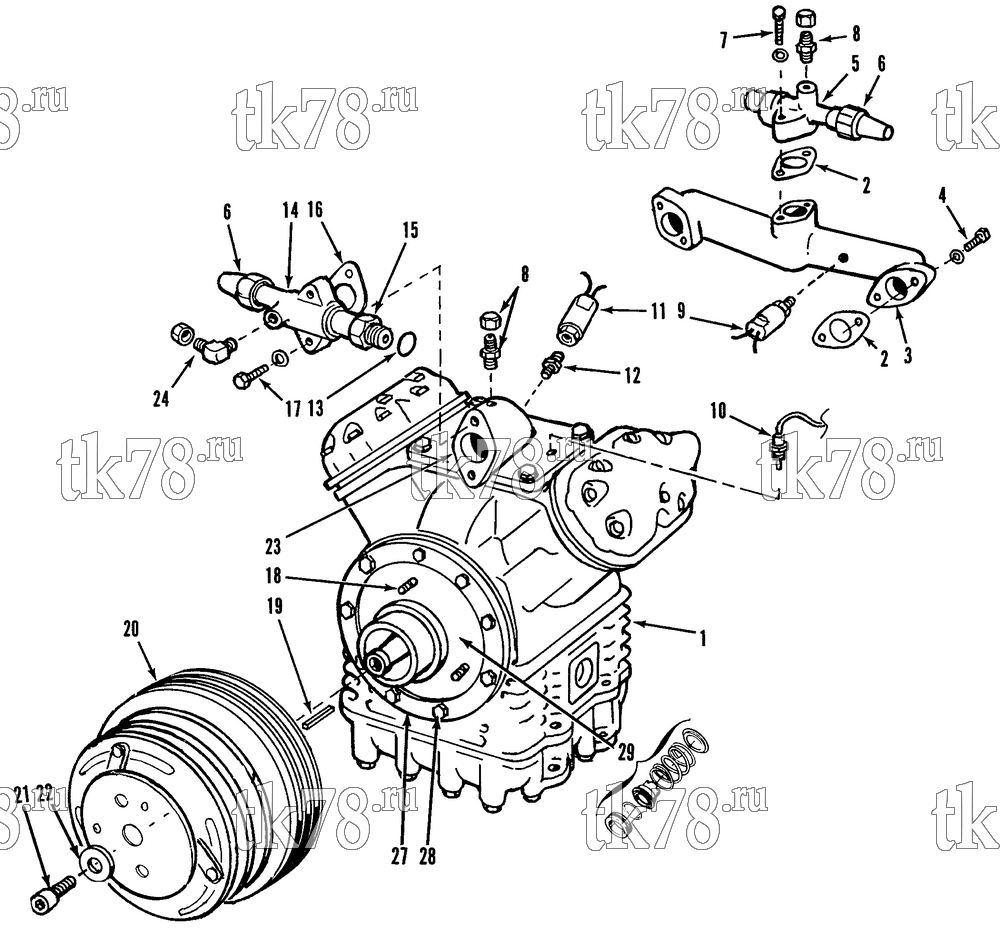

Установкa Thermo King схема X426 COMPRESSOR & CLUTCH ASSEMBLY – 82A13
Обновление от: 11/16/00
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-666 | COMPRESSOR - X426 (see 77E1) | 1 | |
| 2 | 33-2805 | GASKET - manifold | 3 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 3 | 22-749 | MANIFOLD - discharge | 1 | |
| 4 | 55-2306 | SCREW - manifold | 4 | |
| 30-55-2306 | Болт 3/8x1 5/8 | 680 ₽ |
|
|
| 55-896 | FLATWASHER | 4 | ||
| 5 | 66-1423 | VALVE - discharge | 1 | |
| 6 | 66-2296 | CAP - service valve (plastic, incl gasket) | 1 | |
| P-17-10812-01 | Крышка сервисного клапана, пластик, 05K/05G/06D | 1 800 ₽ |
|
|
|
10-66-2296 | Крышка сервисного клапана, пластик, X426/430/640 | 1 800 ₽ |
|
| 33-3007 | GASKET - cap | 1 | ||
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 7 | 55-3674 | SCREW - discharge valve | 2 | |
| 55-896 | FLATWASHER | 2 | ||
| 8 | 11-2886 | VALVE - service port (Schrader) | 2 | |
| 55-1983 | CAP - valve | 2 | ||
| 9 | 44-6357 | SWITCH - hpco (300 psi) | 1 | |
| 44-5834 | SWITCH - only (hpco) | 1 | ||
| 10 | 44-3842 | DIODE - assembly | 1 | |
| 44-3940 | DIODE - only | 1 | ||
| 55-2996 | LOCKWASHER | 1 | ||
| 11 | 44-6356 | SWITCH - lpco (5 psi) | 1 | |
| 44-6263 | SWITCH - only (lpco) | 1 | ||
| 12 | 55-459 | COUPLING | 1 | |
| 33-768 | GASKET | 1 | ||
| 13 | 33-544 | O-RING - suction valve | 1 | |
| 14 | 66-3986 | VALVE - suction | 1 | |
| 66-3576 | VALVE - suction | 1 | ||
| 15 | 55-4185 | ADAPTER - tube | 1 | |
| 66-2837 | TUBE - adapter | 1 | ||
| 16 | 33-2541 | GASKET - suction valve | 1 | |
| 17 | 55-201 | SCREW - suction valve | 2 | |
| 55-895 | FLATWASHER | 2 | ||
| 18 | 55-3451 | STUD - clutch | 2 | |
| 55-790 | LOCKWASHER | 3 | ||
| 55-789 | NUT - clutch | 3 | ||
| 19 | 55-9024 | KEY - clutch (1-1/2 lg) | 1 | |
|
10-55-9024 | Шпонка коленвала, X418/426/430 | 590 ₽ |
|
| 20 | See Below | CLUTCH (24VDC) | 1 | |
| 107-150 | KIT - clutch drive repair | 1 | ||
| 77-1229 | PULLEY (2-B/2-A grooves, 9.0/10.0 in od) | 1 | ||
| 45-271 | FIELD - coil (24VDC) | 1 | ||
| 21 | 55-3631 | SCREW - clutch | 1 | |
| 22 | 77-2498 | SPACER - clutch | 1 | |
|
10-77-2498 | Шайба муфты сцепления | 990 ₽ |
|
| 23 | 66-1896 | ADAPTER - suction valve | 1 | |
| 24 | 55-466 | ELBOW - test port | 1 | |
| 55-1983 | CAP - test port | 1 | ||
| 33-768 | GASKET - flare | 1 | ||
| 25 | 44-6942 | HARNESS - compressor | 1 | |
| 26 | 55-5129 | CLAMP - harness | 2 | |
| 27 | 22-754 | PLATE - drive bearing | 1 | |
| 33-2513 | GASKET - drive plate | 1 | ||
|
10-33-2513 | Прокладка передней крышки, X418/426/430/640 | 1 450 ₽ |
|
| PP-33-2513 | Прокладка передней крышки, X418/426/430/640 | 500 ₽ |
|
|
| 28 | 55-2381 | SCREW - plate | 9 | |
| 55-896 | FLATWASHER | 9 | ||
| 29 | 22-778 | SEAL - crankshaft | 1 | |
|
22-778 OEM | Сальник коленвала, X418/X426/X430 | 14 860 ₽ |
|
|
US-22-778 | Сальник коленвала, X418/X426/X430 | 11 920 ₽ |
|
|
PP-22-778 | Сальник коленвала, X418/X426/X430 | 2 950 ₽ |
|
