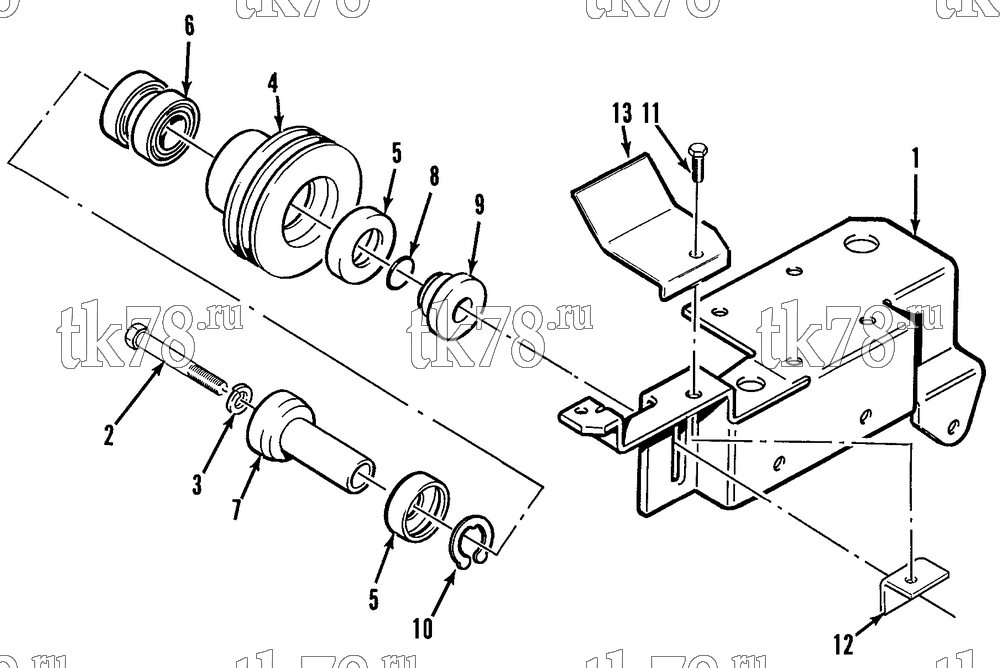

Установкa Thermo King схема IDLER PULLEY GROUP – 81G4
Обновление от: 3/9/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-3112 | BRACKET (see 81G7, before 2/92) | 1 | |
| 91-3820 | BRACKET (see 81G7, after 1/92) | 1 | ||
| 2 | 55-5888 | SCREW - idler pulley | 1 | |
| 3 | 55-2159 | LOCKWASHER | 1 | |
| 77-2431 | PULLEY - idler (incl pulley) | 1 | ||
| 4 | NSS | PULLEY - idler | 1 | |
| 70-173 | KIT - idler pulley repair (does not incl pulley) | 1 | ||
| 70-173 OEM | Р/к ролика натяжителя | 46 230 ₽ |
|
|
| 5 | 33-1924 | SEAL - oil | 2 | |
|
10-33-1924 | Сальник ролика натяжителя | 1 550 ₽ |
|
| 6 | 77-2389 | BEARING - roller | 1 | |
| 77-2389 OEM | Подшипник | 4 430 ₽ |
|
|
| 10-77-2389 | Подшипник промежуточного вала SMX / SL | 2 140 ₽ |
|
|
| 7 | 77-1762 | SPINDLE - idler | 1 | |
| 8 | 33-1162 | O-RING | 1 | |
|
10-33-1162 | Уплотнитель, Sentry, SB-I, SUPER-II | 140 ₽ |
|
| 9 | 33-1163 | RING - seal | 1 | |
| 10 | 55-7437 | RING - retaining | 1 | |
| 11 | 55-2961 | SCREW - idler pulley adjusting | 1 | |
| 55-2363 | LOCKWASHER | 1 | ||
| 55-2641 | FLATWASHER | 1 | ||
| 12 | 91-5566 | BRACKET - idler | 1 | |
| 13 | 91-211 | SHIELD - safety | 1 |
