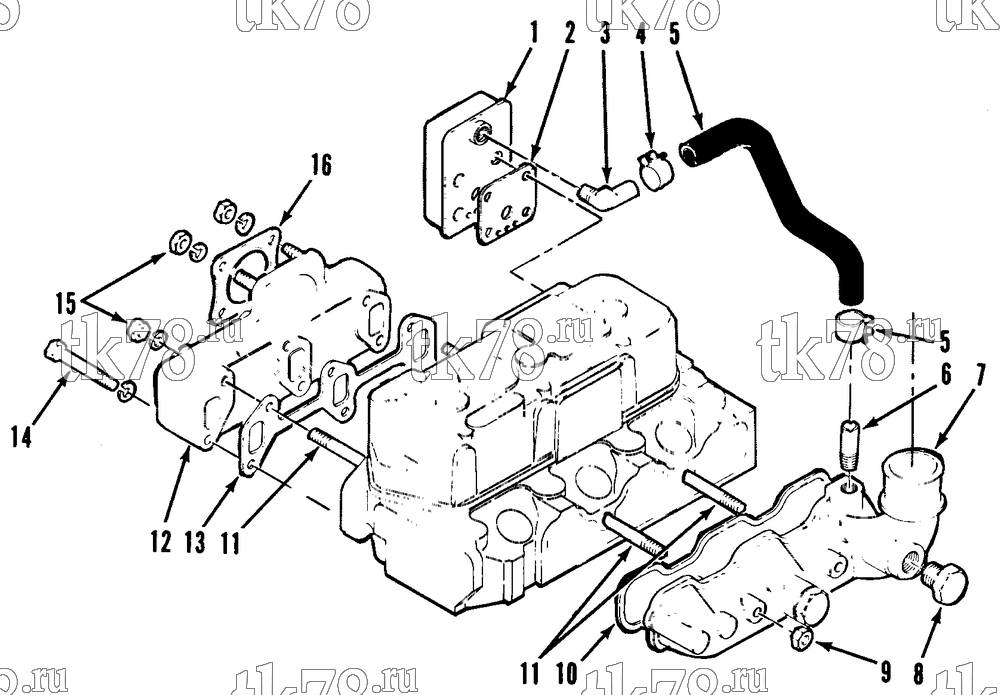

Установкa Thermo King схема INTAKE & EXHAUST GROUP – 60F5
Обновление от: 10/31/97
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-5020 | BREATHER - air | 1 | |
| 55-4612 | SCREW - breather | 2 | ||
| 55-4613 | FLATWASHER | 2 | ||
| 2 | 33-4194 | GASKET - breather | 1 | |
| 3 | 55-4653 | ELBOW | 1 | |
| 4 | 55-1521 | CLAMP | 2 | |
| 5 | 11-5121 | HOSE (400 mm) | 1 | |
| 11-5483 | HOSE - breather (260mm) | 1 | ||
| 6 | 11-5074 | ADAPTER | 1 | |
| 7 | 11-5188 | MANIFOLD - intake | 1 | |
| 8 | 44-5810 | GLOW PLUG | 2 | |
|
10-44-5810 | Свеча накаливания, Yanmar 235, 353 | 7 700 ₽ |
|
| 9 | 55-4621 | NUT | 2 | |
| 10 | 33-1539 | GASKET - manifold | 1 | |
| 11 | 55-4755 | STUD - manifold | 4 | |
| 12 | 11-5189 | MANIFOLD - exhaust | 1 | |
| 55-4620 | STUD | 4 | ||
| 13 | 33-1540 | GASKET - manifold | 1 | |
| 14 | 55-4756 | SCREW - manifold | 4 | |
| 55-790 | LOCKWASHER | 4 | ||
| 15 | 55-6529 | NUT | 6 | |
| 55-790 | LOCKWASHER | 6 | ||
| 16 | 33-1518 | GASKET - exhaust | 1 | |
| 30-276 | GASKET SET - overhaul | 1 | ||
| 10-30-276 | Набор прокладок, Yanmar 353 | 20 420 ₽ |
|
