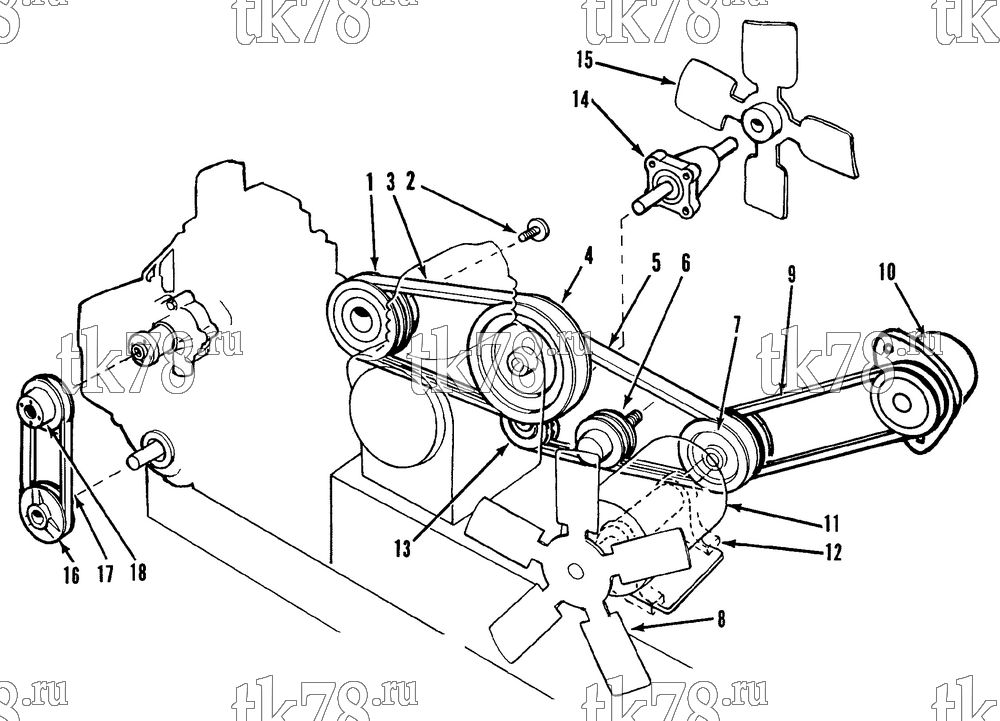

Установкa Thermo King схема BELTS, PULLEYS & FAN – 59G6
Обновление от: 2/12/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 107-349 | CLUTCH (see 145F4) | 1 | |
|
10-107-349 | Сцепление, MD/RD/KD/T-Series | 98 400 ₽ |
|
|
PP-107-349 | Сцепление, MD/RD/KD/T-Series | 46 200 ₽ |
|
| 55-5022 | SCREW - clutch | 1 | ||
| 2 | 55-1140 | SCREW - clutch | 1 | |
| 3 | 78-591 | BELT - engine to compressor | 1 | |
| 4 | 77-1659 | PULLEY - compressor | 1 | |
| 55-139 | SCREW - pulley | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-455 | KEY - woodruff | 1 | ||
|
10-55-455 | Шпонка коленвала, D214/X214 | 290 ₽ |
|
| 5 | 78-592 | BELT - compressor | 1 | |
| 10-78-592 | Ремень, MD-I, MD-I SSVI | 8 190 ₽ |
|
|
| 6 | 77-1446 | PULLEY - idler (see 59G7) | 1 | |
| 7 | 77-1470 | PULLEY - motor/jackshaft | 1 | |
| 55-139 | SCREW - pulley | 2 | ||
| 55-421 | LOCKWASHER | 2 | ||
| 8 | 78-445 | FAN - condenser | 1 | |
| 55-139 | SCREW - fan | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 9 | 78-561 | BELT - alternator | 1 | |
| 10 | 44-6126 | ALTERNATOR | 1 | |
| 99-7306 | PLATE - alternator | 1 | ||
| 55-5230 | WASHER - spacer | 1 | ||
| 55-365 | LOCKWASHER | 1 | ||
| 55-2252 | SCREW - alternator | 1 | ||
| 55-395 | LOCKWASHER | 1 | ||
| 55-2038 | FLATWASHER | 1 | ||
| 55-153 | SCREW | 1 | ||
| 55-790 | LOCKWASHER | 1 | ||
| 55-371 | FLATWASHER | 1 | ||
| 11 | 104-465 | MOTOR (220-460/3/60) | 1 | |
| 77-1052 | BEARING | 2 | ||
| 104-470 | MOTOR (220-380/3/50) | 1 | ||
| 104-528 | MOTOR (230/1/60, Leroy Somer) | 1 | ||
| N/A | MOTOR (230/1/60, Westinghouse, see 53B5) | 1 | ||
| N/A | MOTOR (230/1/60, G.E., see 131F10) | 1 | ||
| 55-4164 | KEY | 2 | ||
| 12 | 77-1011 | JACKSHAFT (see 7B12) | 1 | |
| 13 | 77-1471 | PULLEY - fan | 1 | |
| 55-513 | KEY - pulley | 1 | ||
| 55-5561 | SCREW | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 14 | 78-443 | FANSHAFT - assembly (see 36D1) | 1 | |
| 15 | 78-450 | FAN - evaporator | 1 | |
| 16 | 77-1435 | PULLEY - crankshaft | 1 | |
| 17 | 78-513 | BELT - water pump | 1 | |
| 18 | 77-1426 | PULLEY - split sheave | 1 | |
|
10-77-1426 | Шкив водяной помпы, Yanmar 374 / 388 / 395 / 482 / 486, SL/SLe | 6 670 ₽ |
|
| 77-1427 | SHIM (1 mm) | A/R | ||
| 77-2752 | SHIM (0.5 mm) | A/R | ||
| 77-1428 | SPACER - split pulley | 1 | ||
| 55-5138 | STUD - pulley | 4 | ||
| 55-4607 | FLATWASHER | 4 | ||
| 55-4608 | LOCKWASHER | 4 | ||
| 55-4750 | NUT | 4 |
