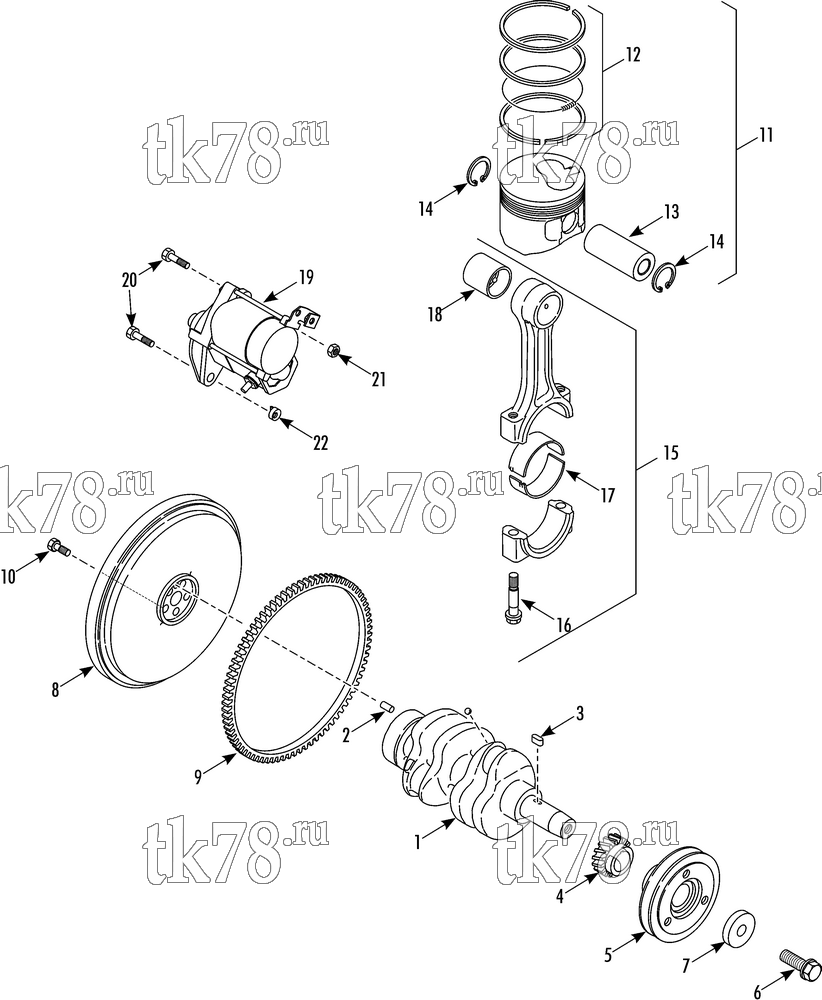

Установкa Thermo King схема CRANKSHAFT & PISTON & STARTER – 268H6
Обновление от: 6/24/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 12-879 | CRANKSHAFT - assembly | 1 | |
| 2 | 55-5816 | PIN - dowel (flywheel) | 1 | |
| 3 | 55-5813 | KEY - gear | 1 | |
| 4 | NSS | GEAR - crankshaft | 1 | |
| 5 | 77-2756 | PULLEY - crankshaft | 1 | |
| 6 | 51-2363 | SCREW - pulley | 1 | |
| 7 | 55-5819 | WASHER | 1 | |
| 8 | 13-468 | FLYWHEEL - assembly | 1 | |
| 9 | 11-7031 | GEAR - ring | 1 | |
|
10-11-7031 | Зубья маховика, Yanmar 235, 249, 353, 366, 374, 388, 395 | 28 550 ₽ |
|
| 10 | 55-6382 | SCREW - flywheel | 5 | |
| 11 | 13-566 | PISTON (std, kit incl rings, pin & circlip) | 2 | |
|
10-13-566 | Поршень к-т (+кольца, палец, стопора), Std.,Yanmar 370 | 34 370 ₽ |
|
| 12 | 13-567 | RING SET (std) | 2 | |
|
10-13-567 | Кольца поршневые к-т (на 1 поршень), Std., Yanmar 370 | 8 040 ₽ |
|
| 13-628 | PISTON (0.25 os, kit incl rings, pin & circlip) | 2 | ||
| 13-572 | RING SET (0.25 os) | 2 | ||
|
10-13-572 | Кольца поршневые к-т (на 1 поршень), 0.25 mm, Yanmar 370 | 8 020 ₽ |
|
| 13 | 13-568 | PIN - piston | 2 | |
| 14 | 11-9674 | CIRCLIP | 2 | |
| 15 | 13-569 | ROD - connecting | 2 | |
|
13-569 OEM | Шатун двигателя Yanmar 370, T-Series | 41 590 ₽ |
|
| 16 | 51-604 | BOLT - connecting rod | 4 | |
| 17 | 13-851 | BEARING - connecting rod (std) | 2 | |
| 13-851 OEM | Вкладыш шатунный STD, Yanmar 370 | 7 430 ₽ |
|
|
| 13-852 | BEARING - connecting rod (0.25 us) | 2 | ||
| 18 | 13-413 | BUSHING - piston pin | 2 | |
| 13-413 OEM | Втулка шатуна, Yanmar 370 | 3 620 ₽ |
|
|
| 19 | 45-1718 | STARTER 1.4 kW | 1 | |
|
10-45-1718 | Стартер, Yanmar 366 / 374 / 388 / 395 | 12 860 ₽ |
|
| PP-45-1718 | Стартер, Yanmar 366 / 374 / 388 / 395 | 9 310 ₽ |
|
|
| 45-2326 | STARTER (standard life plus) | 1 | ||
| 845-2326 | STARTER (remanufactured) | 1 | ||
| 20 | 55-5852 | SCREW - starter | 2 | |
| 21 | 55-4672 | NUT | 1 | |
| 22 | 55-6203 | NUT | 1 |
