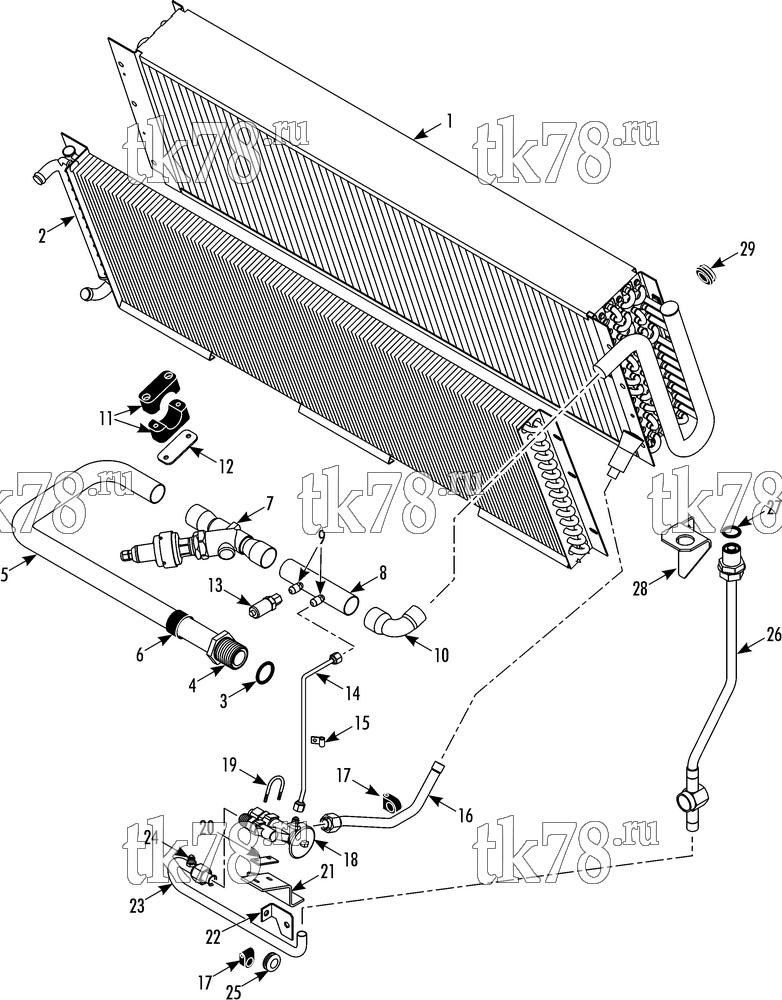

Установкa Thermo King схема REFRIGERATION - EVAPORATOR (T11E) – 255A0
Обновление от: 8/8/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1495 | COIL - evaporator (see 235E2) | 1 | |
| 67-1496 | COIL - evaporator (lacquer coating, see 235E2) | 1 | ||
| 2 | 67-1194 | COIL - heater (see 235E2) | 1 | |
| 67-1312 | COIL - heater (lacquer coating, see 235E2) | 1 | ||
| 55-1587 | SCREW - coil | 16 | ||
| 55-1800 | LOCKWASHER | 16 | ||
| 55-2086 | FLATWASHER | 16 | ||
| 3 | 33-1777 | O-RING (1-3/16 id) | 1 | |
| 4 | 55-9175 | ADAPTER - bulkhead (#20) | 1 | |
| 55-5739 | NUT - bulkhead (#20) | 1 | ||
| 55-5742 | LOCKWASHER (1.77 id) | 1 | ||
| 5 | 61-5694 | TUBE - suction, adapter to valve | 1 | |
| 6 | 92-2016 | TUBE - sponge rubber | 1 | |
| 7 | 40-1181 | KIT - epr valve (complete w/ cable) | 1 | |
| 40-1072 | KIT - repair, epr valve | |||
| 8 | 61-5695 | TUBE - suction, valve to elbow | 1 | |
| 9 | 66-9842 | VALVE (Schrader) | 2 | |
| 10 | 55-8988 | ELBOW | 1 | |
| 11 | 55-6020 | CLAMP - suction tube | 2 | |
| 12 | 92-2707 | PLATE - clamp | 1 | |
| 55-6851 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 13 | 41-9044 | TRANSDUCER - suction | 1 | |
| 14 | 61-5697 | TUBE - equalizer | 1 | |
| 55-303 | NUT | 2 | ||
| 15 | 55-9811 | CLAMP - tube (.25 id) | 1 | |
| 55-2991 | SCREW - clamp | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-2001 | LOCKWASHER | 1 | ||
| 16 | 66-7321 | TUBE - valve to distributor | 1 | |
| 17 | 91-758 | CLAMP - tube (.625 id) | 2 | |
| 55-2957 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 18 | 66-6847 | VALVE - expansion | 1 | |
| 19 | 55-5211 | U-BOLT | 1 | |
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 20 | 91-3084 | SPACER - valve | 1 | |
| 21 | 92-1771 | BRACKET - liquid line | 1 | |
| 22 | 91-5560 | BRACKET - valve | 1 | |
| 55-2957 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 23 | 61-2003 | TUBE - expansion valve inlet | 2 | |
| 55-4737 | NUT | 1 | ||
| 66-4139 | FITTING - saddle | 1 | ||
| 24 | 55-6790 | PLUG - pipe | 1 | |
| 25 | 33-287 | GROMMET (5/8 id) | 1 | |
| 26 | 61-5696 | TUBE - liquid line w/sightglass | 1 | |
| 66-2648 | INDICATOR - liquid | 1 | ||
| 55-9699 | ADAPTER - bulkhead (#12) | 1 | ||
| 55-7199 | LOCKWASHER | 1 | ||
| 55-6812 | NUT | 1 | ||
| 27 | 33-1162 | O-RING (3/4 id) | 1 | |
|
10-33-1162 | Уплотнитель, Sentry, SB-I, SUPER-II | 140 ₽ |
|
| 28 | 92-9210 | BRACKET - liquid line | 1 | |
| 55-2957 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-8979 | INSERT | 2 | ||
| 29 | 33-287 | GROMMET (5/8 id) | 1 |
