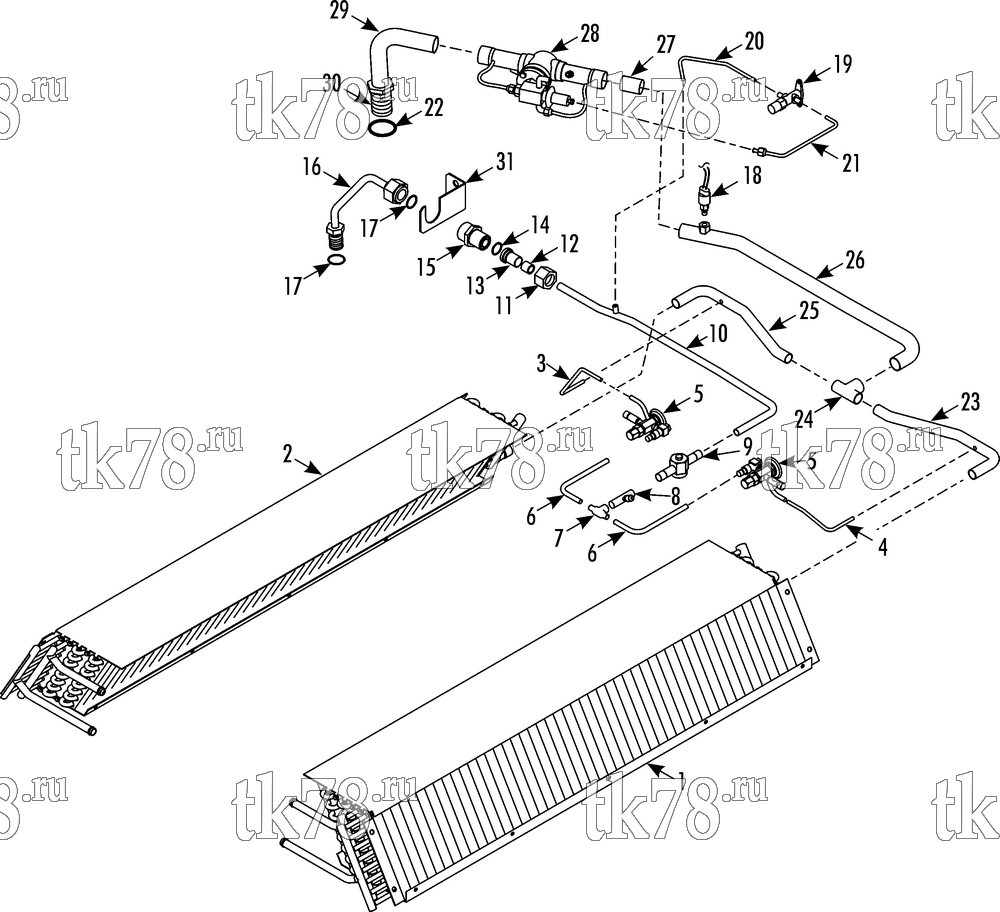

Установкa Thermo King схема REFRIGERATION - EVAPORATOR (PRIMARY) – 246E6
Обновление от: 2/9/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1897 | COIL - evaporator/heater (roadside) | 1 | |
| 2 | 67-1898 | COIL - evaporator/heater (curbside) | 1 | |
| 3 | 61-1310 | TUBE - equalizer (curbside) | 1 | |
| 4 | 61-1311 | TUBE - equalizer (roadside) | 1 | |
| 5 | 61-1819 | VALVE - expansion | 2 | |
| 61-811 | SCREEN - inlet | 1 | ||
| 66-4213 | ELEMENT - power | 1 | ||
| 61-4574 | TUBE - assembly liquid line (complete) | 1 | ||
| 6 | 61-1308 | TUBE - tee to valve | 2 | |
| 7 | 55-7142 | TEE | 1 | |
| 8 | 61-3958 | TUBE - indicator to tee | 1 | |
| 66-9842 | VALVE (Schrader) | 1 | ||
| 55-1983 | CAP - valve | 1 | ||
| 9 | 66-2648 | INDICATOR - liquid | 1 | |
| 66-9273 | INDICATOR - dry eye | 1 | ||
| 10 | 61-4817 | TUBE - adapter to indicator | 1 | |
| 66-5752 | FITTING - header | 1 | ||
| 11 | 55-5293 | BUSHING (7/8 x 5/8) | 1 | |
| 12 | 55-5938 | SLEEVE | 1 | |
| 13 | 55-5936 | NUT | 1 | |
| 14 | 33-1785 | O-RING (15/16 id) | 1 | |
| 15 | 61-4375 | STRAINER - assembly | 1 | |
| 16 | 61-4818 | TUBE - liquid to strainer assembly | 1 | |
| 17 | 33-1162 | O-RING (3/4 id) | 2 | |
|
10-33-1162 | Уплотнитель, Sentry, SB-I, SUPER-II | 140 ₽ |
|
| 18 | 41-4209 | SWITCH - lpco (complete) | 1 | |
| 41-5183 | SWITCH - only (see 115D14 for connectors) | 1 | ||
| 41-8962 | HARNESS - lpco (extension) | 1 | ||
| 19 | 61-4576 | TUBE - assembly bypass valve | 1 | |
| 66-4102 | VALVE - shutoff | 1 | ||
| 20 | 61-4819 | TUBE - liquid to bypass valve | 1 | |
| 21 | 66-7903 | TUBE - regulator to pressure | 1 | |
| 22 | 33-1777 | O-RING (1-3/16 id) | 1 | |
| 61-4571 | TUBE - coil to EPR valve | 1 | ||
| 23 | 61-1314 | TUBE - coil to tee | 1 | |
| 24 | 55-6508 | TEE | 1 | |
| 25 | 61-1314 | TUBE - coil to tee | 1 | |
| 26 | 61-4820 | TUBE - tee to epr valve | 1 | |
| 66-3570 | FITTING - saddle | 1 | ||
| 27 | 55-3307 | BUSHING | 1 | |
| 28 | 66-5136 | VALVE - epr (see 129C13) | 1 | |
| 29 | 66-7910 | TUBE - epr to adapter | 1 | |
| 30 | 55-8373 | ADAPTER - bulkhead (#20) | 1 | |
| 31 | 92-7314 | BRACKET - strainer | 1 | |
| 55-2957 | SCREW - bracket | 2 | ||
| 55-5970 | WASHER - sealing | 2 | ||
| 55-4414 | WASHER | 2 | ||
| 55-4953 | NUT | 2 |
