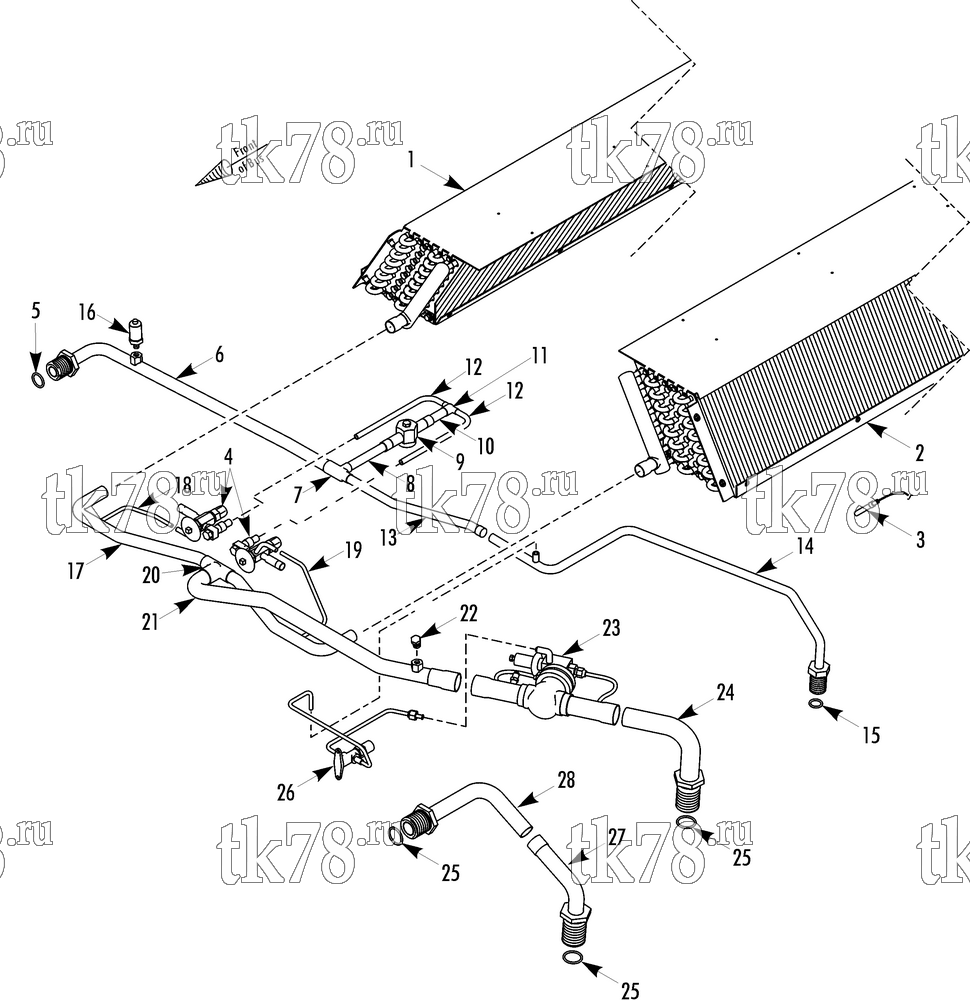

Установкa Thermo King схема REFRIGERATION - EVAPORATOR (SLAVE) – 246D0
Обновление от: 6/26/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1897 | COIL - evaporator (roadside) | 1 | |
| 2 | 67-1898 | COIL - evaporator (curbside) | 1 | |
| 55-3843 | SCREW - coil | 20 | ||
| 55-2001 | FLATWASHER | 20 | ||
| 55-2964 | LOCKWASHER | 20 | ||
| 55-8752 | INSERT - threaded | 20 | ||
| 91-8127 | STRIP - sealing | A/R | ||
| 3 | 41-7706 | SENSOR - freeze protection | 1 | |
| 4 | 61-1819 | VALVE - expansion (R22 & R407c) | 2 | |
| 61-811 | SCREEN - inlet | 1 | ||
| 5 | 33-1785 | O-RING (15/16 id) | 1 | |
| 6 | 61-4370 | TUBE - assembly liquid line | 1 | |
| 61-1912 | TUBE - liquid, bulkhead to tee | 1 | ||
| 66-4553 | FITTING - saddle | 1 | ||
| 66-5247 | ADAPTER - bulkhead (#16) | 1 | ||
| 55-7111 | NUT - bulkhead (#16) | 1 | ||
| 55-5741 | LOCKWASHER | 1 | ||
| 7 | 306-1850 | TEE (7/8 x 5/8 x 5/8) | 1 | |
| 8 | 61-1910 | TUBE - tee to indicator (4.62 in long) | 1 | |
| 9 | 66-2648 | INDICATOR - liquid | 1 | |
| 66-9273 | INDICATOR - dry eye | 1 | ||
| 10 | 61-3907 | TUBE - indicator to tee (2.518 in long) | 1 | |
| 11 | 55-7142 | TEE (3/8 x 3/8 x 5/8) | 1 | |
| 12 | 61-1308 | TUBE - tee to expansion valve | 2 | |
| 13 | 61-1911 | TUBE - liquid, tee to tube | 1 | |
| 14 | 61-4573 | TUBE - assembly bulkhead to swage (liquid) | 1 | |
| 55-9699 | ADAPTER - bulkhead (#12) | 1 | ||
| 55-6812 | NUT - bulkhead (#12) | 1 | ||
| 55-7199 | LOCKWASHER | 1 | ||
| 15 | 33-1162 | O-RING (3/4 id) | 1 | |
|
10-33-1162 | Уплотнитель, Sentry, SB-I, SUPER-II | 140 ₽ |
|
| 16 | 41-9168 | SWITCH - hpco (R407c, only used in 008609) | 1 | |
| 41-2264 | SWITCH - hpco (R407c) | 1 | ||
| 17 | 61-4571 | TUBE - assembly coil to EPR valve | 1 | |
| 61-1314 | TUBE - coil to tee | 2 | ||
| 18 | 61-1311 | TUBE - equalizer (roadside) | 1 | |
| 19 | 61-1310 | TUBE - equalizer (curbside) | 1 | |
| 20 | 55-6508 | TEE (7/8 x 7/8 x 1-1/8) | 1 | |
| 21 | 61-4820 | TUBE - tee to valve | 1 | |
| 66-3570 | FITTING - saddle | 1 | ||
| 22 | 55-6790 | PLUG - pipe | 1 | |
| 23 | 66-5136 | VALVE - epr (R22 & R407c, see 129C13) | 1 | |
| 24 | 66-7910 | TUBE - epr to adapter | 1 | |
| 55-8373 | ADAPTER - bulkhead (#20) | 1 | ||
| 25 | 33-1777 | O-RING (1-3/16 id) | 3 | |
| 26 | 61-4572 | TUBE- assembly bypass valve | 1 | |
| 66-4102 | VALVE - shutoff | 1 | ||
| 66-343 | CAP - valve | 1 | ||
| 55-2991 | SCREW - shutoff valve | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 27 | 61-1915 | TUBE - discharge | 1 | |
| 55-7832 | ADAPTER - bulkhead (#20) | 1 | ||
| 55-9231 | NUT - bulkhead | 2 | ||
| 55-5742 | LOCKWASHER | 2 | ||
| 28 | 61-4086 | TUBE - bulkhead to swage | 1 | |
| 55-7537 | ADAPTER - bulkhead (#20) | 1 |
