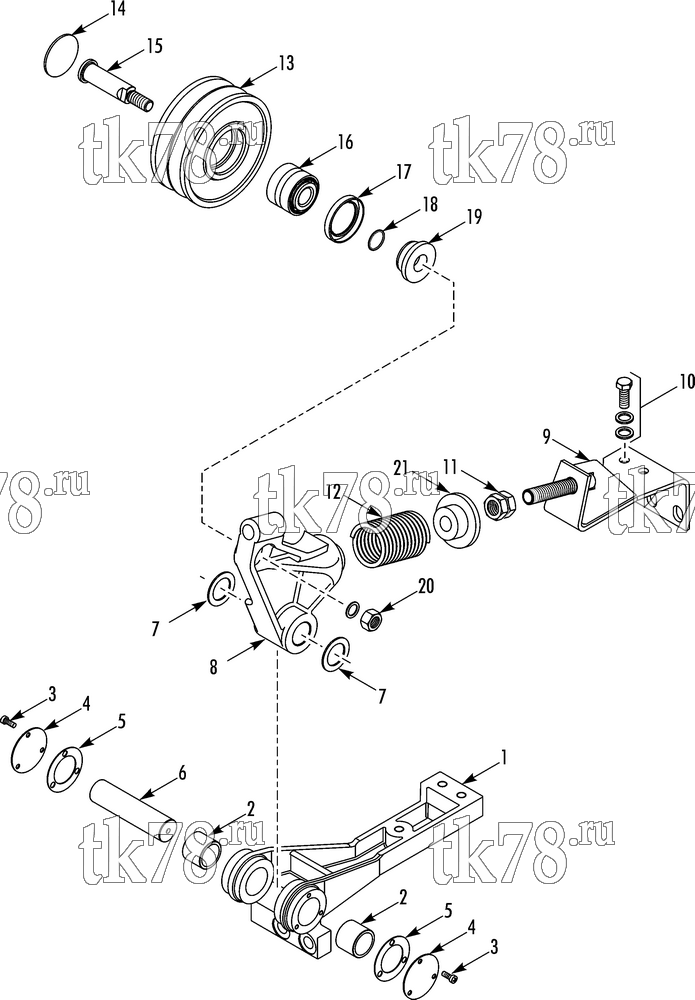

Установкa Thermo King схема BELT TENSIONER (w/o Grease Fittings) – 242E5
Обновление от: 9/28/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-1239 | BASE - belt tensioner | 1 | |
| 2 | 77-1704 | BEARING | 2 | |
| 3 | 55-760 | SCREW - cover | 6 | |
| 55-1511 | LOCKWASHER | 6 | ||
| 4 | 99-8535 | COVER - bearing | 2 | |
| 5 | 33-1663 | GASKET - plate | 2 | |
| 6 | 77-2977 | SHAFT | 1 | |
| 7 | 55-5569 | WASHER - thrust | 2 | |
| 8 | 99-8534 | ARM - belt tensioner | 1 | |
| 9 | 92-245 | BRACKET - tensioner | 1 | |
| 10 | 55-529 | SCREW | 3 | |
| 55-375 | LOCKWASHER | 3 | ||
| 55-402 | FLATWASHER | 3 | ||
| 11 | 55-2483 | NUT | 2 | |
| 12 | 92-8415 | SPRING - compression | 1 | |
| 13 | 77-1953 | PULLEY - idler (complete) | 1 | |
| 77-1954 | PULLEY (only) | 1 | ||
| 14 | 77-1093 | PLUG - expansion | 1 | |
| 15 | 77-1139 | SPINDLE - pulley | 1 | |
| 16 | 77-2389 | BEARING - roller | 1 | |
| 77-2389 OEM | Подшипник | 4 430 ₽ |
|
|
| 10-77-2389 | Подшипник промежуточного вала SMX / SL | 2 140 ₽ |
|
|
| 17 | 33-1924 | SEAL - oil | 1 | |
|
10-33-1924 | Сальник ролика натяжителя | 1 550 ₽ |
|
| 18 | 33-1162 | O-RING | 1 | |
|
10-33-1162 | Уплотнитель, Sentry, SB-I, SUPER-II | 140 ₽ |
|
| 19 | 33-1163 | RING - seal | 1 | |
| 20 | 55-314 | NUT - pulley | 1 | |
| 55-365 | LOCKWASHER | 1 | ||
| 55-2038 | FLATWASHER | 1 | ||
| 21 | 99-8545 | COLLAR | 1 |
