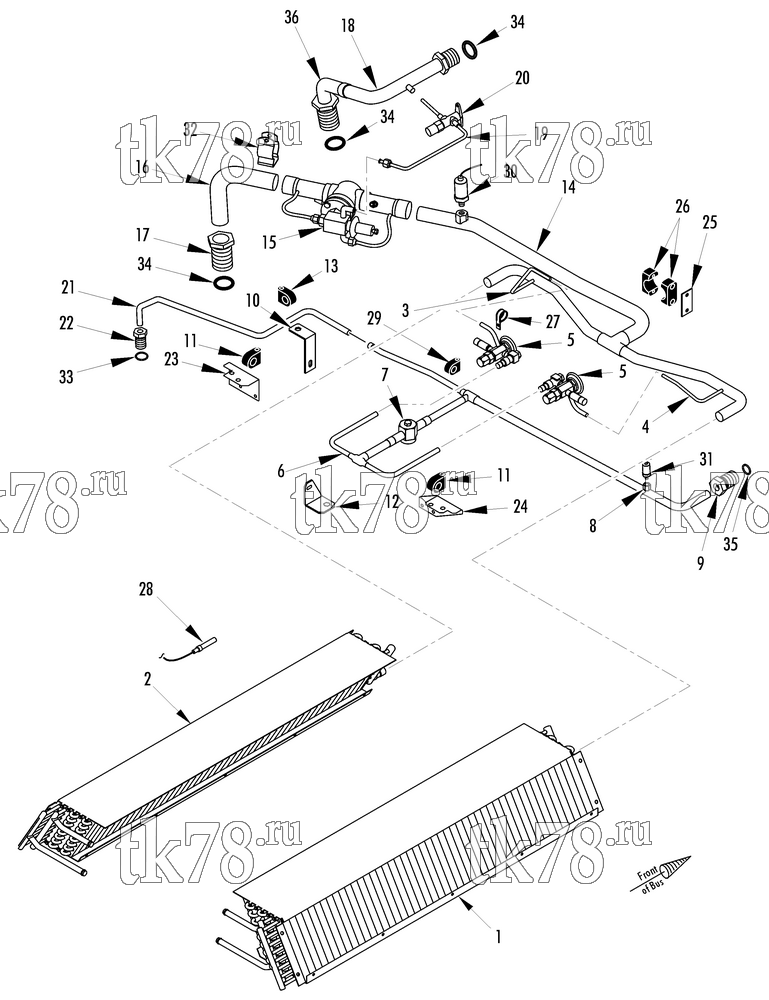

Установкa Thermo King схема REFRIGERATION - EVAPORATOR (R5E) – 235D7
Обновление от: 4/7/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1897 | COIL - evaporator (roadside) | 1 | |
| 2 | 67-1898 | COIL - evaporator (curbside) | 1 | |
| 55-3843 | SCREW - coil | 20 | ||
| 55-2001 | FLATWASHER | 20 | ||
| 55-2964 | LOCKWASHER | 20 | ||
| 55-8752 | INSERT - threaded | 20 | ||
| 33-3706 | STRIP - sealing | A/R | ||
| 91-7754 | EXTRUSION - rubber | A/R | ||
| 3 | 61-1310 | TUBE - equalizer (curbside) | 1 | |
| 4 | 61-1311 | TUBE - equalizer (roadside) | 1 | |
| 5 | 61-1312 | VALVE - expansion (R134a) | 2 | |
| 61-1819 | VALVE - expansion (R22) | 2 | ||
| 61-811 | SCREEN - inlet | 1 | ||
| 6 | 61-4370 | TUBE - liquid | 2 | |
| 7 | 66-2648 | INDICATOR - liquid | 1 | |
| 66-9273 | INDICATOR - dry eye | 1 | ||
| 8 | 66-4553 | FITTING - saddle | 1 | |
| 9 | 66-5247 | ADAPTER - bulkhead (#16) | 1 | |
| 55-7111 | NUT - adapter | 1 | ||
| 55-5741 | LOCKWASHER | 1 | ||
| 10 | 92-2768 | BRACKET - liquid tube | 1 | |
| 11 | 55-7143 | CLAMP - tube (.562 id) | 2 | |
| 55-3462 | SCREW | 2 | ||
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-8711 | INSERT | 2 | ||
| 12 | 92-1345 | BRACKET - sight glass | 1 | |
| 91-372 | CLAMP - sight glass | 1 | ||
| 55-3462 | SCREW | 1 | ||
|
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-2086 | FLATWASHER | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-8711 | INSERT | 1 | ||
| 13 | 91-758 | CLAMP - tube (.625 id) | 1 | |
| 55-3462 | SCREW | 1 | ||
|
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-2086 | FLATWASHER | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-8711 | INSERT | 1 | ||
| 14 | 61-4672 | TUBE - coil to EPR valve | 1 | |
| 66-3570 | FITTING - saddle | 1 | ||
| 15 | 66-8122 | VALVE - epr (R134a, see 129C13) | 1 | |
| 66-5136 | VALVE - epr (R22, see 129C13) | 1 | ||
| 55-4488 | HANGER - valve | 1 | ||
| 16 | 66-7910 | TUBE - epr to adapter | 1 | |
| 17 | 55-8373 | ADAPTER - bulkhead (#20) | 1 | |
| 18 | 61-4372 | TUBE - discharge | 1 | |
| 55-9231 | NUT - bulkhead | 3 | ||
| 55-5742 | LOCKWASHER (2.0 id) | 3 | ||
| 19 | 61-4373 | VALVE - shutoff assembly | 1 | |
| 20 | 66-4102 | VALVE - shutoff | 1 | |
| 66-343 | CAP - valve | 1 | ||
| 55-2991 | SCREW - shutoff valve | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-7062 | INSERT - threaded | 2 | ||
| 21 | 61-1916 | TUBE - bulkhead to swage | 1 | |
| 22 | 55-9699 | ADAPTER - bulkhead (#12) | 1 | |
| 55-9231 | LOCKWASHER (1.75) | 1 | ||
| 55-5742 | NUT - bulkhead | 1 | ||
| 23 | 92-1741 | BRACKET - expansion valve (roadside) | 1 | |
| 24 | 92-1742 | BRACKET - expansion valve (curbside) | 1 | |
| 55-2977 | SCREW - bracket | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-6526 | INSERT - threaded | 4 | ||
| 25 | 92-3265 | SUPPORT - clamp | 1 | |
| 26 | 91-5143 | CLAMP - tube (1-1/8) | 2 | |
| 91-6158 | PLATE - clamp | 1 | ||
| 55-4811 | SCREW - clamp | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-8711 | INSERT | 2 | ||
| 27 | 55-4552 | CLAMP - exp valve | 2 | |
| 55-2977 | SCREW - clamp | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 28 | 41-7706 | SENSOR - freeze protection | 1 | |
| 29 | 55-7013 | CLAMP - tube (.875 id) | 1 | |
| 55-3462 | SCREW | 1 | ||
|
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-2086 | FLATWASHER | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-8711 | INSERT | 1 | ||
| 30 | 41-7958 | TRANSDUCER - suction | 1 | |
| 31 | 41-7956 | TRANSDUCER - discharge | 1 | |
| 32 | 55-4488 | HANGER - valve | 1 | |
| 55-2957 | SCREW - hanger mounting | 1 | ||
| 55-3462 | SCREW - hanger clamp | 1 | ||
|
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-2086 | FLATWASHER | 3 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-4953 | NUT | 1 | ||
| 55-6526 | INSERT | 1 | ||
| 33 | 33-1162 | GASKET - o-ring (3/4 id) | 1 | |
|
10-33-1162 | Уплотнитель, Sentry, SB-I, SUPER-II | 140 ₽ |
|
| 34 | 33-1777 | GASKET- o-ring (1 3/16 id) | 3 | |
| 35 | 33-1785 | GASKET- o-ring (15/16 id) | 1 | |
| 36 | 61-1915 | TUBE - discharge bulkhead to swage | 1 | |
| 55-7832 | ADAPTER - bulkhead (#20) | 1 |
