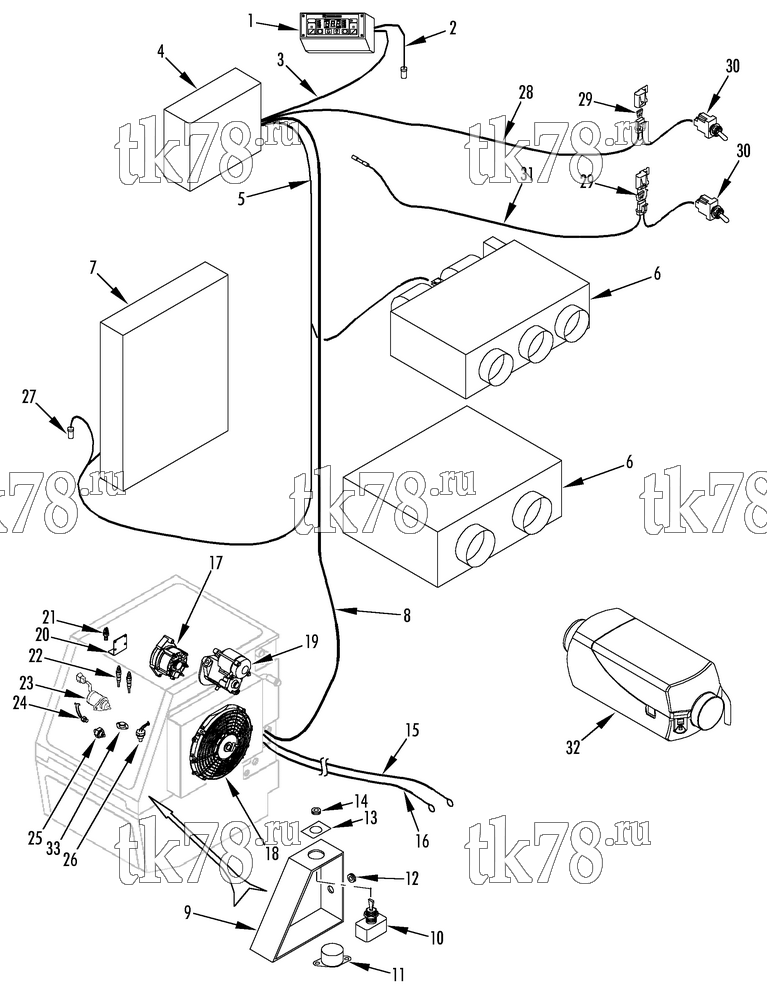

Установкa Thermo King схема ELECTRICAL COMPONENTS (TIER 1 UNITS) – 214D2
Обновление от: 4/19/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-2399 | CONTROLLER | 1 | |
| 2 | 41-6944 | HARNESS - sensor | 1 | |
| 3 | 41-7002 | HARNESS - HMI | 1 | |
| 41-654 | CONNECTOR - 4 terminal | 2 | ||
| 41-1807 | TERMINAL (18-24 ga) | 1 | ||
| 4 | NSS | BOX - control (see 205H3) | 1 | |
| 5 | 41-7221 | HARNESS - A/C | 1 | |
| 6 | NSS | EVAPORATOR (see 205H2 or 209G7) | 1 | |
| 7 | NSS | CONDENSER (see 209G8) | 1 | |
| 8 | 45-2145 | HARNESS - main (APU, Tier 1 units, see 205H3) | 1 | |
| 44-2786 | TERMINAL - ground (ring, 3/8, 14 ga) | 5 | ||
| 44-5089 | TERMINAL - ring (yellow, 3/8) | 2 | ||
| 9 | 92-5018 | BOX - switch | 1 | |
| 10 | 44-1357 | SWITCH - on/off | 1 | |
|
10-44-1357 | Выключатель однополюсный | 4 400 ₽ |
|
| PP-44-1357 | Выключатель однополюсный | 2 000 ₽ |
|
|
| 11 | 41-7736 | BUZZER | 1 | |
| 55-3427 | SCREW - buzzer | 2 | ||
| 55-2361 | NUT | 2 | ||
| 12 | 33-1055 | GROMMET | 1 | |
| 13 | 92-5172 | NAMEPLATE - TriPac On/Off | 1 | |
| 14 | 44-739 | BOOT - switch | 1 | |
| 15 | 41-6929 | CABLE - battery (positive) | 1 | |
| 41-5672 | TERMINAL - cable (3/8) | 1 | ||
| 41-5671 | HEAT SHRINK | 1 | ||
| 16 | 41-6930 | CABLE - battery (negative) | 1 | |
| 41-7011 | TERMINAL - lug (5/16, 4 awg) | 1 | ||
| 41-5671 | HEAT SHRINK | 1 | ||
| 17 | 41-9856 | ALTERNATOR (65 amp, see 242H0) | 1 | |
| 18 | 78-1503 | FAN - precool coil (see 208F3) | 1 | |
| 19 | 45-2176 | STARTER 1.2 kW (TriPac engines before 2006) | 1 | |
| US-45-2176 | Стартер DENSO, Tri-Pac | 63 170 ₽ |
|
|
|
10-45-2176 | Стартер, Tri-Pac | 27 780 ₽ |
|
| 20 | 92-5017 | BRACKET - rpm sensor | 1 | |
| 55-5424 | SCREW (hh, M8 x 1.25, szn) | 2 | ||
| 55-5022 | SCREW (hh, M8 x 1.25, szn) | 2 | ||
| 55-790 | LOCKWASHER | 4 | ||
| 55-4613 | FLATWASHER | 4 | ||
| 21 | 44-9298 | SENSOR - rpm | 1 | |
|
10-44-9298 | Датчик оборотов двигателя | 14 400 ₽ |
|
|
PP-44-9298 | Датчик оборотов двигателя | 2 760 ₽ |
|
| 22 | 41-6582 | GLOW PLUG (see 208E5) | 2 | |
|
10-41-6582 | Свеча накаливания, Yanmar 249 / 366 / 374 / 388 / 395 | 2 470 ₽ |
|
|
10-42-916 | Свеча накаливания, Yanmar 370 / 376 | 2 340 ₽ |
|
| PP-41-6582 | Свеча накаливания, Yanmar 249 / 366 / 374 / 388 / 395 | 1 190 ₽ |
|
|
| PP-42-916 | Свеча накаливания, Yanmar 370 / 376 | 1 190 ₽ |
|
|
| 23 | 42-100 | SOLENOID - stop (see 208E3) | 1 | |
| 42-100 OEM | Соленоид отсечки топлива, SB/SL/SLe/SLX/SLXe/TS/T-Series | 8 890 ₽ |
|
|
| PP-42-100 | Соленоид отсечки топлива, SB/SL/SLe/SLX/SLXe/TS/T-Series | 4 870 ₽ |
|
|
|
PP-41-6383 | Соленоид отсечки топлива, SB/SL/SLe/SLX/SLXe/TS/T-Series | 2 000 ₽ |
|
| 24 | 41-7069 | BOLT - thermistor | 1 | |
| 20-41-7069 | Термистор | 7 880 ₽ |
|
|
| 25 | 41-6801 | SWITCH - oil pressure (see 209A5) | 1 | |
| 20-41-6801 | Выключатель давления масла | 3 400 ₽ |
|
|
| 26 | 44-3018 | SWITCH - water temperature | 1 | |
|
10-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 5 830 ₽ |
|
| PP-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 2 200 ₽ |
|
|
| 203-385 | SEALER - thread | A/R | ||
| 27 | 41-7020 | SWTICH - binary pressure (part of dehydrator) | 1 | |
| 10-41-7020 | Переключатель | 10 790 ₽ |
|
|
| 28 | 41-7004 | HARNESS - standby ignition lead | 1 | |
| 41-7005 | HARNESS - standby ignition lead (option, w/ switch) | 1 | ||
| 41-1770 | HOLDER - fuse | 1 | ||
| 30-41-1770 | Гнездо предохранителя 32V 30А | 760 ₽ |
|
|
| 29 | 41-1932 | FUSE (1 amp) | 1 | |
| 41-1769 | COVER - fuse | 1 | ||
| 30-41-1769 | Крышка предохранителя | 510 ₽ |
|
|
| 30 | 44-490 | SWITCH - standby (option) | 1 | |
|
10-44-490 | Выключатель | 2 590 ₽ |
|
| 31 | 41-7285 | HARNESS - ignition lead repair (incl fuse, diode & splice) | 1 | |
| 32 | 41-8391 | HEATER (D2 Standard) | 1 | |
| 41-7010 | HEATER (D4 optional) | 1 | ||
| 33 | 44-6018 | SWITCH - temperature (see 208F3) | 1 | |
| 30-44-6018 | Выключатель температурный | 15 030 ₽ |
|
