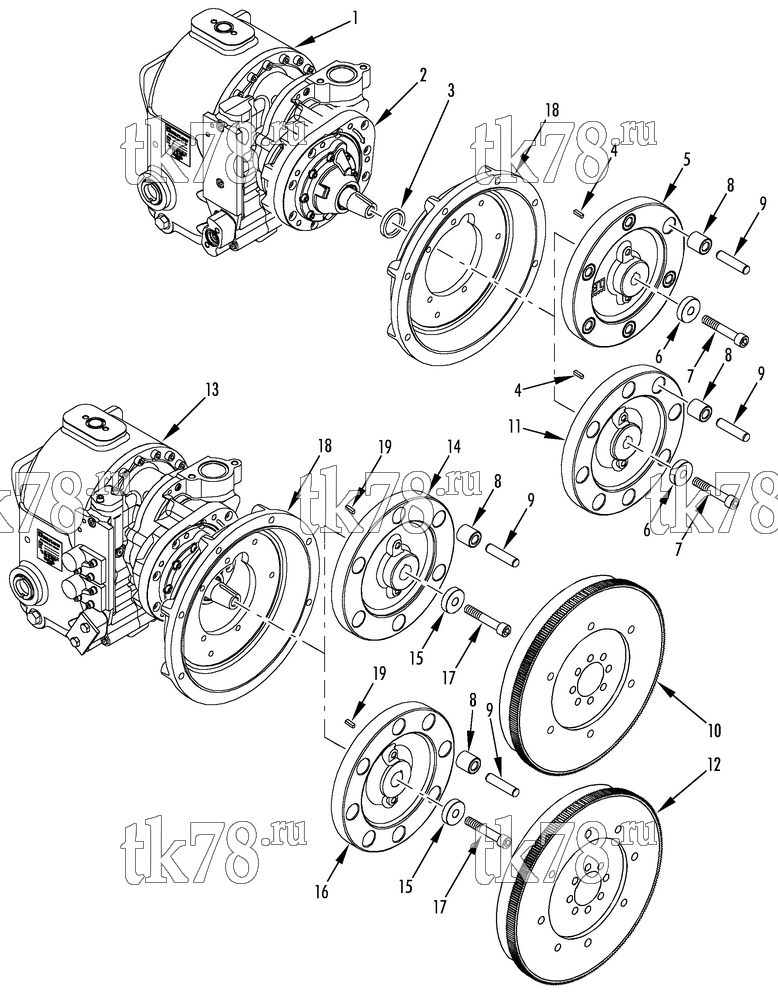

Установкa Thermo King схема COMPRESSOR COUPLING – 214D0
Обновление от: 5/16/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | N/A | COMPRESSOR - screw (1.000 shaft, see 128C4) | 1 | |
| 2 | 20-181 | KIT - drive shaft & coupling (converts 1.000 shaft to 1.187 shaft compressor) | 1 | |
| 3 | 22-1100 | SEAL - lip (1.000 shaft, see 128C4) | 1 | |
|
US-22-1100 | Сальник коленвала, X426/X430/X640/Scroll T-Series (R404A) | 46 220 ₽ |
|
|
10-22-1100 | Сальник коленвала, X426/X430/X640/Scroll T-Series (R404A) | 16 880 ₽ |
|
|
PP-22-1100 | Сальник коленвала, X426/X430/X640/Scroll T-Series (R404A) | 8 700 ₽ |
|
| 4 | 55-9024 | KEY (1-1/8 lg) | 1 | |
|
10-55-9024 | Шпонка коленвала, X418/426/430 | 590 ₽ |
|
| 5 | 77-2504 | COUPLING - compressor drive (small shaft, 6-pin) | 1 | |
|
10-77-2504 | Маховик | 80 370 ₽ |
|
| 6 | 77-2498 | SPACER | 1 | |
|
10-77-2498 | Шайба муфты сцепления | 990 ₽ |
|
| 7 | 55-4316 | SCREW - coupling (3/8-16) | 1 | |
|
10-55-4316 | Болт коленвала компрессора X426/430 | 470 ₽ |
|
| 8 | 77-2856 | BUSHING | A/R | |
|
10-77-2856 | Втулка муфты сцепления | 1 080 ₽ |
|
|
PP-77-2856 | Втулка муфты сцепления | 490 ₽ |
|
| 9 | 55-6376 | PIN - dowel | A/R | |
| 55-6377 | PIN - dowel (0.501 oversize) | A/R | ||
| 10 | 11-5837 | FLYWHEEL (6-pins) | 1 | |
| 11 | 77-2358 | COUPLING - compressor drive (small shaft, 8-pin) | 1 | |
|
10-77-2358 | Муфта сцепления, SB-III/SMX/SL | 40 700 ₽ |
|
| PP-77-2358 | Муфта сцепления, SB-III/SMX/SL | 13 990 ₽ |
|
|
| 12 | 12-776 | FLYWHEEL (8-pins) | 1 | |
| 13 | 8102-816 | COMPRESSOR - S391 (1.187 shaft, see 144B14) | 1 | |
| 14 | 77-2509 | COUPLING - compressor drive (large shaft, 6-pin) | 1 | |
|
10-77-2509 | Муфта сцепления, SB-II/III / SMX/SMX-II | 15 390 ₽ |
|
| 15 | 77-2505 | SPACER | 1 | |
|
10-77-2505 | Шайба, Drive Coupler (Large Shaft) | 3 660 ₽ |
|
| 16 | 77-2506 | COUPLING - compressor drive (large shaft, 8-pin) | 1 | |
|
10-77-2506 | Муфта сцепления, SB/SMX/SMX-II / SL/Sle 30 | 48 300 ₽ |
|
| 17 | 55-9031 | SCREW - coupling (M12 x 70 mm) | 1 | |
|
10-55-9031 | Болт, 12MM, Drive Coupler (Large Shaft) | 1 930 ₽ |
|
| 18 | 22-799 | FLANGE - compressor (see 106D11) | 1 | |
| 19 | 55-9032 | KEY (5/8 lg) | 1 | |
|
10-55-9032 | Шпонка коленвала, X426LS/430LS | 590 ₽ |
|
