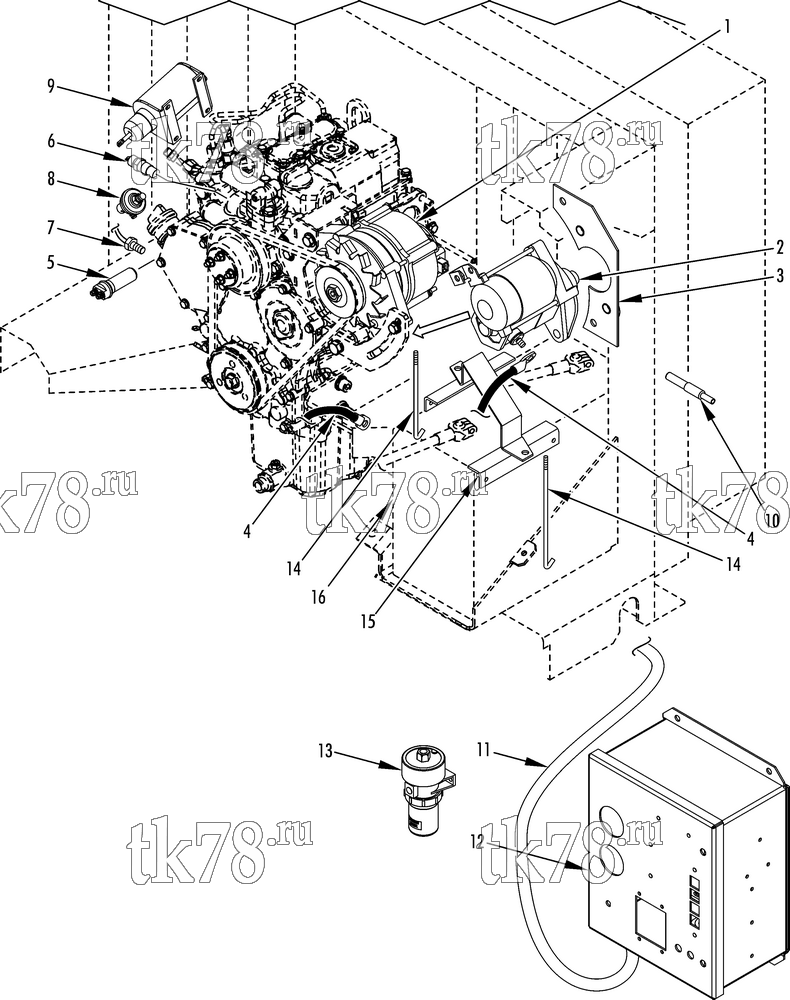

Установкa Thermo King схема ELECTRIC COMPONENTS – 213D1
Обновление от: 11/28/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-2254 | ALTERNATOR (37 amp, see 208F4) | 1 | |
|
10-45-2589 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
|
10-41-6780 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
| 41-8461 | ALTERNATOR (37 amp, Standard Life Plus) | 1 | ||
|
|
10-41-6780 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
|
|
10-45-2589 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
| 845-2254 | ALTERNATOR (37 amp, remanufactured) | 1 | ||
| 2 | 45-2176 | STARTER (see 209A9) | 1 | |
| US-45-2176 | Стартер DENSO, Tri-Pac | 63 170 ₽ |
|
|
|
10-45-2176 | Стартер, Tri-Pac | 27 780 ₽ |
|
| 55-2976 | SCREW - starter | 2 | ||
| 55-2159 | LOCKWASHER | 2 | ||
| 55-2173 | FLATWASHER | 2 | ||
| 3 | 92-5642 | NUTSTRIP - starter | 1 | |
| 4 | 44-6698 | CABLE - battery (smooth posts) | 2 | |
| 44-5518 | CABLE - battery (threaded terminals) | 2 | ||
| 5 | 44-9298 | SENSOR - RPM | 1 | |
|
10-44-9298 | Датчик оборотов двигателя | 14 400 ₽ |
|
|
PP-44-9298 | Датчик оборотов двигателя | 3 310 ₽ |
|
| 6 | 44-3018 | SWITCH - water temperature | 1 | |
|
10-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 5 830 ₽ |
|
| PP-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 2 200 ₽ |
|
|
| 203-400 | SEALER - thread | A/R | ||
| 7 | 41-597 | BOLT - thermistor | 1 | |
| 8 | 41-6865 | SWITCH - oil pressure | 1 | |
|
10-41-6865 | Сенсор давления масла, Yanmar, кроме 370 / 376 | 9 310 ₽ |
|
| PP-41-6865 | Сенсор давления масла, Yanmar, кроме 370 / 376 | 2 720 ₽ |
|
|
| 55-1653 | ELBOW - switch | 1 | ||
| 9 | 41-7748 | SOLENOID - throttle (see 213D1) | 1 | |
| 10 | 44-9868 | SENSOR - temperature | 1 | |
| 55-549 | CLAMP - sensor | 1 | ||
| 55-3027 | SCREW - clamp | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 1 | ||
| 11 | 41-7212 | HARNESS - main | 1 | |
| 12 | NSS | CONTROL BOX (see 213E0) | 1 | |
| 13 | 41-7059 | PUMP - fuel | 1 | |
|
30-66840-00 OEM | Топливный насос подкачки | 22 850 ₽ |
|
|
US-41-7059 | Топливный насос подкачки | 19 340 ₽ |
|
| P-30-01108-12 | Топливный насос подкачки, HP | 9 870 ₽ |
|
|
|
10-41-7059-HP | Топливный насос подкачки, HP | 9 460 ₽ |
|
| 10-376 | KIT - filter (diesel) | 1 | ||
| 10-378 | KIT - bowl & gasket | 1 | ||
| 33-4256 | GASKET - bowl | 1 | ||
| 14 | 92-6828 | ROD - battery (curbside, 5.35 in long) | 1 | |
| 92-6829 | ROD - battery (roadside, 7.0 in long) | 1 | ||
| 92-6933 | ROD - battery (7.75 in long) | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 55-4118 | NUT | 2 | ||
| 15 | 99-9312 | BRACKET - battery holddown | 1 | |
| 16 | 203-339 | BATTERY (480 CCA, smooth posts) | 1 | |
| 203-340 | BATTERY (625 CCA, smooth posts) | 1 | ||
| 203-774 | BATTERY (640 CCA, smooth posts) | 1 | ||
| 203-765 | BATTERY (760 CCA, smooth posts) | 1 | ||
| 203-777 | BATTERY - EON (880 CCA, smooth posts) | 1 |
