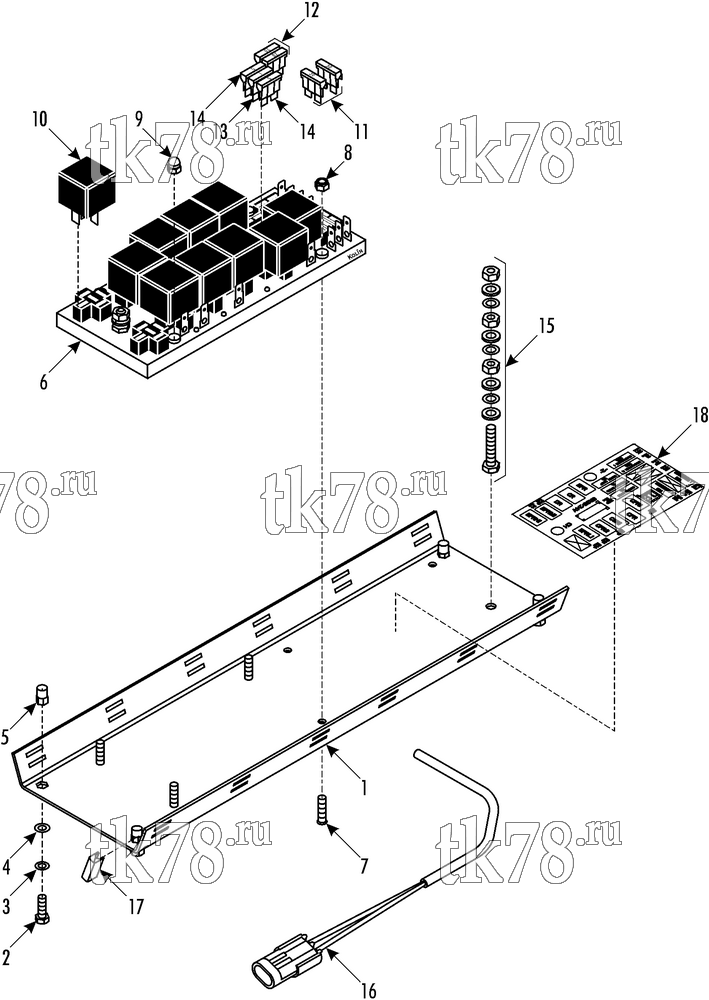

Установкa Thermo King схема CONTROL PANEL (24V) – 206D9
Обновление от: 2/1/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-5106 | PLATE - panel | 1 | |
| 2 | 55-7340 | SCREW - panel | 4 | |
| 3 | 55-7171 | LOCKWASHER | 4 | |
| 4 | 55-7089 | FLATWASHER | 4 | |
| 5 | 55-8375 | NUT - captive | 4 | |
| 6 | 41-6097 | BOARD | 1 | |
| 7 | 55-9623 | STUD - board | 4 | |
| 8 | 55-7034 | NUT | 3 | |
| 9 | 51-310 | NUT - plastic | 1 | |
| 10 | 41-896 | RELAY - 24V | A/R | |
| 11 | 41-2978 | FUSE (20 amp) | 2 | |
| 30-41-2978 | Предохранитель 32V 20А | 500 ₽ |
|
|
| 12 | 44-9758 | FUSE (10 amp) | 2 | |
|
10-44-9758 | Предохранитель 10 ампер 10 шт | 1 860 ₽ |
|
| 13 | 41-1932 | FUSE (1 amp) | 1 | |
| 14 | 44-9524 | FUSE (3 amp) | 2 | |
|
10-44-9524 | Предохранитель 3 ампер 10 шт | 1 860 ₽ |
|
| 15 | 51-104 | STUD - negative | 1 | |
| 55-7378 | LOCKWASHER | 3 | ||
| 51-105 | NUT | 3 | ||
| 51-106 | FLATWASHER | 4 | ||
| 16 | 41-4157 | SENSOR - temperature | 1 | |
| 17 | 92-3279 | STRIP - panel | A/R | |
| 18 | 92-5110 | NAMEPLATE - Control Panel (24V, SR350) | 1 |
