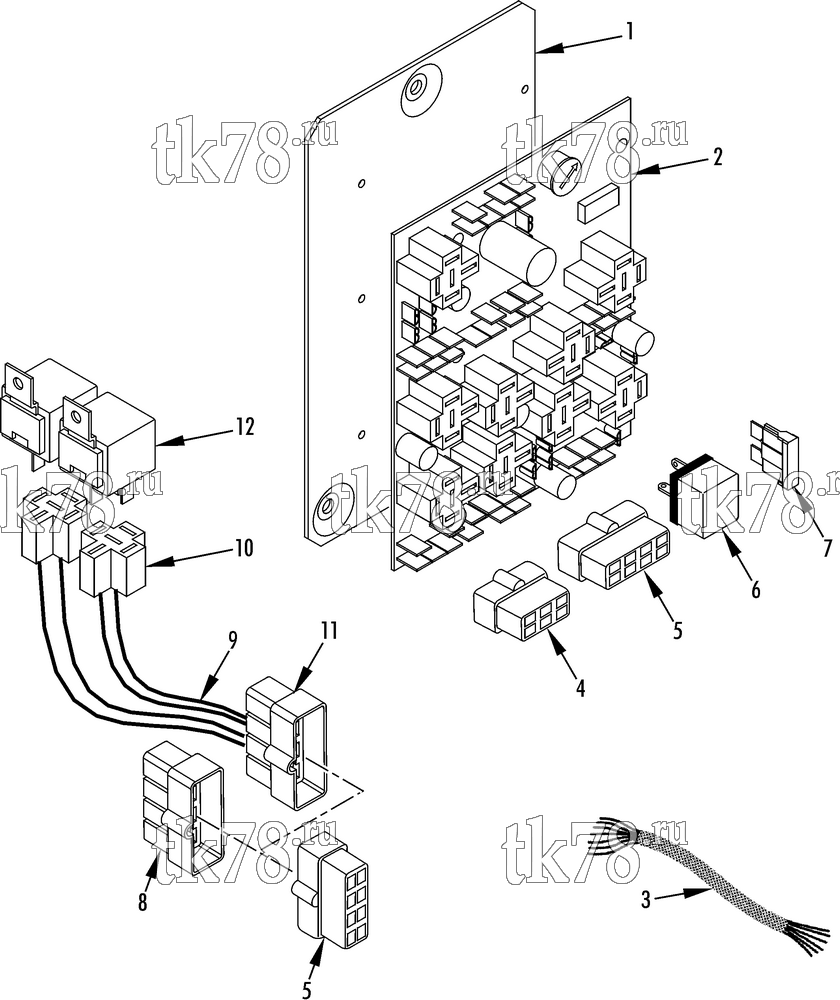

Установкa Thermo King схема CONTROL BOX (V-500 10) – 200E7
Обновление от: 12/29/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-4591 | BRACKET - control box | 1 | |
| 55-7404 | LOCKWASHER | 3 | ||
| 55-7034 | NUT | 3 | ||
| 2 | 41-4372 | BOARD - printed circuit | 1 | |
| 55-7664 | SCREW - board | 6 | ||
| 3 | 41-6456 | HARNESS - main | 1 | |
| 4 | 41-876 | CONNECTOR (6-pin) | 4 | |
| 5 | 41-946 | CONNECTOR (8-pin) | 4 | |
| 44-2789 | TERMINAL - ring (blue 1/4, 14-16 ga) | A/R | ||
| 44-7245 | TERMINAL - pin (red, 16-22 ga, #10) | A/R | ||
| 6 | 41-895 | RELAY (12V) | 9 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 7 | 44-9344 | FUSE (15 amp) | 7 | |
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 44-9524 | FUSE (3 amp) | 1 | ||
|
10-44-9524 | Предохранитель 3 ампер 10 шт | 1 860 ₽ |
|
| 8 | 41-4519 | CONNECTOR - bridge | 1 | |
| 41-877 | TERMINAL | 2 | ||
| 9 | 41-6458 | HARNESS - heat (option 085146, see 200F2) | 1 | |
| 10 | 44-5572 | SOCKET - relay | 1 | |
| 11 | 41-4493 | CONNECTOR (8-pin) | 1 | |
| 12 | 41-894 | RELAY - mini | 1 |
