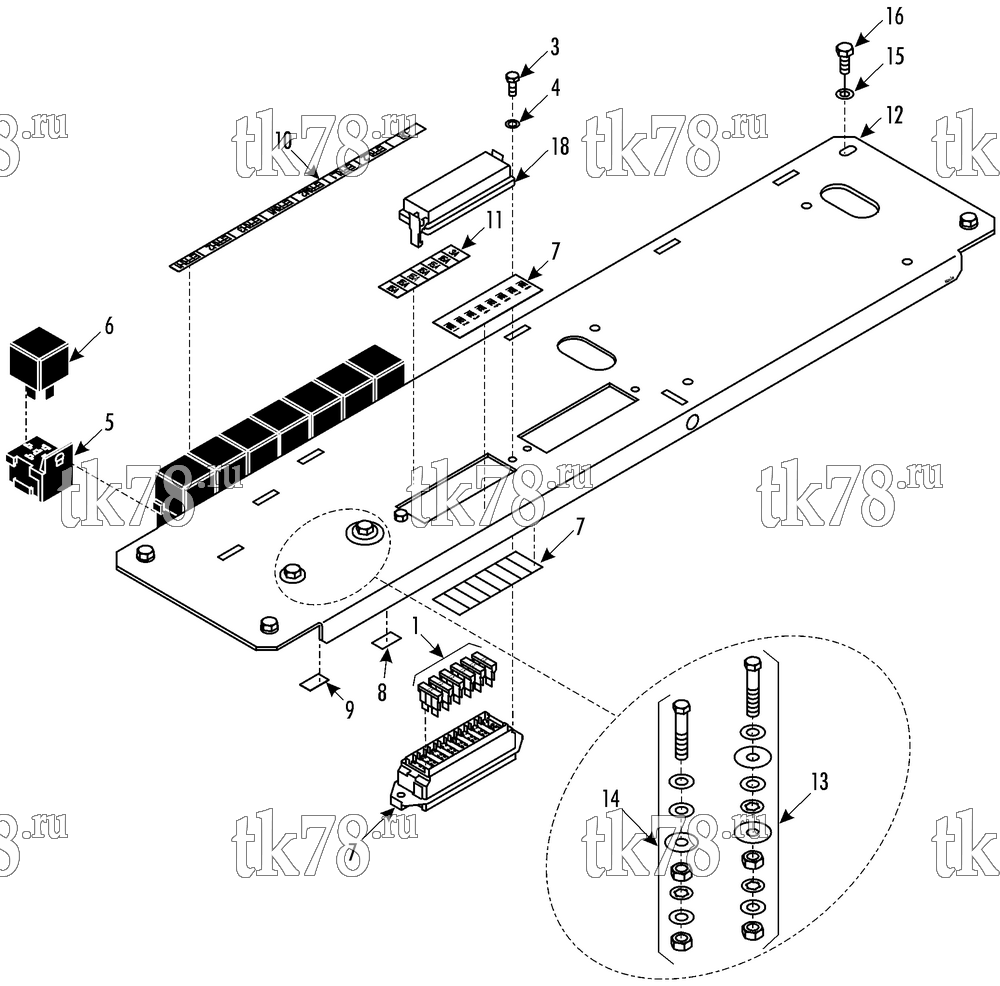

Установкa Thermo King схема CONTROL PANEL – 179C9
Обновление от: 1/7/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-9524 | FUSE (3 amp) | 1 | |
|
10-44-9524 | Предохранитель 3 ампер 10 шт | 1 860 ₽ |
|
| 2 | 44-9344 | FUSE (15 amp) | 6 | |
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 3 | 55-2995 | SCREW - holder | 2 | |
| 4 | 55-2964 | LOCKWASHER | 2 | |
| 5 | 44-5537 | SOCKET - relay | 8 | |
| 55-5130 | RIVET | 3 | ||
| 6 | 41-896 | RELAY - mini | 8 | |
| 7 | 92-447 | NAMEPLATE - Fuse (see 179C0) | 2 | |
| 8 | 92-449 | NAMEPLATE - Positive Terminal (see 179C0) | 1 | |
| 9 | 92-450 | NAMEPLATE - Negative Terminal (see 179C0) | 1 | |
| 10 | 92-2614 | NAMEPLATE - Relay (see 179C0) | 2 | |
| 11 | 92-2615 | NAMEPLATE - Fuse (see 179C0) | 2 | |
| 12 | 92-445 | PANEL - control | 1 | |
| 13 | 305-1654 | SCREW - positive terminal | 1 | |
| 55-8955 | FLATWASHER | 3 | ||
| 55-8631 | WASHER - shoulder (nylon) | 1 | ||
| 55-3238 | LOCKWASHER | 2 | ||
| 55-8693 | WASHER (nylon) | 1 | ||
| 305-1653 | NUT | 2 | ||
| 14 | 305-1654 | SCREW - negative terminal | 1 | |
| 55-8955 | FLATWASHER | 3 | ||
| 55-8568 | LOCKWASHER | 1 | ||
| 305-1653 | NUT | 2 | ||
| 55-3238 | LOCKWASHER | 2 | ||
| 15 | 55-7170 | LOCKWASHER | 4 | |
| 16 | 55-7172 | SCREW - panel | 4 | |
| 17 | 41-3690 | FUSE HOLDER | 1 | |
| 18 | 41-3691 | COVER - fuse holder | 1 |
