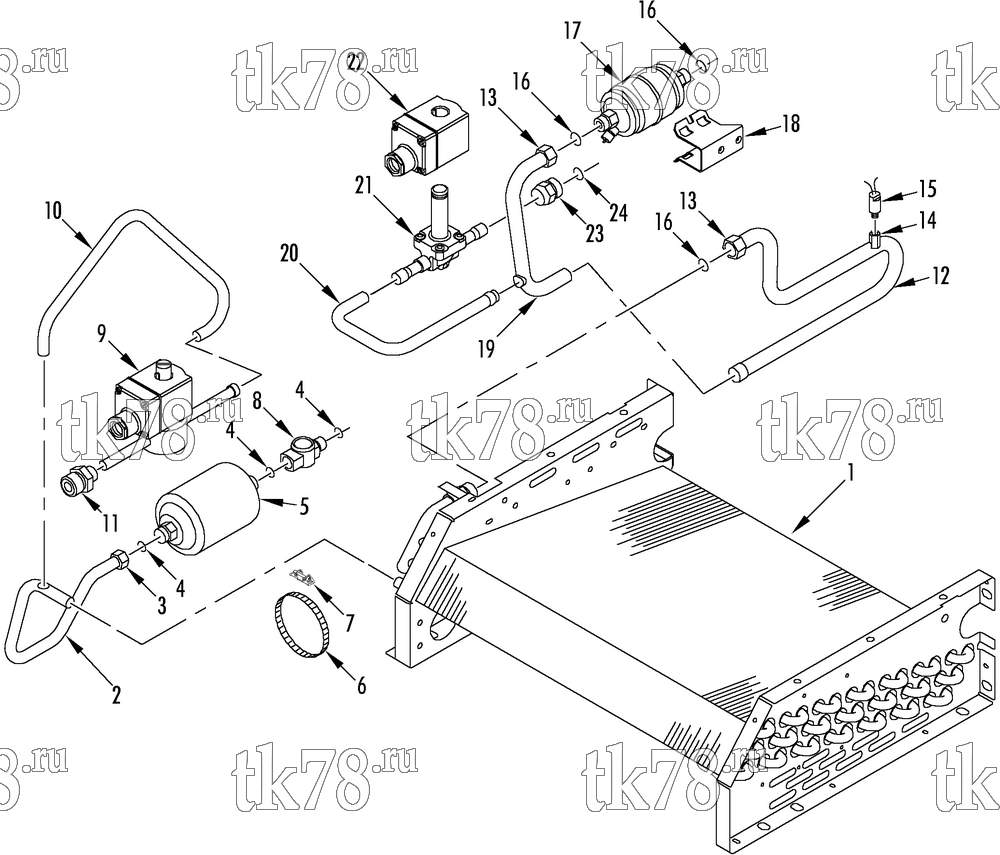

Установкa Thermo King схема REFRIGERATION COMPONENTS (V-190 MAX) – 170E7
Обновление от: 3/11/02
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1690 | COIL - condenser | 1 | |
| 2 | 61-1284 | TUBE - liquid | 1 | |
| 3 | 55-9009 | NUT - adapter (#6) | 1 | |
| 55-9286 | SHOULDER (#6) | 1 | ||
| 4 | 33-1015 | O-RING (#6) | 4 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 5 | 66-8718 | DEHYDRATOR - o-ring seal (#6) | 1 | |
|
14-00326-04 OEM | Дегидратор, Xarios / Zephyr | 4 340 ₽ |
|
|
P-14-00326-04 | Дегидратор, Xarios / Zephyr | 4 080 ₽ |
|
| PP-14-00326-04 | Дегидратор, Xarios / Zephyr | 2 350 ₽ |
|
|
| 6 | 55-9486 | BAND - separator | 2 | |
| 7 | 91-9987 | FIXATION - band | 2 | |
| 8 | 66-8738 | SIGHT GLASS (#6) | 1 | |
| 9 | 66-5908 | VALVE - solenoid (12V) | 1 | |
|
10-66-5908 | Соленоид, KD-II/MD-II/RD-II/SB-III/V-Series | 28 750 ₽ |
|
| 66-7071 | VALVE - solenoid (24V) | 1 | ||
| 41-5047 | COIL - solenoid (12V) | 1 | ||
| 41-5051 | COIL - valve (24V) | 1 | ||
| 55-1384 | SCREW - solenoid valve | 2 | ||
| 55-7861 | LOCKWASHER | 2 | ||
| 55-7697 | FLATWASHER | 2 | ||
| 10 | 61-1285 | TUBE - jet cool | 1 | |
| 11 | 55-9923 | ADAPTER - o-ring seal (#4) | 1 | |
| 12 | 61-1286 | TUBE - discharge | 1 | |
| 13 | 61-469 | NUT - adapter (#8) | 2 | |
| 61-470 | SHOULDER - o-ring seal (#8) | 2 | ||
| 14 | 61-439 | ADAPTER - switch (female) | 1 | |
| 15 | 44-8064 | SWITCH - hpco | 1 | |
|
44-8064 OEM | Датчик HP, V-Series | 9 100 ₽ |
|
|
10-44-8064 | Датчик HP, V-Series | 4 630 ₽ |
|
| 16 | 33-1015 | O-RING (3/8) | 3 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 17 | 66-8548 | SEPARATOR - oil | 1 | |
|
66-8548 OEM | Масляный сепаратор, V/VM-Series | 18 750 ₽ |
|
|
10-66-8548 | Масляный сепаратор, V/VM-Series | 4 870 ₽ |
|
| 18 | 92-1711 | SUPPORT - oil separator | 1 | |
| 55-7340 | SCREW - support | 2 | ||
| 55-7404 | LOCKWASHER | 2 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 19 | 61-1282 | TUBE - discharge | 1 | |
| 20 | 61-1283 | TUBE - discharge to solenoid | 1 | |
| 21 | 66-7878 | BASE - solenoid | 1 | |
| 55-7036 | SCREW - base | 1 | ||
| 55-7404 | LOCKWASHER | 1 | ||
| 55-7089 | FLATWASHER | 1 | ||
| 22 | 41-892 | COIL - solenoid (12V) | 1 | |
| 41-5051 | COIL - valve (24V) | 1 | ||
| 23 | 55-9922 | ADAPTER - o-ring seal | 1 | |
| 24 | 33-566 | O-RING - discharge (#8) | 1 |
