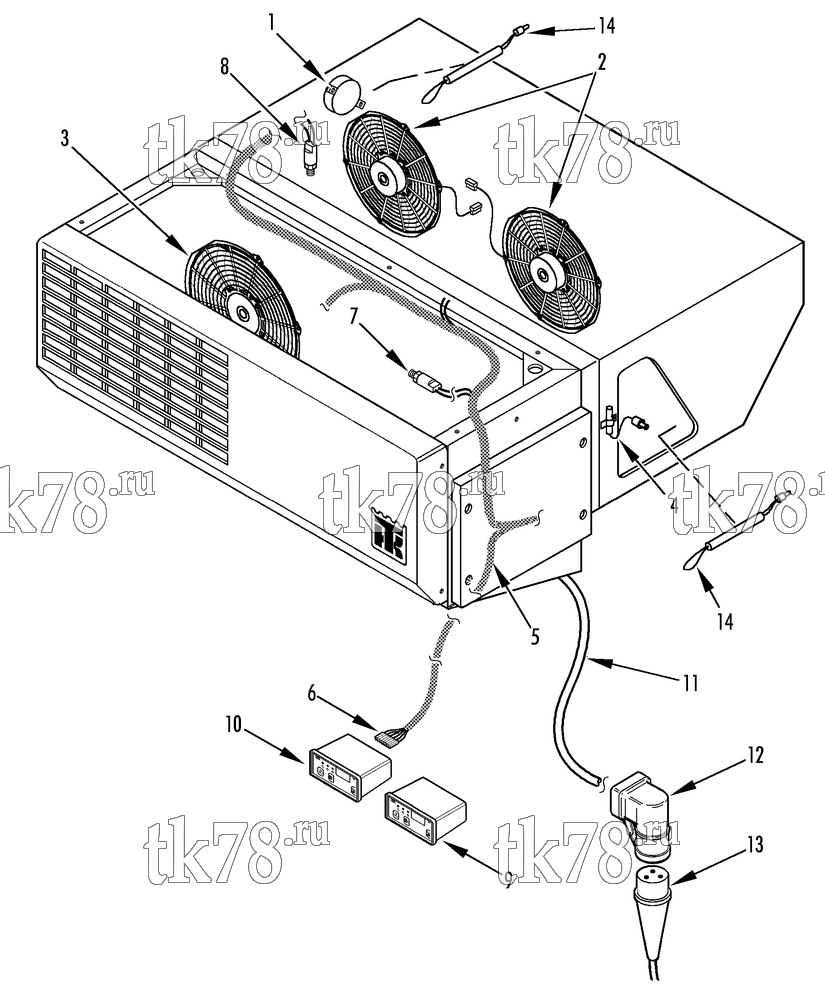

Установкa Thermo King схема ELECTRICAL COMPONENTS (VM-400 MAX TC) – 155F10
Обновление от: 7/16/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-3136 | SWITCH - defrost | 1 | |
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 44-5839 | TERMINAL - female (14-16 ga) | 2 | ||
| 44-6324 | SEAL - cable (blue, 12-14 ga) | 1 | ||
| 55-8238 | SCREW - switch | 2 | ||
| 2 | 78-1187 | FAN & MOTOR - evaporator (12V) | 2 | |
| 10-78-1187 | Вентилятор испарителя 12V, V-520/VM-4XX | 10 220 ₽ |
|
|
|
P-54-00598-03 | Вентилятор испарителя 12V, Viento | 10 220 ₽ |
|
|
PP-54-00598-03 | Вентилятор испарителя 12V, Viento | 4 870 ₽ |
|
| PP-78-1187 | Вентилятор испарителя 12V, V-520/VM-4XX | 4 870 ₽ |
|
|
| 78-1188 | FAN & MOTOR - evaporator (24V) | 1 | ||
| P-54-00598-13 | Вентилятор испарителя 24V, Viento | 11 220 ₽ |
|
|
| 10-78-1188 | Вентилятор испарителя 24V, VM-Series | 11 220 ₽ |
|
|
|
PP-78-1188 | Вентилятор испарителя 24V, VM-Series | 4 570 ₽ |
|
|
PP-54-00598-13 | Вентилятор испарителя 24V, Viento | 4 570 ₽ |
|
| 44-7330 | CONNECTOR - shroud (1-pin, see 115D14) | 2 | ||
| 44-5836 | TERMINAL - male (14-16 ga) | 2 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 4 | ||
| 55-7036 | SCREW - fan | 8 | ||
| 55-7089 | FLATWASHER | 8 | ||
| 55-7404 | LOCKWASHER | 8 | ||
| 3 | 78-1202 | FAN & MOTOR - condenser (24V) | 1 | |
| 78-1201 | FAN & MOTOR - condenser (12V) | 1 | ||
| 44-5836 | TERMINAL - male (14-16 ga) | 1 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 1 | ||
| 44-5835 | CONNECTOR - shroud | 2 | ||
| 55-7036 | SCREW - fan | 4 | ||
| 55-7033 | FLATWASHER | 4 | ||
| 55-7404 | LOCKWASHER | 4 | ||
| 4 | 41-3143 | SENSOR - only | 1 | |
| 44-5839 | TERMINAL - female (14-16 ga) | 1 | ||
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 44-8681 | SEAL - cable (red, 18-20 ga) | 1 | ||
| 5 | 41-3154 | HARNESS - main (VM-400 270 mm) | 1 | |
| 41-3153 | HARNESS - main (VM-400 SLE) | 1 | ||
| 6 | 41-4528 | CONNECTOR (10-pin) | 1 | |
| 7 | 44-7991 | SWITCH - hpco | 1 | |
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 44-5839 | TERMINAL - female (14-16 ga) | 2 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 1 | ||
| 8 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 44-6132 | SWITCH - only | 1 | ||
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 44-5839 | TERMINAL - female (14-16 ga) | 2 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 1 | ||
| 9 | 41-3161 | BOX - cab control (M14B) | 1 | |
| 10 | 45-1771 | BOX - cab control (M12B) | 2 | |
| 11 | 41-1518 | HARNESS - power | 1 | |
| 12 | 41-978 | RECEPTACLE - power (380/3/50, mates w/ 41-2026) | 1 | |
| 13 | 41-2026 | PLUG - power (380/3/50, mates w/ 41-978) | 1 | |
| 33-2684 | GASKET | 1 | ||
| 14 | 41-9627 | HARNESS - drain tube heater (VM-400 TC 12V only) | 2 | |
| 41-3156 | HARNESS - drain tube heater (VM-400 TC 24V only) | 2 | ||
| 44-5835 | CONNECTOR - shroud | 1 | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | 1 | ||
| 44-5883 | TERMINAL - male (18-20 ga) | 2 |
