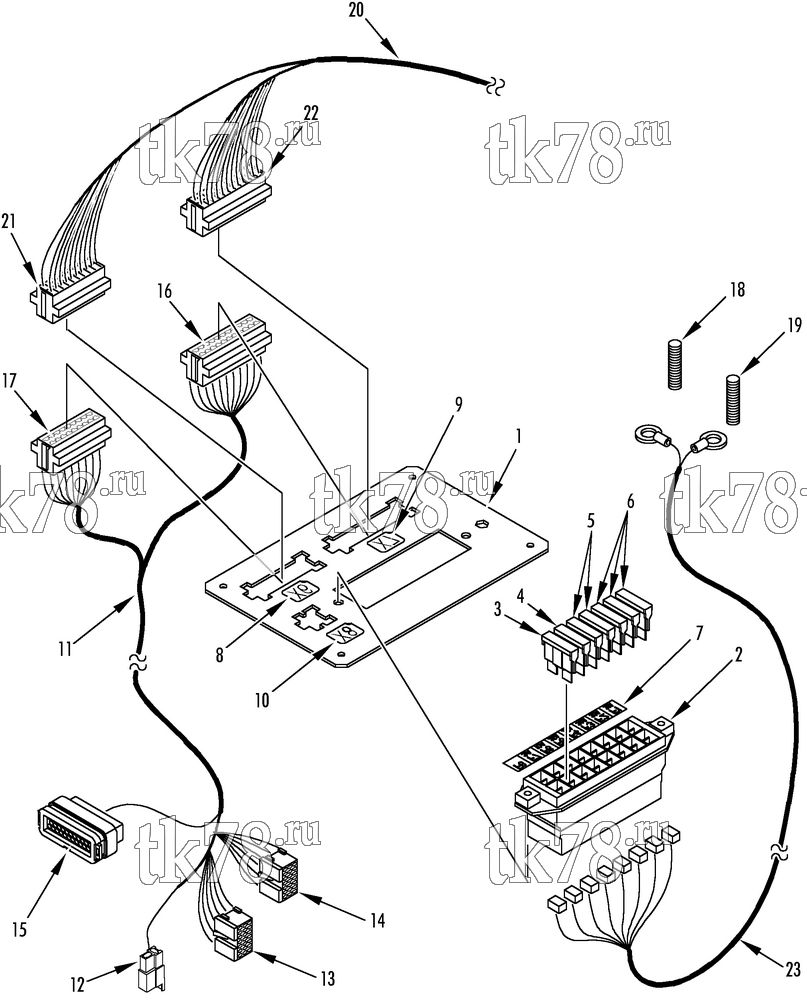

Установкa Thermo King схема BRACKET - TERMINAL/FUSE – 155C14
Обновление от: 3/8/00
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-124 | BRACKET - terminal | 1 | |
| 55-5130 | RIVET - bracket | 4 | ||
| 2 | 92-140 | BRACKET - fuse | 1 | |
| 3 | 44-9524 | FUSE (3 amp) | 1 | |
|
10-44-9524 | Предохранитель 3 ампер 10 шт | 1 860 ₽ |
|
| 4 | 44-9758 | FUSE (10 amp) | 1 | |
|
10-44-9758 | Предохранитель 10 ампер 10 шт | 1 860 ₽ |
|
| 5 | 41-1259 | FUSE (25 amp) | 2 | |
|
10-41-1259 | Предохранитель 25 ампер 10 шт | 1 860 ₽ |
|
| 6 | 41-1771 | FUSE (30 amp) | 3 | |
| 30-41-1771 | Предохранитель 32V 30А | 460 ₽ |
|
|
| 7 | 92-130 | NAMEPLATE - fuse bracket | 2 | |
| 8 | 92-127 | NAMEPLATE - X6 | 1 | |
| 9 | 92-128 | NAMEPLATE - X7 | 1 | |
| 10 | 92-129 | NAMEPLATE - X8 | 1 | |
| 11 | 41-3492 | HARNESS - control | 1 | |
| 12 | 41-3493 | CONNECTOR - 3-way | 1 | |
| 13 | 41-3494 | RECEPTACLE - X1 (21-pin) | 1 | |
| 41-3495 | RECEPTACLE - X2 (21-pin) | 1 | ||
| 15 | 41-2765 | RECEPTACLE - X3 (22-pin) | 1 | |
| 16 | 41-3496 | RECEPTACLE - X7 (22-pin) | 1 | |
| 17 | 41-3497 | RECEPTACLE - X6 (18-pin) | 1 | |
| 18 | 55-9367 | STUD - positive | 1 | |
| 55-8631 | WASHER (nylon) | 1 | ||
| 305-1653 | NUT | 4 | ||
| 55-8955 | FLATWASHER | 6 | ||
| 55-3238 | LOCKWASHER (internal tooth) | 4 | ||
| 19 | 55-9191 | STUD - ground | 1 | |
| 55-448 | FLATWASHER | 6 | ||
| 55-3672 | LOCKWASHER (internal tooth) | 4 | ||
| 55-9189 | NUT | 4 | ||
| 20 | 41-3486 | HARNESS - control | 1 | |
| 21 | 41-2772 | CONNECTOR - X6 (18-pin, male) | 1 | |
| 22 | 41-2765 | CONNECTOR - X7 (22-pin, male) | 1 | |
| 23 | 41-3488 | HARNESS - fuse bracket | 1 |
