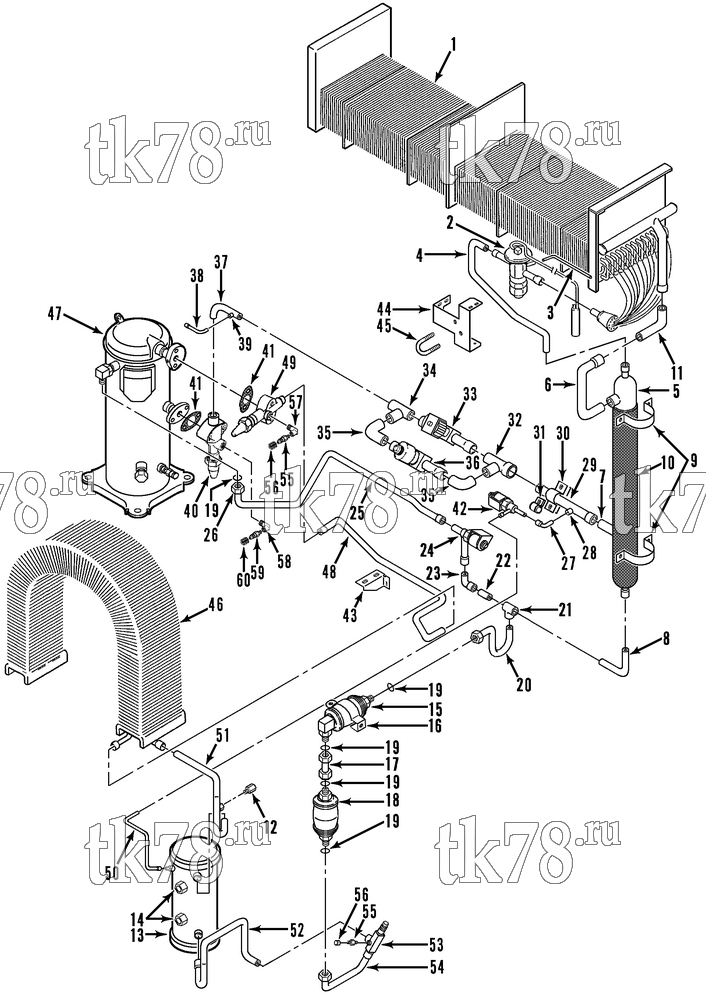

Установкa Thermo King схема REFRIGERATION COMPONENTS – 139D3
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1272 | COIL - evaporator | 1 | |
| 2 | 66-7980 | VALVE - expansion | 1 | |
| 66-9378 | SCREEN - inlet | 1 | ||
| 66-4101 | ELEMENT - power | 1 | ||
| 3 | 66-5367 | TUBE - equalizer | 1 | |
| 4 | 66-5366 | TUBE - exchanger to expansion valve | 1 | |
| 5 | 67-1073 | HEAT EXCHANGER | 1 | |
| 6 | 66-4537 | TUBE - exchanger to coil | 1 | |
| 7 | 66-6403 | TUBE - suction | 1 | |
| 8 | 66-4466 | TUBE - liquid | 1 | |
| 91-6624 | CLAMP - exchanger | 2 | ||
| 55-3101 | RIVET - clamp | 4 | ||
| 10 | 91-6962 | INSULATION - exchanger | 1 | |
| 11 | 66-4538 | TUBE - exchanger to coil | 1 | |
| 66-7392 | VALVE - relief | 1 | ||
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING - relief valve | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 13 | 67-1430 | TANK - receiver | 1 | |
| 14 | 66-7420 | INDICATOR - liquid | 2 | |
| 55-1587 | SCREW - tank | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 99-1754 | PAD (plastic) | 2 | ||
| 15 | 66-8373 | DEHYDRATOR | 1 | |
| 16 | 55-4390 | HANGER - dehydrator | 1 | |
| 55-1587 | SCREW - hanger | 1 | ||
| 55-3121 | SCREW - dehydrator | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-4953 | LOCKNUT | 1 | ||
| 17 | 66-8375 | TUBE - filter to dehydrator | 1 | |
| 18 | 66-8374 | FILTER | 1 | |
| 19 | 33-1015 | O-RING | 5 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 20 | 66-8372 | TUBE - dehydrator to tee | 1 | |
| 21 | 66-622 | TEE | 1 | |
| 22 | 66-8371 | TUBE - tee to elbow | 1 | |
| 23 | 55-2876 | ELBOW | 1 | |
| 24 | 60-327 | VALVE - solenoid (for connectors see 115D14) | 2 | |
| 41-767 | COIL - valve | 2 | ||
| 25 | 66-8723 | TUBE - liquid injection | 1 | |
| 26 | 55-8268 | SHOULDER - injection tube | 1 | |
| 55-8267 | NUT - shoulder | 1 | ||
| 27 | 55-3250 | ELBOW | 1 | |
| 28 | 66-4341 | COUPLING - reducing | 1 | |
| 29 | 66-8719 | TUBE - exchanger to valve | 1 | |
| 30 | 91-1748 | CLAMP - suction tube (plastic) | 2 | |
| 91-5790 | SPACER - clamp | 1 | ||
| 91-6629 | CLAMP - suction tube | 2 | ||
| 55-4811 | SCREW - clamp | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1806 | LOCKWASHER | 4 | ||
| 31 | 55-6388 | CLAMP - tube (liquid injection) | 4 | |
| 55-3121 | SCREW - clamp | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-4953 | LOCKNUT | 4 | ||
| 32 | 55-4308 | TEE | 1 | |
| 33 | 66-7750 | VALVE - solenoid (for connectors see 115D14) | 1 | |
| 66-7725 | VALVE - solenoid (see 125B11) | 1 | ||
| 34 | 55-5616 | TEE | 1 | |
| 35 | 55-6381 | ELBOW | 2 | |
| 36 | 66-7865 | VALVE - modulation (for connectors see 115D14) | 1 | |
| 66-7981 | VALVE & COIL (see 123A8) | 1 | ||
| 37 | 66-8720 | TUBE - tee to suction valve | 1 | |
| 38 | 66-7359 | TUBE - fitting to gauge | 1 | |
| 39 | 66-8364 | COUPLING | 1 | |
| 40 | 66-2140 | VALVE - suction | 1 | |
| 66-2296 | CAP - service valve (plastic, incl gasket) | 1 | ||
|
10-66-2296 | Крышка сервисного клапана, пластик, X426/430/640 | 1 800 ₽ |
|
| P-17-10812-01 | Крышка сервисного клапана, пластик, 05K/05G/06D | 1 800 ₽ |
|
|
| 33-3007 | GASKET - cap | 1 | ||
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 55-8824 | SCREW - valve | 2 | ||
| 55-8825 | WASHER - sealing | 2 | ||
| 55-2363 | LOCKWASHER | 2 | ||
| 55-2640 | NUT | 2 | ||
| 41 | 33-2805 | GASKET - valve | 2 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 42 | 60-326 | VALVE - liquid injection (for connector see 115D14) | 1 | |
| 41-767 | COIL - valve | 1 | ||
| 43 | 91-2455 | BRACKET - discharge tube | 1 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-4128 | CLAMP - tube | 1 | ||
| 44 | 91-1874 | BRACKET - expansion valve | 1 | |
| 45 | 55-5211 | U-BOLT - valve | 1 | |
| 55-4560 | NUT - u-bolt | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 46 | 67-1383 | COIL - condenser (see 136F2) | 1 | |
| 47 | 102-629 | COMPRESSOR - scroll (see 139D4) | 1 | |
| 48 | 66-8722 | TUBE - valve to condenser | 1 | |
| 49 | 66-3942 | VALVE - discharge | 1 | |
| 66-2296 | CAP - service valve (plastic, incl gasket) | 1 | ||
|
|
10-66-2296 | Крышка сервисного клапана, пластик, X426/430/640 | 1 800 ₽ |
|
| P-17-10812-01 | Крышка сервисного клапана, пластик, 05K/05G/06D | 1 800 ₽ |
|
|
| 33-3007 | GASKET - plastic cap | 1 | ||
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 66-3015 | CAP - valve (brass, incl gasket) | 1 | ||
|
10-66-3015 | Крышка сервисного клапана, латунь, X426/430/640 | 3 000 ₽ |
|
| P-17-10806-10 | Крышка сервисного клапана, латунь, 05K/05G/06D | 3 000 ₽ |
|
|
| 33-350 | GASKET - brass cap | 1 | ||
| 55-9110 | SCREW - valve | 2 | ||
| 55-8825 | WASHER - sealing | 2 | ||
| 55-2363 | LOCKWASHER | 2 | ||
| 55-2640 | NUT | 2 | ||
| 50 | 66-8725 | TUBE - bypass to receiver | 1 | |
| 51 | 66-5745 | TUBE - condenser to receiver tank | 1 | |
| 55-3295 | FITTING - saddle | 1 | ||
| 52 | 66-8724 | TUBE - receiver to valve | 1 | |
| 53 | 66-6603 | VALVE - filter inlet | 1 | |
| 54 | 55-8360 | TUBE - valve to filter | 1 | |
| 55 | 66-6610 | FITTING - refrigerant | 2 | |
| 56 | 66-7182 | CAP - fitting | 2 | |
| 57 | 66-7812 | ADAPTER - elbow (high side) | 1 | |
| 58 | 66-8054 | ADAPTER - fitting (lowside) | 1 | |
| 59 | 66-6607 | FITTING - refrigerant | 1 | |
| 60 | 66-7183 | CAP - fitting | 1 |
