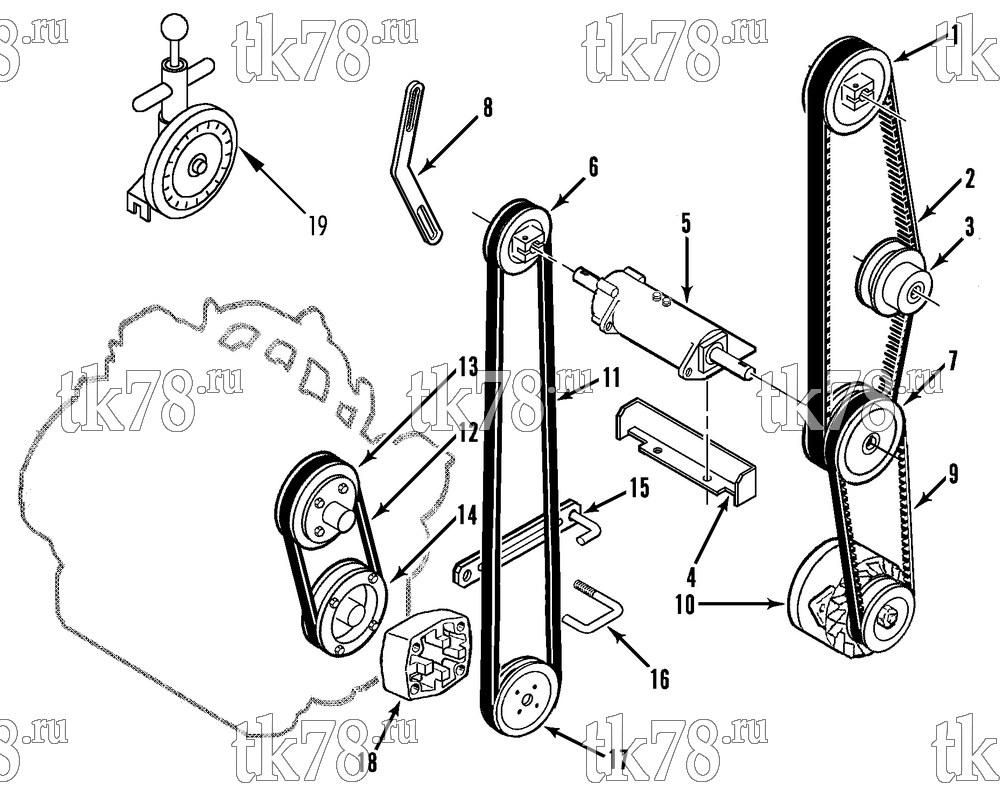

Установкa Thermo King схема BELT GROUP (30s, Before 2/93) – 133A7
Обновление от: 1/22/99
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 77-2132 | PULLEY - fanshaft | 1 | |
| 55-6479 | SCREW - pulley | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-457 | KEY | 1 | ||
| 2 | 78-689 | BELT - idler to fanshaft | 1 | |
| 10-78-689 | Ремень вентиляторов, SMX до 93г. | 5 090 ₽ |
|
|
| 3 | 77-2043 | PULLEY - idler (see 100B11) | 1 | |
| 55-7168 | SCREW - idler pulley | 1 | ||
| 55-5914 | FLATWASHER | 1 | ||
| 55-5749 | WASHER - special | 1 | ||
| 55-7003 | NUT | 1 | ||
| 4 | 91-4524 | ANGLE - jackshaft | 1 | |
| 55-4723 | SCREW - angle | 2 | ||
| 55-5006 | LOCKWASHER | 2 | ||
| 55-5914 | FLATWASHER | 2 | ||
| 91-2939 | NUTPLATE | 2 | ||
| 5 | 78-830 | JACKSHAFT (see 100F11) | 1 | |
| 55-5424 | SCREW - jackshaft | 2 | ||
| 55-7069 | FLATWASHER | 4 | ||
| 55-7006 | NUT | 2 | ||
| 6 | 77-2038 | PULLEY - motor to jackshaft | 1 | |
| 7 | 77-2039 | PULLEY - jackshaft to fanshaft | 1 | |
| 55-457 | KEY | 2 | ||
| 55-6479 | SCREW - pulley | 4 | ||
| 55-790 | LOCKWASHER | 4 | ||
| 8 | 91-2965 | ARM - adjusting | 1 | |
| 55-5424 | SCREW - arm | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-2292 | WASHER | 2 | ||
| 9 | 78-469 | BELT - alternator | 1 | |
|
P-50-00179-11 | Ремень генератора, Maxima | 1 880 ₽ |
|
| PP-50-00179-11 | Ремень генератора, Maxima | 710 ₽ |
|
|
|
50-60434-00 OEM | Ремень генератора, Maxima | по запросу |
|
| 10 | 41-2195 | ALTERNATOR (37 amp, model EA, see 100D14) | 1 | |
|
10-41-2195 | Генератор 37A, MD/RD/TD-II / SB-II/III | 19 510 ₽ |
|
| 41-2194 | ALTERNATOR (23 amp, model 8MR) | 1 | ||
|
10-41-2194 | Генератор 23A, KD/MD/RD/TD-II / TS / SB-II/III | 19 720 ₽ |
|
| 11 | 78-890 | BELT - engine to jackshaft | 1 | |
|
10-78-890 | Ремень двигатель - промвал, SMX 30 | 6 770 ₽ |
|
|
PP-78-890 | Ремень двигатель - промвал, SMX 30 | 2 740 ₽ |
|
| 12 | 78-668 | BELT - water pump | 1 | |
| 10-78-668 | Ремень водяной помпы, SB-III/SMX | 3 680 ₽ |
|
|
| PP-78-668 | Ремень водяной помпы, SB-III/SMX | 1 040 ₽ |
|
|
| 13 | 77-1595 | PULLEY - water pump (stationary) | 1 | |
| 77-1187 | PULLEY - water pump (sliding) | 1 | ||
| 77-1285 | SPACER - pulley (0.035 thk) | 5 | ||
| 77-2164 | SPACER - pulley (0.015 thk) | 1 | ||
| 55-544 | SCREW - pulley | 4 | ||
| 55-366 | LOCKWASHER | 4 | ||
| 14 | 77-1369 | PULLEY - crankshaft | 1 | |
| 77-1664 | SPACER - pulley | 1 | ||
| 15 | 91-3178 | GUIDE - belt | 1 | |
| 55-4606 | SCREW - guide | 2 | ||
| 55-4638 | FLATWASHER | 2 | ||
| 55-4608 | LOCKWASHER | 2 | ||
| 55-7007 | NUT | 2 | ||
| 16 | 91-2942 | ROD - belt guide | 2 | |
| 55-7006 | NUT - rod | 2 | ||
| 17 | 77-2050 | PULLEY - crankshaft | 1 | |
| 18 | 77-1709 | SPACER - pulley | 1 | |
| 55-5575 | SCREW - pulley | 4 | ||
| 55-5411 | LOCKWASHER | 4 | ||
| 19 | 204-427 | GAUGE - belt tension | 1 |
