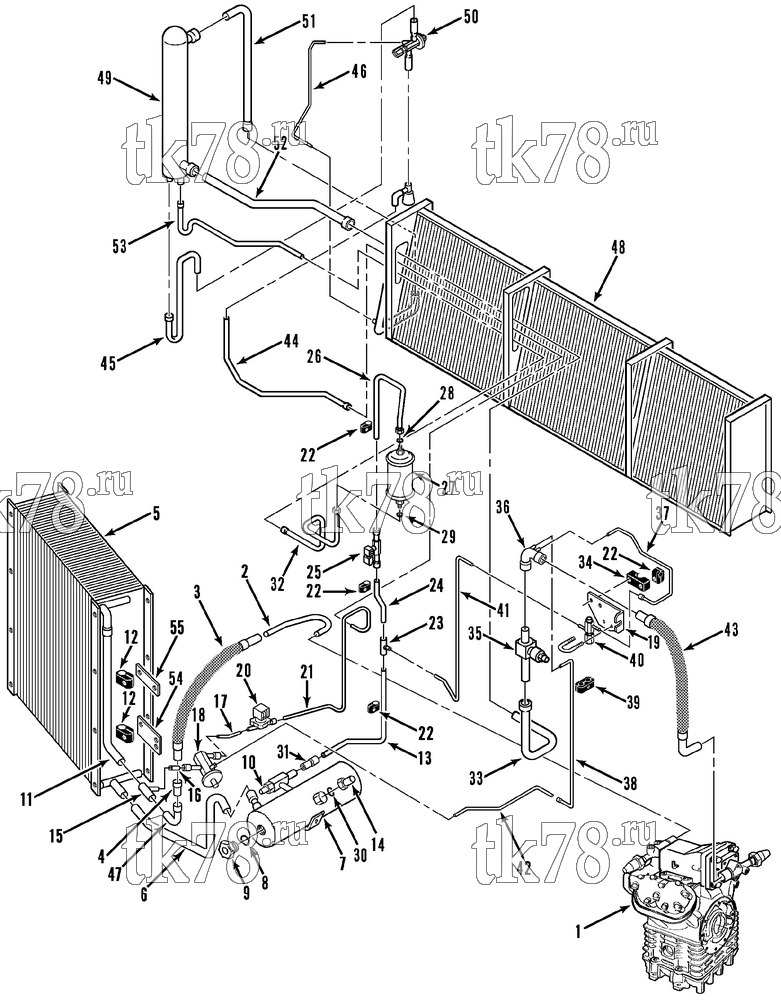

Установкa Thermo King схема REFRIGERATION COMPONENTS (11/94 & After) – 131F11
Обновление от: 1/15/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | COMPRESSOR (see 109F11) | 1 | |
| 2 | 66-6707 | TUBE - valve to vibrasorber | 1 | |
| 91-373 | CLAMP - tube (3/8 id) | 1 | ||
| 3 | 66-5784 | VIBRASORBER | 1 | |
|
10-66-5784 | Вибросорбер нагнетания, SB/SBIII/SMX/SL/SLe | 10 400 ₽ |
|
| PP-66-5784 | Вибросорбер нагнетания, SB/SBIII/SMX/SL/SLe | 6 000 ₽ |
|
|
| 4 | 66-6708 | TUBE - vibrasorber to elbow | 1 | |
| 5 | 67-1098 | COIL - condenser | 1 | |
| 55-3018 | SCREW - coil | 8 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 91-4412 | NUTSTRIP - coil | 2 | ||
| 6 | 66-8077 | TUBE - condenser to receiver | 1 | |
| 7 | 67-1276 | TANK - receiver | 1 | |
| 8 | 33-2419 | O-RING | 1 | |
| 9 | 66-9257 | BALL - sight glass | 1 | |
| 55-4931 | WASHER - special | 1 | ||
| 55-4955 | NUT - tank | 1 | ||
| 55-2969 | SCREW - tank | 1 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 55-4954 | NUT | 1 | ||
| 10 | 66-343 | CAP - valve | 1 | |
| 11 | 66-6627 | TUBE - tee condenser | 1 | |
| 12 | 91-372 | CLAMP - tube (3/4 id) | 2 | |
| 55-3675 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 13 | 66-6639 | TUBE - receiver to tee | 1 | |
| 14 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 15 | 55-3522 | TEE | 1 | |
| 16 | 66-6634 | TUBE - bypass valve | 1 | |
| 17 | 66-6631 | TUBE - valve to valve | 1 | |
| 18 | 66-6759 | VALVE - discharge bypass | 1 | |
| 19 | 91-5268 | BRACKET - discharge valve | 1 | |
| 55-5201 | U-BOLT - valve | 1 | ||
| 55-4560 | NUT - u-bolt | 2 | ||
| 55-3018 | SCREW - bracket | 2 | ||
|
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 20 | 66-6384 | VALVE - solenoid (see 116G10) | 1 | |
|
10-66-6384 | Соленоид, MD/RD-II / SB-III/ SMX/SMX-II/V-Series | 13 550 ₽ |
|
| 21 | 66-7100 | TUBE - solenoid to evaporator | 1 | |
| 22 | 55-6389 | CLAMP - tube (0.500 dia) | 8 | |
| 55-6388 | CLAMP - tube (0.375 dia) | 8 | ||
| 55-6544 | CLAMP - tube (0.200 dia) | 6 | ||
| 55-3675 | SCREW - clamp | 10 | ||
| 55-1800 | LOCKWASHER | 10 | ||
| 55-2086 | FLATWASHER | 10 | ||
| 23 | 55-6434 | TEE | 1 | |
| 24 | 66-6629 | TUBE - tee to valve | 1 | |
| 25 | 66-6102 | VALVE - solenoid (see 116G10) | 1 | |
| 26 | 66-6636 | TUBE - valve to dehydrator | 1 | |
| 27 | 61-600 | DEHYDRATOR (see 109B5) | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 6 880 ₽ |
|
| 10-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 3 420 ₽ |
|
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 090 ₽ |
|
| 28 | 33-2115 | O-RING (5/8) | 1 | |
| 29 | 33-566 | O-RING (1/2) | 1 | |
| 30 | 33-1015 | O-RING | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 31 | 66-7715 | TUBE - receiver tank | 1 | |
| 32 | 66-7363 | TUBE - dehydrator to evaporator | 1 | |
| 33 | 66-6630 | TUBE - evaporator to valve | 1 | |
| 34 | 55-6020 | CLAMP - tube | 4 | |
| 91-4613 | PLATE | 2 | ||
| 55-3344 | SCREW - clamp | 4 | ||
|
20-55-3344 | Болт | 520 ₽ |
|
| 55-1800 | LOCKWASHER | 4 | ||
| 35 | 66-7789 | VALVE - modulation (see 123A8) | 1 | |
| 36 | 66-6635 | ELBOW | 1 | |
| 37 | 66-7365 | TUBE - valve to elbow | 1 | |
| 38 | 66-6637 | TUBE - tube to elbow | 1 | |
| 39 | 55-7119 | CLAMP - tube | 4 | |
| 55-3121 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 40 | 66-7101 | VALVE - injection (desuperheater) | 1 | |
| 41 | 66-7102 | TUBE - tee to valve | 1 | |
| 42 | 66-7364 | TUBE - tube to valve | 1 | |
| 43 | 66-5717 | VIBRASORBER - suction | 1 | |
|
10-66-5717 | Трубка армированная всасывающая, Pipe Ends 29in | 32 240 ₽ |
|
| 44 | 66-6704 | TUBE - defrost | 1 | |
| 45 | 66-6705 | TUBE - liquid | 1 | |
| 46 | 66-6706 | TUBE - equalizer | 1 | |
| 47 | 66-634 | ELBOW | 1 | |
| 48 | 67-1099 | COIL - evaporator | 1 | |
| 49 | 67-1200 | HEAT EXCHANGER | 1 | |
| 50 | 66-6960 | VALVE - expansion | 1 | |
| 66-9378 | SCREEN - inlet | 1 | ||
| 66-5336 | ELEMENT | 1 | ||
| 51 | 66-6701 | TUBE - heat exchanger | 1 | |
| 52 | 66-6702 | TUBE - suction | 1 | |
| 53 | 66-6703 | TUBE - liquid | 1 | |
| 54 | 91-7335 | BRACKET - discharge (support) | 1 | |
| 55 | 91-7336 | BRACKET - discharge (angle) | 1 |
