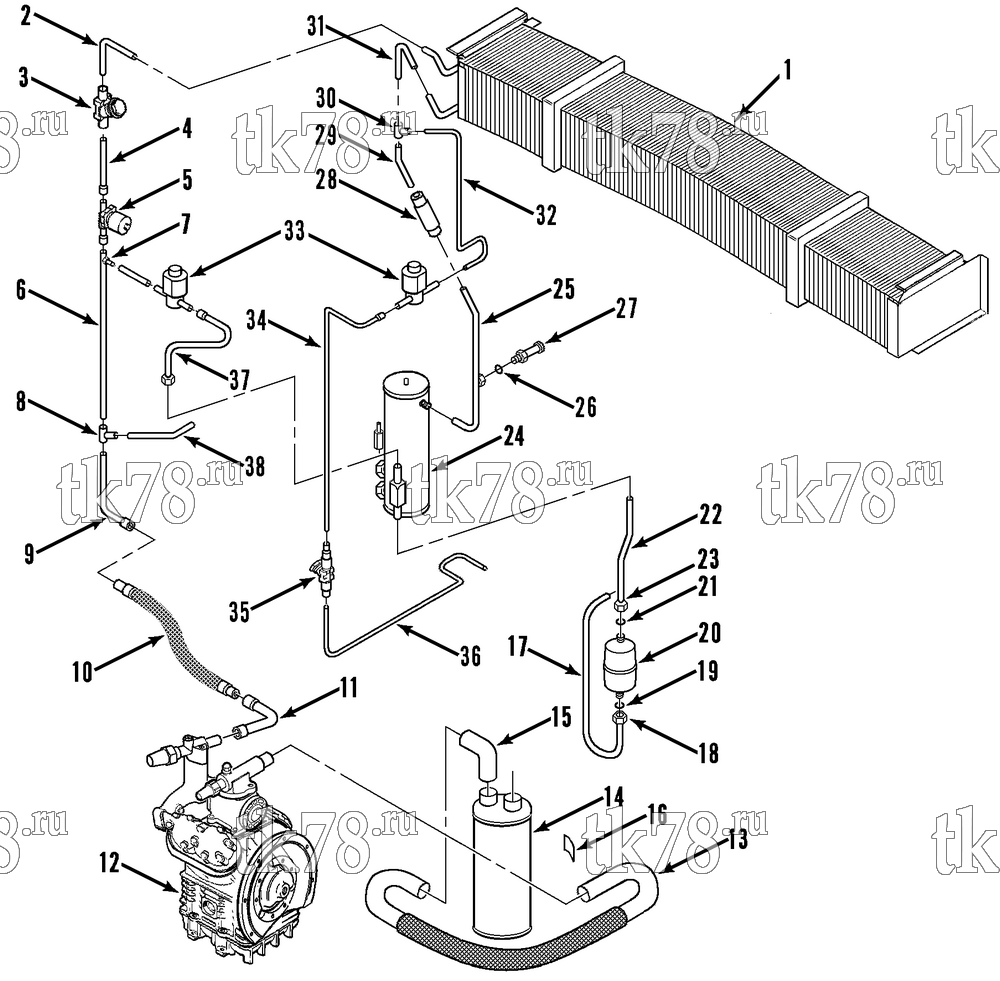

Установкa Thermo King схема REFRIGERATION COMPONENTS - CONDENSER – 129F9
Обновление от: 12/2/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1214 | COIL - condenser (see 111E12) | 1 | |
| 2 | 66-8087 | TUBE - condenser to check valve | 1 | |
| 3 | 66-6586 | VALVE - check | 1 | |
| 4 | 66-8088 | TUBE - check valve to solenoid | 1 | |
| 5 | 61-1300 | VALVE - solenoid (see 127B14) | 1 | |
|
61-1300 OEM | Клапан Ø 18мм, SB/SB-III/SMX/SMX-II/MD-II/RD-II/SL/SLX/SLXe | 41 690 ₽ |
|
| 6 | 66-8089 | TUBE - tee to solenoid valve | 1 | |
| 7 | 66-5752 | FITTING - tube | 1 | |
| 8 | 55-3518 | TEE (3/4 x 3/4 x 1/2) | 1 | |
| 9 | 66-8090 | TUBE - tee to vibrasorber | 1 | |
| 10 | 66-5784 | VIBRASORBER - discharge | 1 | |
|
10-66-5784 | Вибросорбер нагнетания, SB/SBIII/SMX/SL/SLe | 10 400 ₽ |
|
| PP-66-5784 | Вибросорбер нагнетания, SB/SBIII/SMX/SL/SLe | 6 000 ₽ |
|
|
| 11 | 66-5963 | TUBE - valve to vibrasorber | 1 | |
| 12 | NSS | COMPRESSOR - X430 (see 100C14) | 1 | |
| 13 | 66-5964 | VIBRASORBER - suction | 1 | |
|
10-66-5964 | Вибросорбер всасывания, SMX/SL/SLe | 47 990 ₽ |
|
|
PP-66-5964 | Вибросорбер всасывания, SMX/SL/SLe | 14 340 ₽ |
|
| 14 | 67-1746 | TANK - valve to vibrasorber | 1 | |
| 15 | 55-908 | ELBOW | 1 | |
| 55-5579 | SCREW - tank | 4 | ||
| 55-7072 | FLATWASHER | 6 | ||
| 55-5411 | LOCKWASHER | 2 | ||
| 55-7005 | NUT | 2 | ||
| 16 | 91-5280 | NAMEPLATE - Pressure Vessel | 1 | |
| 17 | 66-7852 | TUBE - dehydrator outlet | 1 | |
| 18 | 55-6838 | NUT - shoulder (5/8) | 1 | |
| 55-6837 | SHOULDER | 1 | ||
| 19 | 33-2115 | O-RING (5/8 id) | 1 | |
| 20 | 61-600 | DEHYDRATOR (w/ o-ring fittings, see 129A11) | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 6 880 ₽ |
|
| 10-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 3 420 ₽ |
|
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 090 ₽ |
|
| 21 | 33-566 | O-RING (1/2 od) | 1 | |
| 22 | 66-7583 | TUBE - receiver to dehydrator | 1 | |
| 23 | 55-6396 | NUT - shoulder (1/2) | 1 | |
| 55-6839 | SHOULDER | 1 | ||
| 24 | 67-1542 | TANK - receiver (see 121E13) | 1 | |
|
67-1542 OEM | Бак фреона, SL/SLe/SMX/SMX-II | 44 040 ₽ |
|
|
10-67-1542 | Бак фреона, SL/SLe/SMX/SMX-II | 9 470 ₽ |
|
| 25 | 66-8091 | TUBE - receiver to check valve | 1 | |
| 99-3060 | FITTING | 1 | ||
| 26 | 33-1015 | O-RING | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 27 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 28 | 66-5721 | VALVE - check | 1 | |
| 66-5721 OEM | Обратный клапан | 19 660 ₽ |
|
|
| 29 | 66-8092 | TUBE - check valve to tee | 1 | |
| 30 | 55-6434 | TEE (1/2 x 1/2 x 1/4) | 1 | |
| 31 | 66-8093 | TUBE - tee to condenser | 1 | |
| 32 | 66-8094 | TUBE - tee to valve | 1 | |
| 33 | 66-5908 | VALVE - pilot solenoid | 2 | |
|
10-66-5908 | Соленоид, KD-II/MD-II/RD-II/SB-III/V-Series | 28 750 ₽ |
|
| 41-1525 | COIL (12V) | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 55-8786 | NUT - valve | 1 | ||
| 34 | 66-8095 | TUBE - solenoid valve to check valve | 1 | |
| 35 | 66-3653 | VALVE - check (see 9G12) | 1 | |
|
10-66-3653 | Проверочный клапан 1/4 | 10 160 ₽ |
|
| 36 | 66-8096 | TUBE - check valve to suction | 1 | |
| 37 | 66-8097 | TUBE - solenoid to receiver tank | 1 | |
| 38 | 66-8196 | TUBE - hot gas line | 1 |
