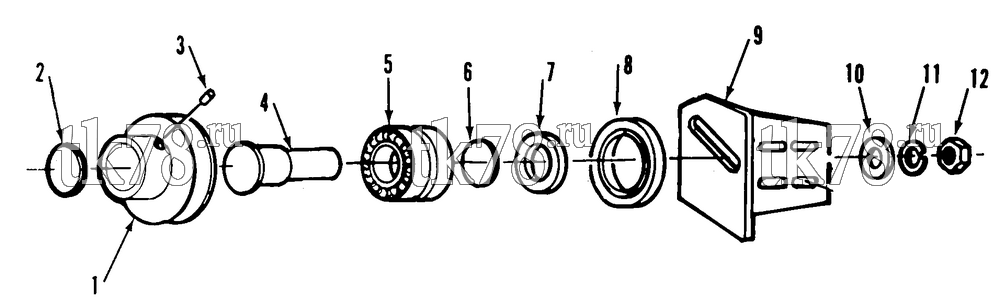

Установкa Thermo King схема IDLER PULLEY GROUP – 126D13
Обновление от: 6/1/95
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 77-2320 | PULLEY - idler | 1 | |
| 77-2321 | PULLEY (only) | 1 | ||
| 2 | 77-1093 | PLUG - expansion | 1 | |
| 3 | 55-219 | SCREW - set | 1 | |
| 4 | 77-1139 | SPINDLE - pulley | 1 | |
| 5 | 77-889 | BEARING - only | 1 | |
| 77-2389 OEM | Подшипник | 4 430 ₽ |
|
|
| 10-77-2389 | Подшипник промежуточного вала SMX / SL | 2 140 ₽ |
|
|
| 6 | 33-1162 | O-RING | 1 | |
|
10-33-1162 | Уплотнитель, Sentry, SB-I, SUPER-II | 140 ₽ |
|
| 7 | 33-1163 | RING - seal | 1 | |
| 8 | 33-1924 | SEAL - oil & grease | 1 | |
|
10-33-1924 | Сальник ролика натяжителя | 1 550 ₽ |
|
| 9 | 99-9272 | BRACKET - idler | 1 | |
| 10 | 55-8363 | WASHER - idler pulley | 1 | |
| 11 | 55-365 | LOCKWASHER | 1 | |
| 12 | 55-287 | NUT - jam | 1 |
