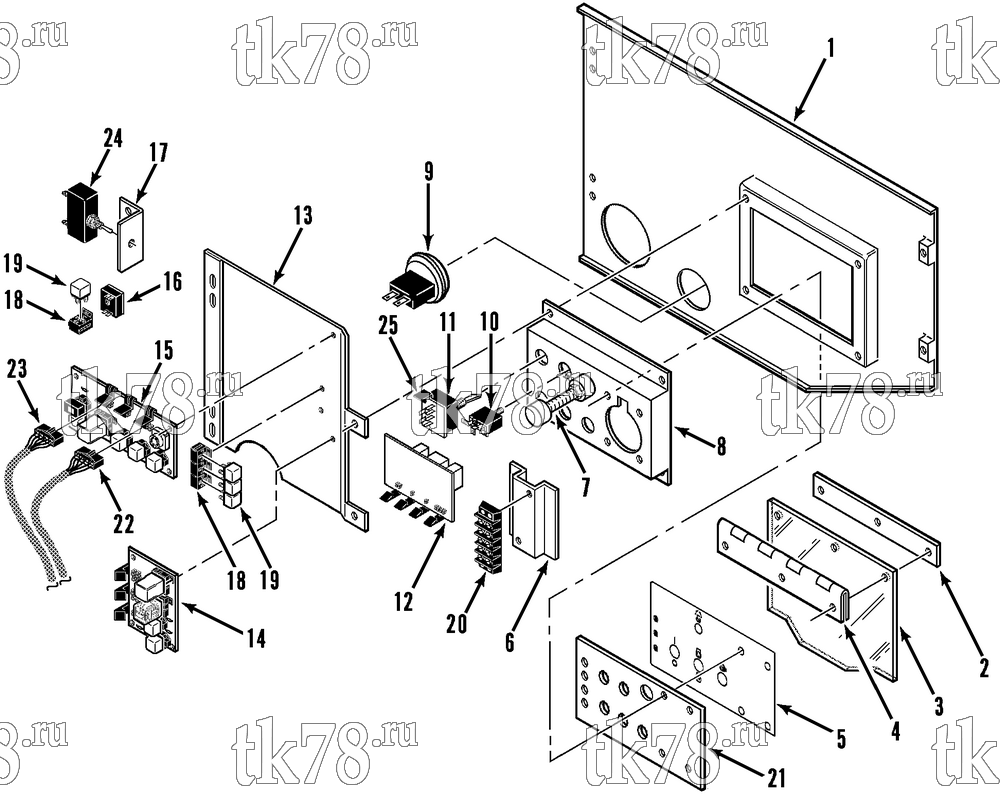

Установкa Thermo King схема CONTROL BOX COVER (UNITS w/ CAB BOXES) – 125F12
Обновление от: 12/13/00
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4142 | DOOR - control box (see 101F3) | 1 | |
| 2 | 99-9489 | PLATE - hinge | 1 | |
| 3 | 99-9486 | DOOR - thermostat | 1 | |
| 91-1106 | FASTENER - door | 1 | ||
| 91-1107 | FASTENER - panel | 1 | ||
| 4 | 99-9487 | HINGE - cover | 1 | |
| 55-5975 | SCREW - door & hinge | 5 | ||
| 55-3008 | WASHER - sealing | 3 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2996 | LOCKWASHER | 5 | ||
| 5 | 91-6539 | NAMEPLATE - panel (50s w/ cab box) | 1 | |
| 91-6538 | NAMEPLATE - panel (30s w/ cab box) | 1 | ||
| 91-5402 | NAMEPLATE - panel (50s w/ Cycle Sentry) | 1 | ||
| 91-6540 | NAMEPLATE - panel (30s w/ cab box & Cycle Sentry) | 1 | ||
| 6 | 91-3261 | PLATE - block terminal | 1 | |
| 55-2989 | SCREW - plate | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 44-5234 | SENSOR - thermostat | 1 | ||
|
10-44-5234 | Сенсор | 14 130 ₽ |
|
| 7 | 44-9260 | BUTTON - reset (50s only) | 1 | |
| 8 | 91-3826 | PANEL - switch | 1 | |
| 55-2965 | NUT - panel | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4396 | SCREW - terminals | 4 | ||
| 9 | 44-9259 | HOURMETER (analog) | 1 | |
|
10-44-9259 | Счетчик часов | 6 400 ₽ |
|
| 41-3450 | HOURMETER (digital) | 1 | ||
| 10 | 44-7774 | BREAKER - circuit | 1 | |
|
10-44-7774 | Тепловой предохранитель, SB-I/II/III / SMX | 12 430 ₽ |
|
| 44-8688 | BOOT | 1 | ||
| 11 | 44-8464 | BOARD - Cycle Sentry switch | 1 | |
| 12 | 44-9003 | BOARD - switch (see 88E10) | 1 | |
| 55-2965 | NUT - board | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 13 | 91-6602 | BRACKET - pc board | 1 | |
| 14 | 44-9333 | BOARD - relay (see 92D12) | 1 | |
| 55-2989 | SCREW - board | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 15 | 44-9865 | BOARD - option (Cycle Sentry & cab box, see 102A1) | 1 | |
| 16 | 44-8162 | TIMER - heater initiation | 1 | |
| 55-2965 | NUT - timer | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-2201 | FLATWASHER | 1 | ||
| 17 | 91-5357 | BRACKET - circuit breaker | 1 | |
| 55-5974 | SCREW - bracket | 1 | ||
| 55-3800 | LOCKWASHER | 1 | ||
| 55-2201 | FLATWASHER | 1 | ||
| 18 | 44-5537 | SOCKET - relay | 4 | |
| 55-2965 | NUT - socket | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 19 | 44-9111 | RELAY - mini (plug-in) | 4 | |
|
10-44-9111 | Реле | 1 310 ₽ |
|
| 20 | 44-4186 | BOARD - terminal | 1 | |
| 55-2202 | LOCKWASHER | 2 | ||
| 55-4223 | NUT | 4 | ||
| 21 | 91-3825 | PANEL - switch | 1 | |
| 22 | 44-9209 | HARNESS - option | 1 | |
| 23 | 44-9278 | HARNESS - auto start | 1 | |
| 55-3443 | SCREW - board | 6 | ||
| 55-3800 | LOCKWASHER | 6 | ||
| 55-2201 | FLATWASHER | 6 | ||
| 24 | 44-6557 | BREAKER - circuit | 1 | |
| 99-7642 | NAMEPLATE - On/Off | 1 | ||
| 25 | 91-1277 | RETAINER - harness connector | 3 |
